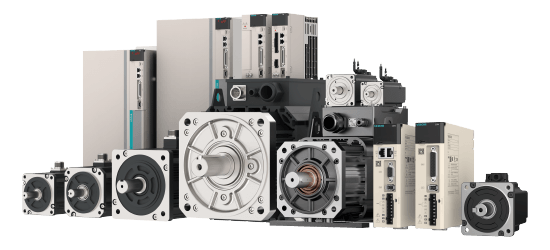

VEICHI Servo System

High Response, Precise Locating, Stable & Efficient

VEICHI SERVO SYSTEM FEATURES

3KHz speed loop response bandwidth

The unique current algorithm can effectively improve the speed loop bandwidth which can greatly reduce the adjusting time and improve production efficiency. The fastest adjusting time can reach 1ms.

Support full closed loop mode

The full closed loop mode supports external second encoder or grating ruler to reduce mechanical transmission gaps and increase the actual positioning accuracy.

24-bit absolute encoder

Use the industrial top level 24-bit absolute encoder which single loop is up to 16,777,216 pulses and communication speed is up to 4Mpps. It can achieve more accurate positioning, more stability at low speed and no loss under power failure.

Low frequency vibration suppression function

The vibration filter can be set manually or automatically via the upper machine softwares to effectively eliminate the inherent vi-bration frequency, greatly reduce the stop axis jitter(sloshing) and effectively suppress vibration in 0~100Hz frequency.

Robust control

Adopt latest control theory algorithm to achieve load rotating inertia within 30 times (even load changes during processing). It can ensure stable operation without parameter adjustment and can be used after installation.

Auto set notch filter

There is no need to do complex vibration frequency measurement and analysis. The notch filter is quickly searched and automatically set through the single parameter adjustment function of the upper machine. It features easy to use,and the shortest time is within 70ms. It can greatly reduce the noise and vibration due to the equipment mechanical resonance so as to achieve more rapid response operation.

Support multiple communication protocols

Support multiple communication protocols: Modbus, CANopen, EtherCAT, RS485, Profinet, MechatroLink II, MechatroLink III, etc;

Motor miniaturization and high dynamic performance

Adopt the latest manufacturing techniques to optimize magnetic circuit design and reduce magnetic loss, achieving motor high dynamic response performances. Besides, the motor volume is reduced by 20%.

Intelligent setting

Automatic gain adjustment, guided setting mode,and sequential setting can complete servo gain settings, which is easy to use. It also provides more adjustment modes, which can be adjusted according to different mechanical structure and technological characteristics, so that the machine can reach the optimum state.

Powerful PC software

Debugging software free of installation. The USB communication between the drive and computer is simple and easy to use.

FEATURED PRODUCTS

VEICHI servo system can provide high performance, high reliability, high quality, and cost-effective products to meet a variety of industrial environments and critical system applications and achieve the perfect combination of servo and program.

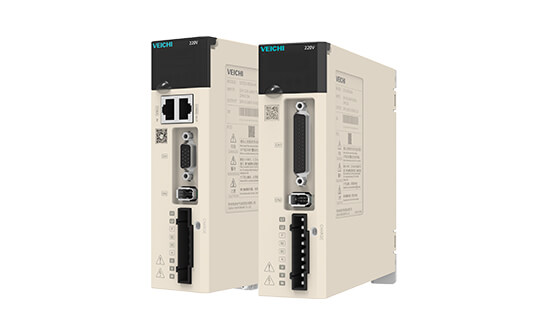

SD700 Servo Drive
SD700 Servo Motor Controller
SD700 AC Servo Drive
SD700 AC Servo Motor Drive
SD700 Servo Motor System
SD700 AC Servo Motor Controller
SD700 Servo Driver
SD700 Servo Motor Controller
SD700 AC Servo Drive
SD700 AC Servo Motor Drive
SD700 Servo System
SD700 AC Servo Motor Controller
SD700 Servo System

• 3KHz speed loop response bandwidth;

• 17bit, 23bit, 24bit encoder;

• Compatible with EtherCAT, PROFINET, CANOpen, RS-485, and MECHATROLINK-II/III;

• ECAM; Full closed loop model; Low frequency vibration suppression;

• Robust control; Auto set notch filter; AI setting;

• Speed observer; STO (optional);

• Voltage: 1 Phase 220V, 3 Phase 220V - 400V;

• Power: 0.1kW - 55kW, customized up to 250kW;

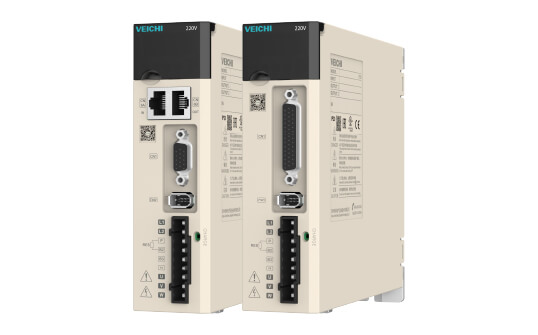

SD780 Servo Drive

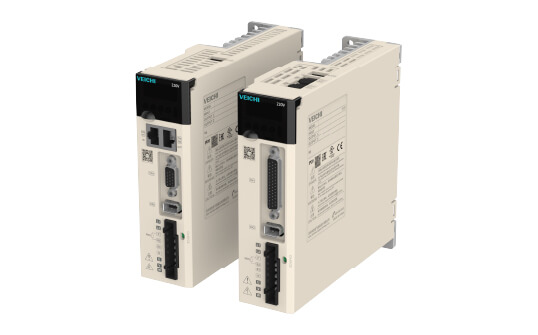

SD780 Servo Motor Controller
SD780 AC Servo Drive

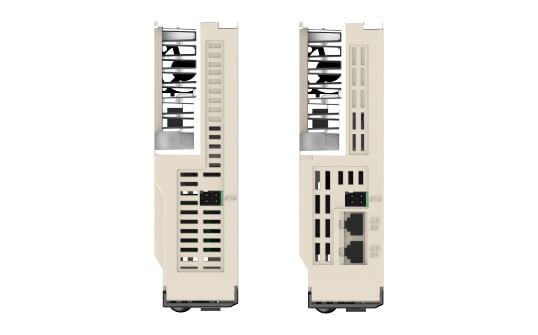

SD780 AC Servo Motor Drive
SD780 Servo Motor System
SD780 Servo Driver
SD780 Servo Motor Controller
SD780 AC Servo Drive
SD780 AC Servo Motor Drive
SD780 Servo Motor System

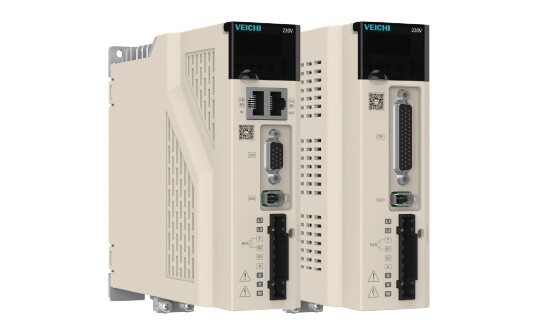

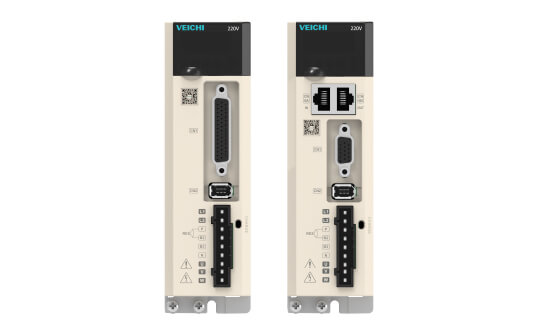

SD780 Servo Drive

• UL, CE Certification;

• STO SIL3 safety certification for failsafe operation;

• Multi-protocol support of CANopen and EtherCAT for flexible PLC system integration;

• High-performance V7U motor with IP67 protection, featuring 5°C~10°C lower temperature rise and shaft runout accuracy up to 0.02mm;

• Simple and practical selection software;

• Easy to debug and install;

• Book design, compact size;

• Power: 100W - 1kW;

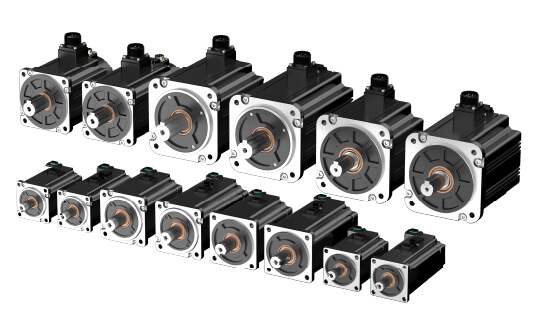

V9E Servo Motor 1

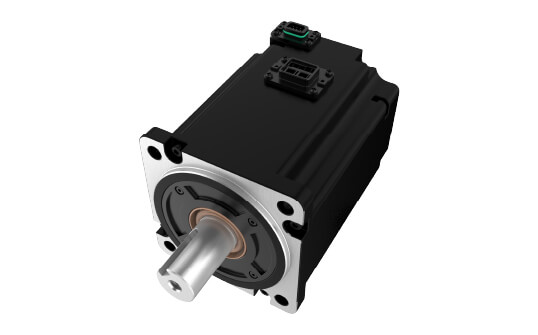

V9E Servo Motor 2

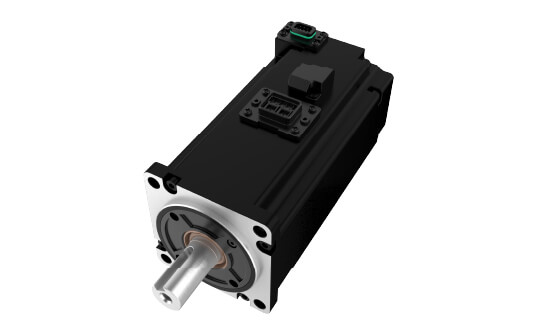

V9E Servo Motor 3
V9E Servo Motor 4
V9E Servo Motor 5
V9E Servo Motor 1
V9E Servo Motor 2
V9E Servo Motor 3
V9E Servo Motor 4
V9E Servo Motor 5

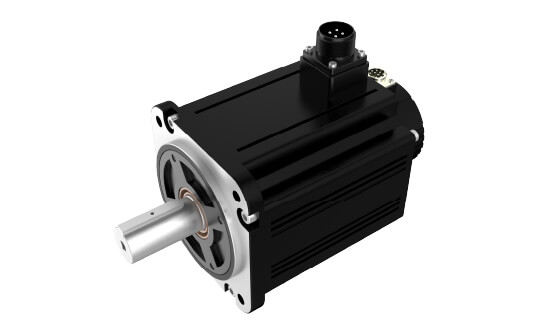

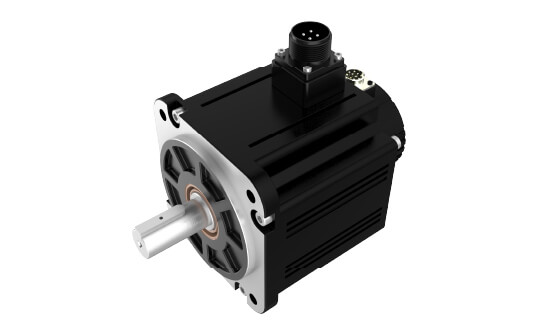

V9E Servo Motor

• Higher protection: IP67;

• More models, low-inertia 60/80/100/130 mm flange added;

• Wider speeds, enhanced motor speed for higher working efficiency;

• Smaller sizes, length shorted by 3-5%;

• Superior position accuracy;

• Better performance, reduced 2-4℃;

• Low energy, meets Class 1 requirements of GB30253;

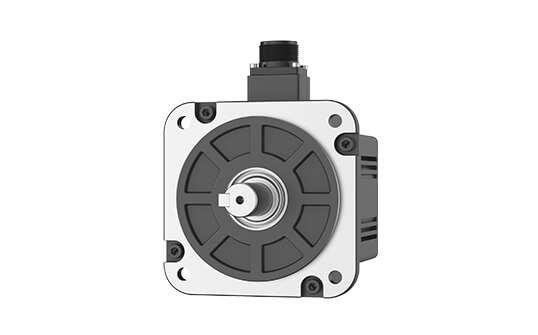

VM7 Servo Motor
VM7 Servo Motor 2
VM7 Servo Motor 3
VM7 Servo Motor 4
VM7 Servo Motor 5
VM7 Servo Motor
VM7 Servo Motor 2
VM7 Servo Motor 3
VM7 Servo Motor 4
VM7 Servo Motor 5
VM7 Series Servo Motor

• High speed up to 6000rpm;

• 3-4 times overload capacity;

• Reduce volume by more than 20%;

• Protection level IP67;

• 17bit, 23bit, 24bit encoder;

• Low inertia, Medium inertia, High inertia;

• Flange 40mm～260mm, Customized the higher flange;

• 1500rpm, 2000rpm, 2500rpm, 3000rpm;

• 0.1kW～55kW, customized up to 250kW;

PRODUCT INQUIRY

If you have any enquiry about quotation or cooperation, please feel free to email us at overseas@veichi com or use the following enquiry form. Our sales representative will contact you within 24 hours.
* Name
*
* Country
*
* Company
*
* Email
*
Tel / Whatsapp
Website URL
Inquiry Detail

Industrial Applications for VEICHI Servo Systems

Used in dozens of fields such as CNC Machine, Industrial Robot, Packaging Machine & Printing Machine, Textile Industry, etc. Please click the pictures below to view the application videos.
CNC Machine
Industrial Robot
Packaging & Printing
Textile Industry
Wood & Marble Industry
Logistics automation

Why Choose VEICHI ELECTRIC

VEICHI ELECTRIC (Stock Code: 688698) products have superior performance, strong reliability, and have been widely used in China and other countries in Asia, Africa, America, Europe, and won the user high praise from users.
VEICHI Quality
* Select high standard materials;
* Strict control of production process;
* Get unanimous praise from users;
Factory Show
* 1,900+ Employees;
* 2M+ Units Annual Capacity;
* 20+ years of production experience;
R&D System
* 660+ R&D Engineers;
* Specialized labs;
* R&D personal at 35% of total workforce;
Company Honor
* Top Servo System Manufacturer in China;
* 230+ Patents;
* TUV CE UL ISO Certification;
Prompt Delivery
* Manufacture and quality control;
* Abundant stock, quick-response delivery;
* 1 to 2 Weeks Lead Time;
After Service
* Technical Support in 58 Countries Worldwide;
* Regular visits, regular maintenance;
* 7/24 Technical Support;
Our Advantage

* China Public Company

* Factory sold directly

* Support OEM / ODM

* Abundant stock, quick-response delivery

* TUV CE UL ISO Certification

FREQUENTLY ASKED QUESTIONS

A: A servomotor is a rotary actuator or linear actuator that allows for precise control of angular or linear position, velocity and acceleration. It consists of a suitable motor coupled to a sensor for position feedback.Look More

A: Please directly provide voltage, power, torque, inertia, running speed, encoder type, braking type, etc and usage occasion or our models.

A: All of our products adopt the full inspection and full test mode to ensure that each manufactured product is qualified.

A: Generally it is 5-10 working days if the goods are in stock. or it is 15-20 working days if the goods are not in stock, it is according to quantity.
