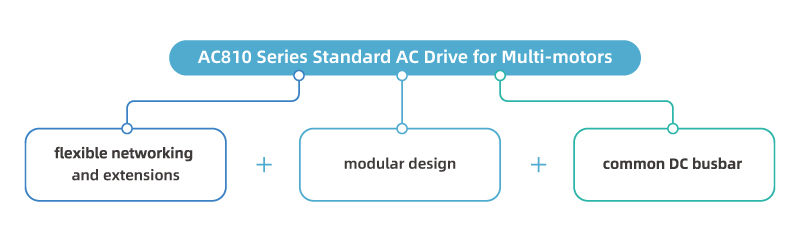

AC810 Standard AC Drive for Multi-motors
- Flexible networking and extensions.
- Modular design.
- Common DC busbar.
Catalogue
Contact support
EmailAC810 Series Standard AC drive for Multi-motors Overview
AC810 series are high-performance, high-end AC drive manufactured by Veichi Electric on years of technical accumulation and in-depth market research & demand analysis. Features like favorable control performance and flexible networking and expansion, modular design and common DC bus solution, safety and stability etc., all together guarantee solid drive core of energy saving and emission reduction, and meet the diversified needs on frequency conversion functions for industrial enterprises.
Product Features
Flexible Networking and Extensions
Net multiple protocols
- Modbus-RTU protocol: maximum baud rate 115200, 128 nodes, maximum distance 1000m.
- (optional for different models): 12M rate, 32 nodes, maximum distance 100m.
- Profinet protocol.
- CANopen protocol: 1M rate, 64 nodes, maximum distance 40m.
Extension functions supported
Encoder extension: TTL, HTL, UVW, Sin/Cos, Resolver.
Bus extension: CANopen, Modbus-RTU, Profibus-DP, PROFINET.
- Extend functions according to actual needs.
- Extension cards of encoders supported.
- Bus extension implemented on different models.
Modularized design & common DC bus solution
Modularized design
- Filter, rectifier, AC drive, braking and buffer all designed into independent and standard modules configured flexibly according to motor power.
- Book-like appearance design saving 30% space thus easier for cabinet layout.
- Standard design for volume production & delivery.
Common DC bus solution
- Energy from power generation and electricity between the AC drive modules can be exchanged through the common DC bus and saved 5%-30% off when feedback.
- Load lowering or crimping/unwinding.
- Rectifier module and brake module current are effectively reduced and so as system capacity.
- Unified power supply by rectifier unit reduces the main circuit switch and brake unit consumption.
- Difficulty and consumption of electric control system wiring is lowered to save cost.
Name Rules
Product Classification
The Application of AC800 Series Engineering Multi-drive Inverter
Post metallurgical processing: for corollary equipment of acid washing, annealing, galvanizing，color coating etc.
Metal processing: for corollary equipment of wire drawing and annealing furnace etc.
Paper making: for corollary equipment on paper production lines like coating, rewinding and corrugated paper making.
Textiles: for corollary equipment like stenters during printing and dyeing, and other machines dealing with chemical fiber.
Printing and packaging: for corollary equipment like photogravure presses and sheetfed offset presses.
Automated production line: for corollary equipment of coir matting and foods etc.
Specifications
| Grid voltage | rectifier unit: three-phase 380V~480V：（-15% ～ +10%） converter unit: three-phase 380V~480V：（-15%~+10%） |
|---|---|
| Power range | rectifier unit：22kW、45kW、110kW、160kW converter unit(single-shaft)：1.5kW ~ 75kW |
| Grid type | TN、TT、IT star-connected gird |
| Input voltage | 537Vdc ~ 679Vdc（running range：350Vdc ~ 800Vdc） |
| Input frequency | rectifier unit：50Hz/60Hz（47Hz~63Hz） converter unit：0 ~ 500Hz digital setting ：0.01Hz analog setting: maximum frequency × 0.025% |
| Carrier frequency | VF control： 0.8kHz ~ 12kHz vector control：2kHz ~ 6kHz auto carrier frequency adjustment based on cooler temperature |
| Output frequency | VF control：0 ~ 500Hz vector control：0 ~ 500Hz |
| Braking | realized via extended braking module and braking resistance |
| Motor type and control method |
three-phase asynchronous motor: VF control, vector control with/without PG permanent magnet synchronous motor: vector control with/without PG |
| Speed range | 1：50（(asynchronous motor VF control） 1：100（asynchronous vector control without PG） 1：1000（asynchronous vector control with PG） |
| Speed control accuracy |
±1.0%（VF control） ±0.5%（vector control without PG） ±0.02%（vector control with PG） |
| Speed fluctuation | ± 0.5%（vector control without PG） ± 0.2%（a vector control with PG） |
| Torque response | <20ms（vector control without PG） <5ms（vector control with PG） |
| Torque control accuracy | ± 5%（vector control without PG）（10Hz 以上） ± 3%（vector control with PG） |
| Torque control mode | vector control with/without PG |
| Overload capability | 115% for an hour；150% for one minute；178% for two seconds |
| Torque boost | auto torque boost & manual boost by 0.1%~30.0% |
| VF curve | five methods: linear VF; multipoint VF; VF squared; complete VF separation; incomplete VF separation |
Downloads
| File Name | Type | Language | File Type | Update | Download |
|---|---|---|---|---|---|
| AC810 Standard AC Drive for Multi-motors Catalog | Catalog | English | 2024-06-28 | 4.89MB |
