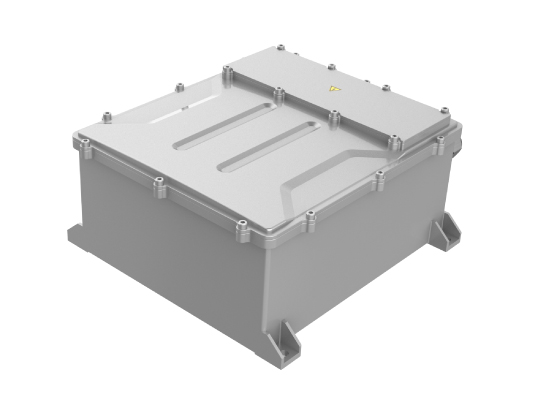

EV100 Electric Vehicle Motor Controller

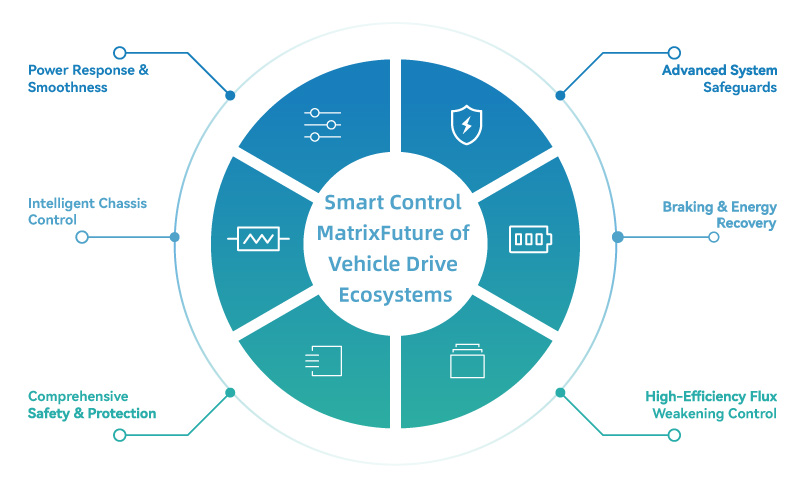

Product Features

1. Universal Motor & Encoder Compatibility

Compatible with PMSM, induction motors, and BLDC motors, and supports A/B photoelectric encoders, magnetic encoders, and resolver encoders for highly flexible configuration.

2. Intelligent Bus Control

Enables system control and data communication via CAN, RS485, and optional Bluetooth connectivity.

3. 4WD and Safety Enhancement

• Features built-in electronic differential algorithms, allowing easy implementation of four-wheel drive without an external VCU.
• Integrated anti-rollback and hill descent control significantly improve driving safety in complex road conditions.

4. Exclusive High-Speed E-Motorcycle Feature

Includes a unique jump mode for high-speed electric motorcycles, enhancing off-road driving fun and dynamic performance.

5. Customization and Expansion Support

Supports CAN protocol customization to adapt to third-party communication systems, and offers hardware/software function tailoring to meet differentiated needs.

6. Remote Maintenance and Updates

Optional GPRS module enables remote debugging and OTA upgrades, providing users with a more convenient ongoing maintenance experience.

Naming Rules

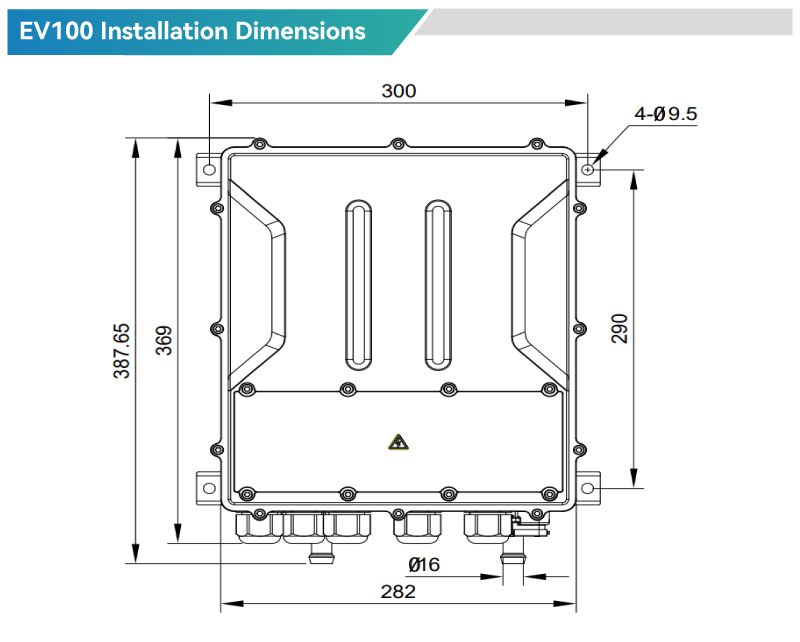

Installation Dimensions

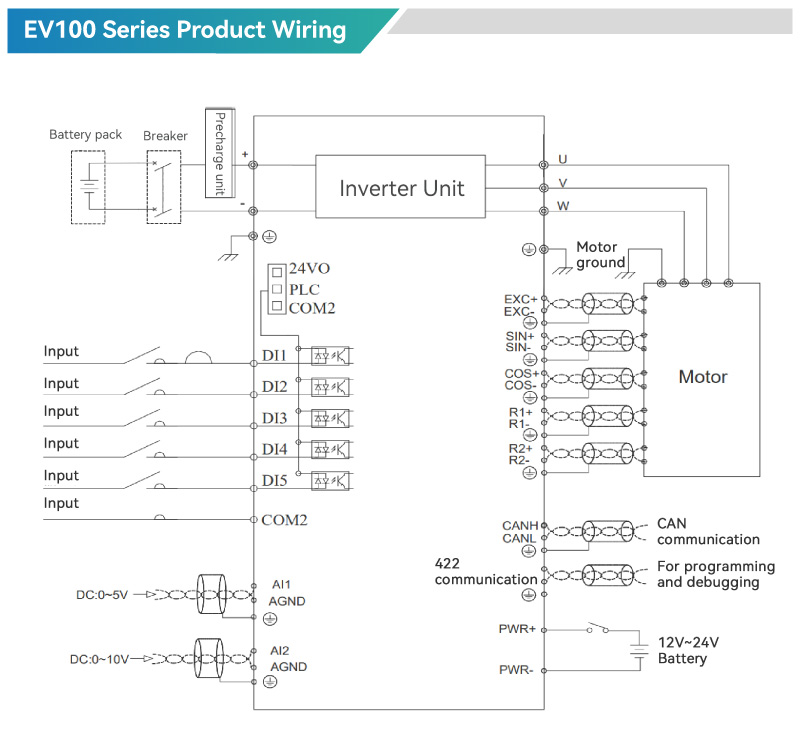

Product Wiring

Main Terminal Functions

• 7×DI (NPN/PNP Switchable)
• 1×DO (Open Collector)
• 2×AI (0V~5V, 0V~10V)
• 1×CANopen, 1×RS-422 (For Host Debugging)
• 2×Temperature Sensor Input (NTC/KTY84/PT100/PT1000)
• Resolver Encoder Supported
• IP67, Liquid-Cooled

Application

Mini vehicles, logistics vehicles, municipal sanitation vehicles, electric boat.
