SD650 Servo Drive for Electro Hydraulic Control System
- Built-in CAN communication, RS485 communication function
- Support single, double and multiple electro hydraulic pump system
- Support a variety of signal reference modes
- Make the electro hydraulic system more energy-saving
Catalogue
Contact support
EmailSD650 servo drive for Electro Hydraulic Control System Overview
The SD650 electro-hydraulic servo driver enables the output of the system to change automatically, quickly, and accurately following the change of the input. Moreover, the output power is greatly amplified, and the electro-hydraulic Servo System integrates the advantages of both electric and hydraulic.
1. Built-in brake unit, safety comes with you.
2. Strong overload capacity, stable under high load conditions.
3. Forced air cooling, intelligent temperature control, cooling to the end.
4. A variety of protection functions escort VEICHI electro-hydraulic drives.
5. AC220V/380V/480V multiple types to choose from, adapt to a variety of electrical environments.
6. Pressure and flow double closed loop, vector weakening PID, fast response, and accurate control coexist.
7. Built-in CAN, RS485 multiple communication, easy to achieve multi-pump fusion.
8. Dark gray metal shell, external terminal panel, set convenience, safety, and beauty in one.
Metal appearance, external terminals, beautiful and practical
1. Dark gray metal appearance, calm atmosphere and connotation.
2. The external terminal panel makes wiring more convenient and faster.
3. Isolated terminal interface, input, and output are safe and reliable.
High efficiency and energy saving, for you to increase income and reduce expenditure.
1. Pressure and flow double closed-loop control, the oil circuit is supplied on demand.
2. Eliminate high-pressure overflow, reduce waste, and save energy 20%-80%.
3. Reduce the number of hydraulic oil cycles and minimize oil temperature.
Precise closed-loop control, fast but stable
1. PID closed-loop control improves pressure stability, and the fluctuation is less than 1%.
2. The pressure response is fast, and the response time is 20ms.
3. Cooperate with vector and field weakening control mode, bring high repeat accuracy.
Multiple communication protocols, easy to achieve multi-pump confluence
1. Built-in CAN and 485 communication methods to realize confluence and shunt switching control.
2. The communication is fast and accurate, and the working master pump and the slave pump are seamlessly connected.
3. Cooperate with an electromagnetic reversing valve to switch to an independent system.

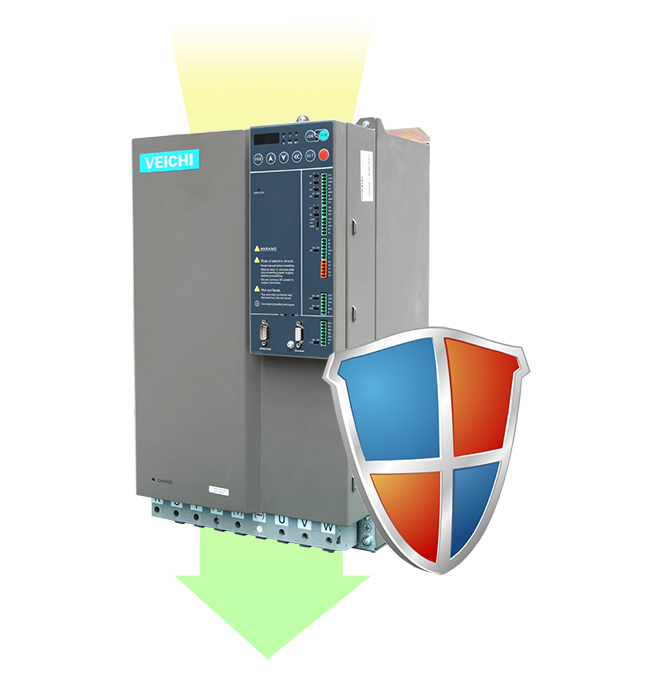

Multiple protection and double cooling, escort SD650
1. It has multiple protection functions such as phase loss, short circuit, and overheat detection.
2. Professional heat dissipation air duct design can operate well in harsh environments such as oily smoke.
3. The built-in braking unit, slow down and reach home safely.
Different power and voltage options, there is always one suitable for you
1. The voltage levels are AC220V/380V/480V, which is suitable for a variety of electrical environments.
2. Various specifications and models, power range from 0.75Kw-110Kw.
3. VEICHI SD650 series drivers can drive permanent magnet synchronous motors.
SD650 Servo Drive for Electro Hydraulic Control System Video
Industrial Applications for SD650 Servo Drive for Electro Hydraulic Control System
Applications：Injection molding machine, machine tools, metallurgy, construction machinery, agricultural machinery, automobile industry, textile industry, etc.
Specifications
| Power range | 4,400 W-35,000 W |
|---|
| Voltage and frequency | Three-phase 380V 50/60HZ |
|---|---|
| Allowable fluctuation range | Voltage: ±15%; frequency fluctuation: ±5% Distortion rate: meet the requirements of IEC 61800-2 |
| Closing impulse current | Less than rated current |
| Drive efficiency | ≥96% |
| Power factor | ≥0.94（With DC reactor） |
| The output voltage | Output under rated conditions: 3-phase, 0~input voltage, error less than 5% |
|---|---|
| Output frequency range | Maximum output frequency: 320HZ |
| Output speed accuracy | ±0.1% |
| Overload capacity | 150% rated current 60s, 180% rated current 5s, maximum 2.5 times |
| Modulation | SVPWM |
| Carrier frequency range | 2.0~8.0kHz（Model determination） |
| Digital setting | maximum speed×±0.01% |
| Analog setting | maximum frequency×±0.2% |
| Speed resolution | Digital setting: 1rpm Analog setting: maximum speed×0.05% |
| Acceleration and deceleration curve | Linear acceleration and deceleration, S curve acceleration and deceleration |
| Automatic energy saving operation | According to the load condition, the output voltage is automatically optimized to realize energy-saving operation |
| Automatic current limit | Automatically limit the current during operation to prevent frequent over-current fault trips |
| Standard function | Oil pressure closed loop control, speed control, RS485, analog output |
| Speed setting channel | Keyboard digital setting, analog voltage/current terminal AI1, analog voltage/current terminal AI2, analog voltage/current terminal P-AI, communication setting and multi-channel terminal selection, combination of main and auxiliary channels. |
| Feedback input channel | Voltage/current terminal AI1, voltage/current terminal AI2, voltage/current terminal P-AI, communication setting |
| Run command channel | Operation panel setting, external terminal setting, communication setting |
| Input command signal | Start, stop, forward and reverse rotation, jog, multi-speed, free stop, reset, acceleration and deceleration time selection, speed setting channel selection, external fault alarm |
| External output signal | 2 relay outputs; 1 transistor output; 2 analog outputs, voltage output range: 0~10V/0~10V, current output range: 0~20mA/0~20mA |
| Protective function | Overvoltage, undervoltage, current limit, overcurrent, overload, overheating, data protection |
|---|
| LED display | Single line 5-digit digital tube display: Can monitor 1 status |
|---|---|
| Status monitoring | Pressure command, pressure feedback, speed setting, speed feedback, flow command, output current, output voltage, output torque, output power, bus voltage, module temperature, motor temperature, input terminal X connected state, output terminal Y connected Status etc. |
| Error alarm | Self-learning abnormality, sensor feedback disconnection, motor overheating, driver overheating, encoder failure, communication failure, overvoltage, undervoltage, overcurrent, short circuit,Phase loss, overload, stall, current limit, data protection damaged, current fault operating status, historical fault. |
| Installation site | Indoor, the altitude is not more than 1000m, no corrosive gas and direct sunlight |
|---|---|
| Temperature and humidity | From -10°C to +40°C 20%—95%RH（No condensation） |
| vibration | Less than 0.5g |
| Storage temperature | From -25℃ to +60℃ |
| Installation method | Wall-mounted, vertical cabinet |
| Protection level | IP20 |
| Cooling method | Forced air cooling, liquid cooling |
Downloads
| File Name | Type | Language | File Type | Update | Download |
|---|---|---|---|---|---|
| Electro Hydraulic Servo Drive Catalog V1.0 | Catalog | English | 2022-03-29 | 20.3MB | |
| CE (EMC) of SD650 Hydraulic Servo | Certificate | English | 2024-08-06 | 100KB | |
| CE (LVD) of SD650 Hydraulic Servo | Certificate | English | 2024-08-06 | 100KB | |
| CE (EMC) of SD650 Servo Drive | Certificate | English | 2018-03-06 | 626KB | |
| CE (LVD) of SD650 Servo Drive | Certificate | English | 2018-03-06 | 626KB | |
| SD650 Series Electro Hydraulic Servo Drive Manual | Manual | English | 2018-03-13 | 2.37MB | |
| AC Drive PC Software V1.0 | Software | English | ZIP | 2024-02-20 | 46.5MB |
