  1. Home > Product > Solar Pump System > Accessories > SI-GD004-20/30 Series Solar Fast Shutoffs

SI-GD004-20/30 Series Solar Fast Shutoffs

  • Low loss.
  • High efficiency.
  • Stable and reliable.
Catalogue Contact support Email
  • Features
  • Specifications
  • Downloads
  • Solutions
  • Cases
  • News
  • Related Products
  • Additional Information

Product Overview

The core equipment in the fast shutdown solution can be connected with individual modules to realize group-level fast shutdown function and achieve the purpose of safe and stable operation of solar power generation system. Low loss, high efficiency, stable and reliable, can effectively ensure the safe operation  of the solar system.

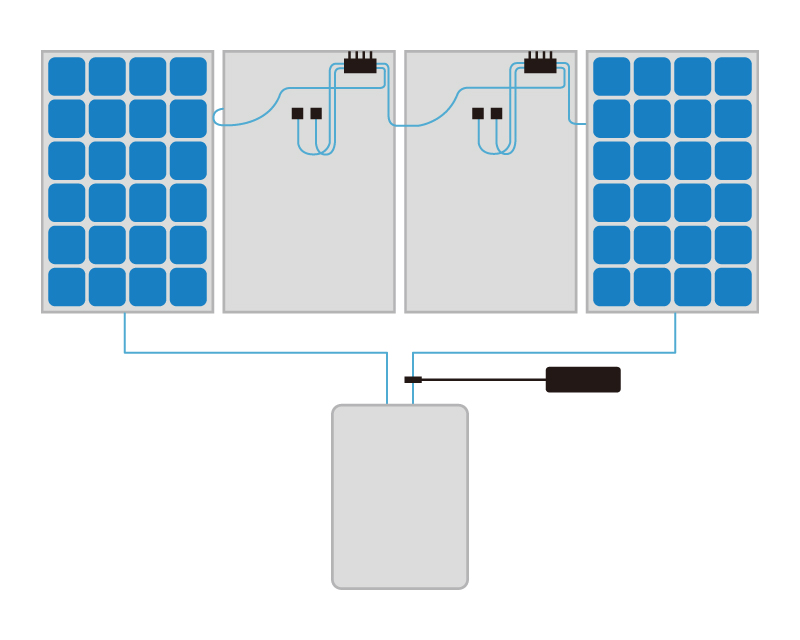

Wiring of SI-GD004-2030 Solar Fast Shutoffs.jpg

Specifications


Max. system voltage 1000V (1500V Optional)
Input Voltage 12~80V
Max. output current 20A
Max. short-circuit current 25A
Shutdown Output Voltage 1V@10mA
Static power dissipation 200mW
Efficiency 99.90%
Maximum power 700W
Input Cable Length 0.5m
Output cable length 1.2m
Dimension 120*77*17mm
Operating temperature -40℃~+85℃
Protection class IP68
Operating temperature -40℃～＋85℃
Connector Type MC4 or MC4 Compatible
Service life 25 Years
