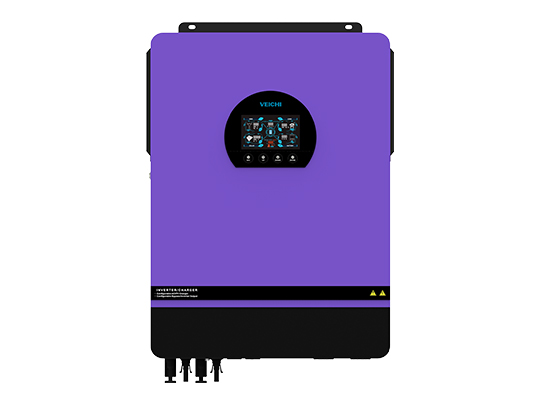

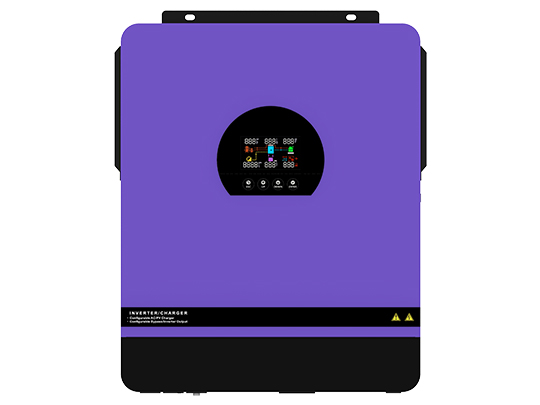

SISV Series 4.2kW/6.2kW/8.2kW/10.2kW Hybrid Solar Inverter
- Pure sine wave output.
- Three type of charging mode.
- Two type of AC output mode.
- Works with or without battery.
Features
- Features
- Specifications
- Downloads
- Solutions
- Cases
- News
- Related Products
- Additional Information
SISV Series 4.2kW/6.2kW/8.2kW/10.2kW Hybrid Solar Inverter Overview
SISV Series 4.2kW/6.2kW/8.2kW/10.2kW hybrid solar inverter is suitable for the household photovoltaic energy storage system. DC power generated by solar panels is stored in the battery through the inverter. When electricity is needed, it is first supplied by solar panels. If the light intensity cannot support the operation of solar panels, the inverter will convert the DC power of the battery into a single-phase power for home load. If the battery power is not enough, it can be quickly switched to power grid to supply power.
SISV Series 4.2kW/6.2kW/8.2kW/10.2kW hybrid solar inverter has a colored LCD and a variety of communication functions. It can be remotely operated through the mobile phone APP, which is convenient and fast. It can output pure sine wave, run stable and reliable. Replaceable fan design enables customers to maintain safety and convenience.
Hybrid Solar Inverter Topology
SISV Series 4.2kW/6.2kW/8.2kW/10.2kW Hybrid Solar Inverter Advantages
-
Energy Independence: One of the primary advantages of hybrid solar inverters is that they allow homeowners and businesses to reduce their dependence on the grid. By storing excess solar energy in batteries, users can have access to electricity even during power outages or at night when the sun is not shining.
Dual Output
This series hybrid solar inverter includes two built-in AC output ports, capable of simultaneously supplying power to two application systems. You can configure priority settings, adjust daily usage schedules, and enable automatic power disconnection and reconnection. -
Maximizing Self-Consumption: Hybrid inverters are designed to optimize self-consumption of solar energy. They prioritize using solar power generated on-site before drawing electricity from the grid, which can lead to significant energy cost savings.
-
Time-of-Use Optimization: Many regions have time-of-use (TOU) electricity pricing, where electricity costs more during peak hours. Hybrid inverters can be programmed to use stored energy during peak hours, further reducing electricity costs.
-
Grid Stabilization: Hybrid solar inverters can provide grid stabilization services, such as voltage and frequency regulation. This can be beneficial for areas with unstable or unreliable grid connections, helping to maintain a consistent power supply.
-
Backup Power: When integrated with a battery storage system, hybrid inverters can provide backup power during grid outages. This is particularly important for critical applications like healthcare facilities, data centers, and homes with medical devices that require continuous power.
-
Scalability: Hybrid solar inverters are often modular and can be easily expanded by adding more solar panels or batteries. This allows users to start with a smaller system and gradually scale up to meet their energy needs.
-
Efficient Energy Conversion: Hybrid inverters are designed for high efficiency, which means they can convert a higher percentage of solar energy into usable electricity. This efficiency is important for reducing energy losses and maximizing the return on investment.
-
Remote Monitoring and Control: Many hybrid inverters come with advanced monitoring and control capabilities that allow users to remotely monitor their solar power system's performance and adjust settings as needed through smartphone apps or web interfaces.
-
Environmental Benefits: By reducing reliance on fossil fuels and optimizing energy usage, hybrid solar inverters contribute to a reduction in greenhouse gas emissions and help combat climate change.
-
Financial Benefits: Over time, hybrid solar inverters can lead to significant cost savings on electricity bills, especially in regions with high electricity prices. They can also increase the resale value of homes and businesses equipped with solar and storage systems.
SISV Series 4.2kW/6.2kW/8.2kW/10.2kW Hybrid Solar Inverter Video
Applications for SISV Series 4.2kW/6.2kW/8.2kW/10.2kW Hybrid Solar Inverter
Applications: SISV Series 4.2kW/6.2kW/8.2kW/10.2kW hybrid solar inverter is widely used in the energy storage system of residential and power-deficient areas.
Specifications
Model | SISV-4.2K-H(TWIN) SISV-6.2K-H(TWIN) SISV-8.2K-H(TWIN) SISV-10.2K-H(TWIN) |
---|---|
Rated Output Power | 4200W/6200W/8200W/10200W |
PV Input (DC) | |
---|---|
Nominal DC Voltage /Maximum DC Voltage | 360VDC/500VDC |
Start-up Voltage/Initial Feeding Voltage | 60VDC/90VDC 90VDC/120VDC |
MPPT Voltage Range | 60-450VDC 90-450VDC |
Number of MPPT Trackers / Maximum Input Current | 1/18A 1/22A 1/23A 2/18A |
Grid Output (AC) | |
Nominal Output Voltage | 220/230/240VAC |
Output Voltage Range | 195.5-253VAC/195-253VAC |
Nominal Output Current | 18.2A/27A/35.6A/44.3A |
Power Factor | >0.99 |
Feed-in Grid Frequency Range | 49-51±1Hz |
Efficiency | |
Maximum Conversion Efficiency(DC/AC) | 98% |
Two Load Output Power | |
Full Load | 4200W/6200W/8200W/10200W |
Maximum Main Load | 4200W/6200W/8200W/10200W |
Maximum Second Load(battery mode) | 1400W/2067W/2733W/3400W |
Main Load Cut Off Voltage | 26VDC/52VDC |
Main Load Return Voltage | 27VDC/54VDC |
AC Input | |
---|---|
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC |
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC |
Frequency Range | 49~51±1Hz |
Maximum AC Input Current | 30A/40A/50A |
PV Input(DC) | |
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC |
MPPT Voltage Range | 60VDC~450VDC |
Maximum Input Current | 1/18A 1/22A 2/18A |
Battery Mode Output (AC) | |
Nominal Output Voltage | 220/230/240VAC |
Output Waveform | Pure sine wave |
Efficiency (DC to AC) | 94% |
Battery & Charger | |
Nominal DC Voltage | 24VDC/48VDC |
Maximum Solar Charging Current | 120A/140A/160A |
Maximum AC Charging Current | 100A/140A |
Maximum Solar + AC Charging Current | 120A/140A/160A |
PV Input(DC) | |
---|---|
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC |
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC |
MPPT Voltage Range | 60~450VDC/90~450VDC |
Maximum Input Current | 1/18A 1/22A 2/18A |
Grid Output (AC) | |
Nominal Output Voltage | 220/230/240VAC |
Output Voltage Range | 190~253VAC/195.5~253VAC |
Nominal Output Current | 18.2A 27.0A 35.6A 44.3A |
AC Input | |
AC Start-up Voltage/Auto Restart Voltage | 120~140VAC/180VAC |
Acceptable Input Voltage Range | 90-280 VAC or 170~280VAC |
Maximum AC Input Current | 30A/40A/50A |
Maximum AC Charging Current | 100A/140A |
Integrated | Over temperature, Battery low, Battery high, Output short circuit,Output voltage too high, Output voltage too low, Bus voltage high, Bus voltage low, PV voltage is over limitation. |
---|
