Glass Loading Machine Solution
A glass loading machine, a prevalent automation tool in glass machinery, replaces manual handling, sorting, and loading of glass sheets, It is usually used in conjunction with glass cutting machines, edge grinding machines and other equipment to achieve automated production, greatly improving the efficiency of downstream glass processing.
Features and Benefits
VEICHI's glass loading machine system boasts efficiency, stability, excellent anti-interference, diverse functions, and simplified debugging. Utilizing our proprietary PLC controllers, servo drives, motors, and AC drives, the system offers compatibility to accommodate various customer needs.

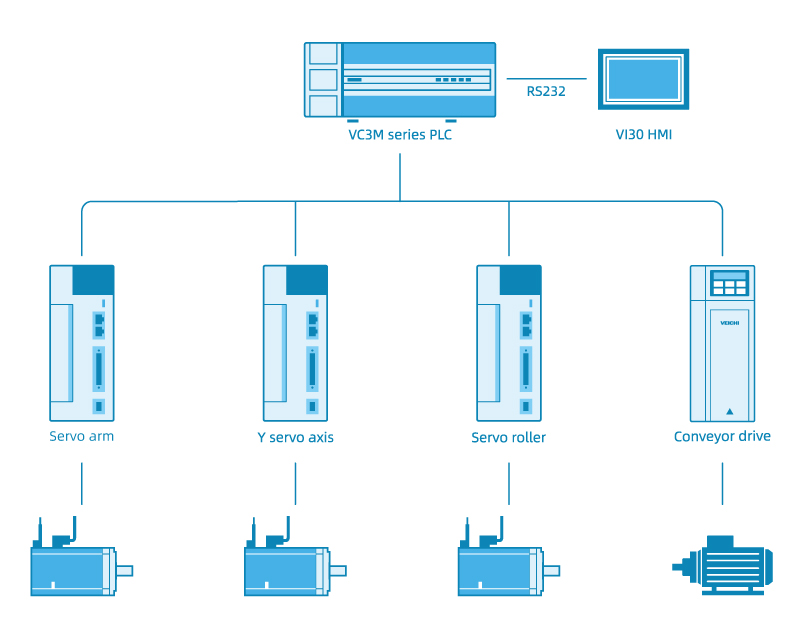

System Topology
Our VC3M controller, with FPGA+ARM architecture, supports up to 8-axis pulse output and features like CAN bus, e-cam and interpolation, offering cost-effective, powerful performance. The SD700 servo drive, supports 23-bit encoder, ensuring quick and stable operation.
System Structure
High Stability and Compatibility
Adopting VEICHI's high-performance automation products as the core components, the system ensures superior stability and compatibility and provides customers with flexible solution and prompt and efficient after-sales support.
Sophisticated System
The reliable system utilizes VEICHI PLC's high-speed counting for glass length measurement. Multiple automatic modes and the ability to switch between on-line and stand-alone operations offer enhanced flexibility. It supports freely stop upon glass unloading and current action completion at high speed operation.
Powerful Function
The system utilizes VEICHI's pulse linear interpolation for operations, delivering fast and precise performance.
