AC01 Series Network AC Drive

AC01 Series Network AC Drive Overview

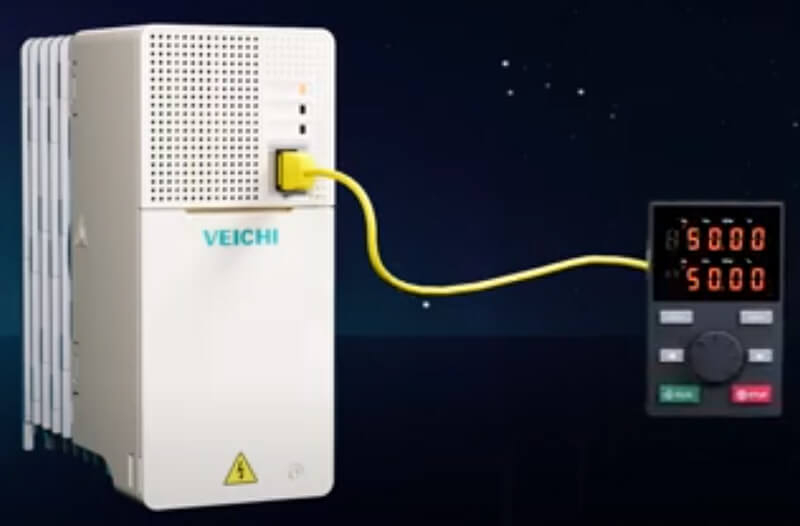

Based on Veichi's low-voltage AC series drive system, AC01 series drives with compactness and intelligence, is developed to meet the market demand for lower volume and higher performance/price ratio. The network port can support the expansion of the built-in keyboard, and it can also support the AC310/AC10 external keyboard.

This series of products feature narrow but highly reliable book-like structure which is inherited from the previous products and durability in its parts. Improvements in fully automated production processes and more circuit-integrated designs have been made for cost reductions and increased profitability for our customers.

The AC01 series of network AC drives, on VEICHI's advanced PLM R&D management system, stands out with its lightweight design and a suite of powerful features, being a catalyst for enhancing lean production standards for customers throughout the industrial chain, from upstream to downstream.

Product Position

Miniaturization and networking,  meet the needs of the low-power speed-adjustable drive industry.

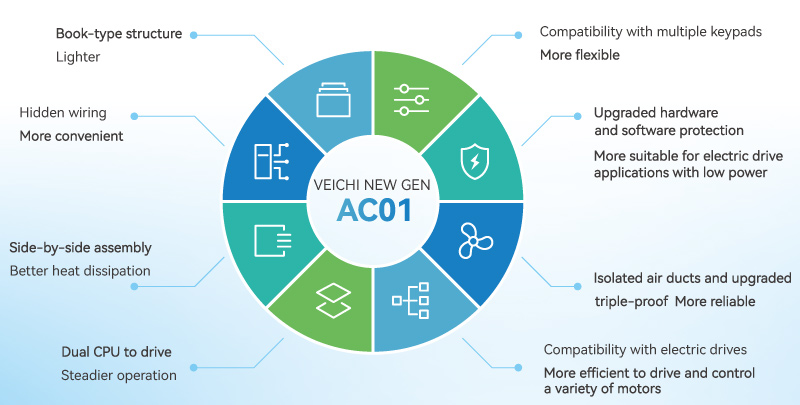

Product Features

• Book-type structure Lighter.
• Hidden wiring More convenient.
• Side-by-side assembly Better heat dissipation.

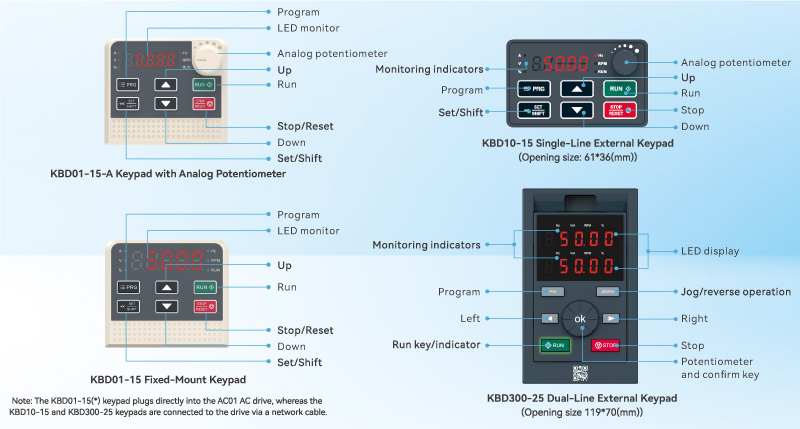

• Compatibility with multiple keyboards More flexible.
• Upgraded hardware and software protection More suitable for electric drive applications with low power.
• Isolated air ducts and upgraded triple-proof More reliable.
• Compatibility with electric drives, more efficient to drive and control a variety of motors.

Performance Feature

Control Performance

AC01 software integrates the features of AC310 series products with high accuracy for different needs, providing a one-touch convenient operation for drives under special applications.

Firmware Upgrade

The VEICHI software provides great convenience for instant firmware upgrades of the AC01.

Comprehensive Fault Protection

AC01 products are designed for higher convenience and flexibility in the application and protection of low-power motors. With optimization in terms of
alarm threshold range, and detection sensitivity, etc, warnings are not that easy to be triggered on the basis of that different parameter errors are precisely
monitored.

Reliability Design

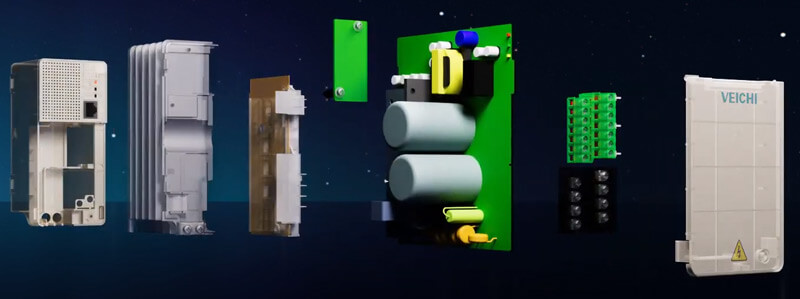

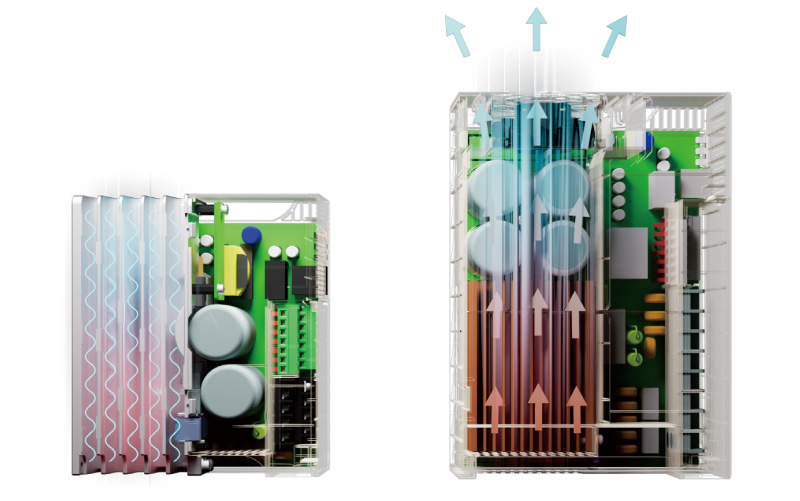

New Structure

The whole series of AC01 products are designed with two cooling methods, natural cooling and forced air-cooling, together with independent cooling ducts to ensure efficient heat dissipation and enhanced operation.

Flexible Configuration

The AC01 series features customizable C3 filters to reduce high-frequency noise and EMI, meeting EM compatibility standards.

Higher Standards

The AC01 series meets serious global standards such as CE, EAC, TUV, and UL and this adherence to international bench-marks makes them a reliable and quality option for users.

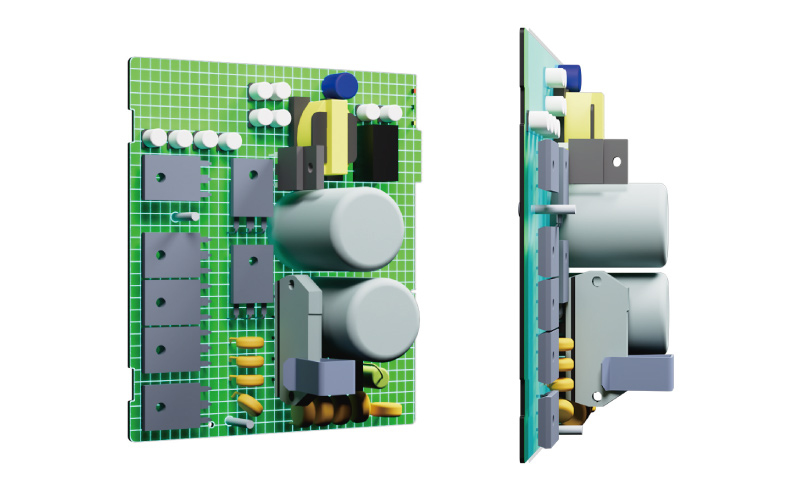

Protection Improvement

Protection of AC01 series of products optimized especially the three-resistance coating process of PCB board is improved. The automated three three resistance spray ensures more even thickness and more comprehensive coverage, and enables the products to cope with harsh environments.

Fully Automated Production and Assembly

The whole series of AC01 products are assembled, tested, aged and packaged from automated production lines instead of manual labor, which is more standardized and more reliable.

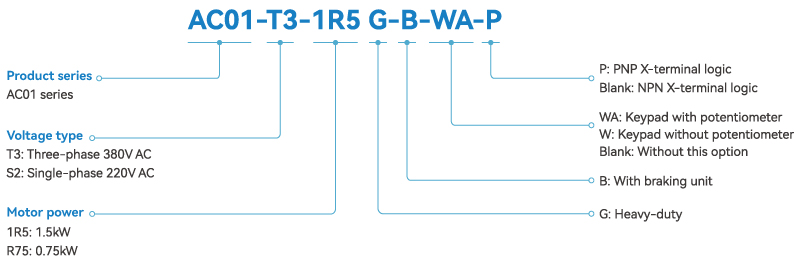

Naming Rules

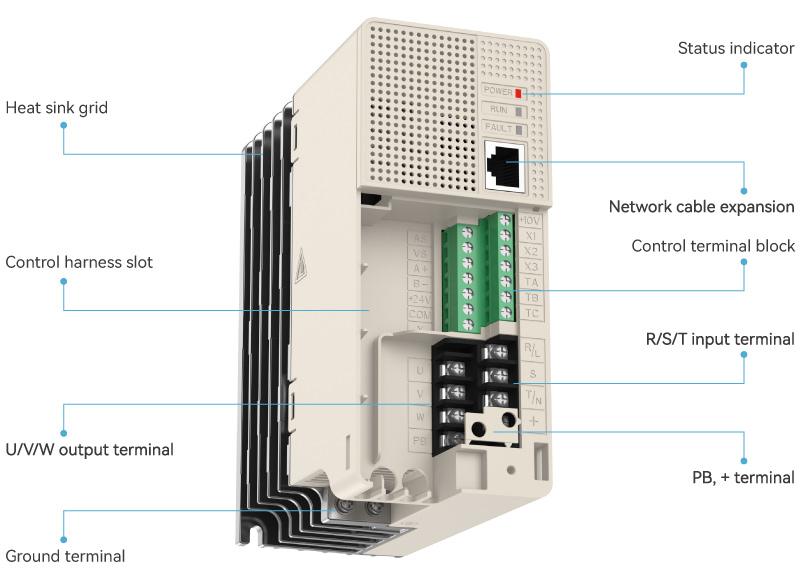

Layout

AC01 Series Network Type AC Drive Video

Industrial Applications for AC01 Series Network AC Drive
