  1. Home > Product > Robot > Collaborative Robot > VCC05-900 Series 5kg 900mm Collaborative Robot

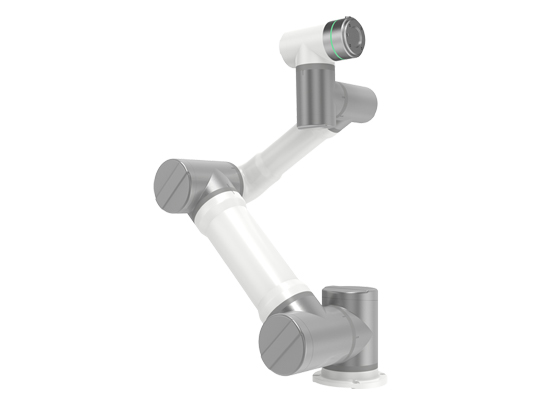

VCC05-900 Series 5kg 900mm Collaborative Robot

  • Payload: 5kg.
  • Arm Reach: 900mm.
  • Application: Welding, stamping, hardware polishing and transport.
Catalogue Contact support Email
  • Features
  • Specifications
  • Downloads
  • Solutions
  • Cases
  • News
  • Related Products
  • Additional Information

VCC05-900 series collaborative robot overview

The VEICHI VCC05-900 series collaborative robot is an advanced industrial automation robot, designed for heavy-duty tasks. This collaborative robot is an excellent choice for applications that demand both strength and reach in an automated environment.

Product features

  • Payload: It boasts a substantial payload capacity of 5kg, making it suitable for handling heavier materials with precision.
  • The cobot's arm reach extends to 900mm, allowing it to operate effectively over a wide workspace.

Specifications


Payload 5kg
Arm Reach 900mm
DOF 6
User Distribution Single-phase AC220V-10%~+10%
Programming Drag teaching, graphic pages
Security Module More than 20 adjustable safety features including collision detection, virtual wall and collaboration mode
Certification EN ISO13849-1, Cat.3, EN ISO10218-1, European Union CE certification
Position Repeatability ±0.03mm
Protection Rating IP54/IP67
Max Speed J1: 180°/s
J2: 180°/s
J3: 180°/s
J4: 180°/s
J5: 180°/s
J6: 180°/s
Max Operation Area J1: ±175°
J2: ±175°
J3: -245°~65°
J4: ±175°
J5: ±175°
J6: ±360°
Noise Level Laeq≤85dB(A)
Rated Power 2.55kW
Applicable Environment Temperature: 0~45°C
Humidity: 20%~80%RH（No Condensation）
Body Weight 26kg
Control Cabinet VC-TRC5-G06
Installation Method Installation at Any Angle
Show more specifications Show less specifications
