Motor-drive integrated structure,convenient installation and maintenance
The controller wraps the surface of the motor to truly achieve an integrated design. Only four screws are required for installation; the motor and the fan also dissipate heat for the motor and the drive, reducing the fan failure rate.
Motor protection function
Multiple inverter basic protection functions; Water pump exclusive protection function(water shortage protection, high and low pressure protection, leakage protection, anti-freeze embroidery protection, sensor disconnection protection)
Perfectly drive a variety of pump motors
Perfectly drive a variety of water pump motors such as asynchronous, permanent magnet synchronous, synchronous reluctance, etc.
Efficient speed regulating fan
High-efficiency fan dissipates the motor and drive at the same time, with large air volume and low noise.
Multiple key selection
Mechanical key,touch screen key.
Multiple pump control
1. The pressure of the pipe network is detected by the host and sent to the auxiliary machine. When the pressure is not enough, the auxiliary machine starts and runs according to the set frequency, and the main machine performs constant pressure PID adjustment.
2. The main and auxiliary machines alternately run in sequence at regular intervals to realize the uniform use of the water pump and extend the life of the water pump.
Wide range of applications
Used in many occasions such as civil water supply, agricultural irrigation, water conservancy and water affairs, HVAC water treatment, etc.

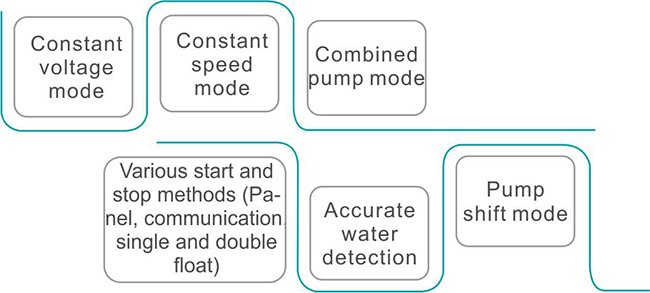

Multiple water supply functions
Industrial Applications for GS00 Smart Pump Drive
Applications: Farmland irrigation, residential water, landscape fountains, swimming pool water supply, desert management.
|Voltage, Frequency||T/S2 ：Single/Three phase 220VAC 50/60Hz
T3：Three-phase 380VAC 50/60Hz
|Allow fluctuations||Voltage imbalance rate: <3%; Frequency: ±5%
The distortion rate meets the requirements of IEC61800-2
|Power Rating||T/S2:0.75kW-2.2kW; T3:0.75kW-11kW; 15kw or above under development|
|Output frequency range||0-600.00Hz|
|Overload capability||T3 model: 150% rated current for 1 minute, 180% rated current for 10 seconds, 200% rated current for 0.5 second
S2 model: 150% rated current 60 seconds, 180% rated current 10 seconds，200% rated current 0.5 seconds
|Motor control mode||No PG V/F control, no PG vector control|
|Standard function||PID control, speed tracking and power-down restart, skip frequency, frequency upper and lower limit control, program operation, multi-step speed, RS485, analog output, frequency pulse output|
|Pump function||Constant pressure control,smart pump control, multiple pump control，intelligent IOT|
|Input terminals||2 digital input,2 analog input|
|Output terminals||1 relay output, 1 collector output, 2 AO output can be selected as 0~10V or 4~20mA or 4~20mA output|
|Protective function||Basic protections: overvoltage, undervoltage, current limiting, overcurrent, overload, electronic thermal relay, overheating, overvoltage stall, data protection, fast protection, input and output phase loss protection.
Pump special protection: water shortage,high/low pressure,water leakage, anti-freeze, sensor disconnection
|LCD display||English language display, system operation diagram|
|Touching button||Parameters modification, command set|
|Status monitoring||System operation status display such as pump pressure ,speed|
|Information query||Operation period, historical fault information|
|Parameters lock||Lock parameters for avoiding misoperation|
|User password||After password setting, it will take effect in 1 minute|
|Temperature humidity||-10 ~ +50°C, derating can be used above 40 °C, the maximum temperature is 60 °C (no-load operation)|
|Installation method||Mounted on the motor vertically|
|Cooling method||Forced air cooling|
|File Name||Type||Language||File Type||Update||Download|
|Smart Pump Drive Catalog V1.0||Catalog||English||2022-05-12||36.67MB|
