SI-PV004 Series 1000V Solar Connector

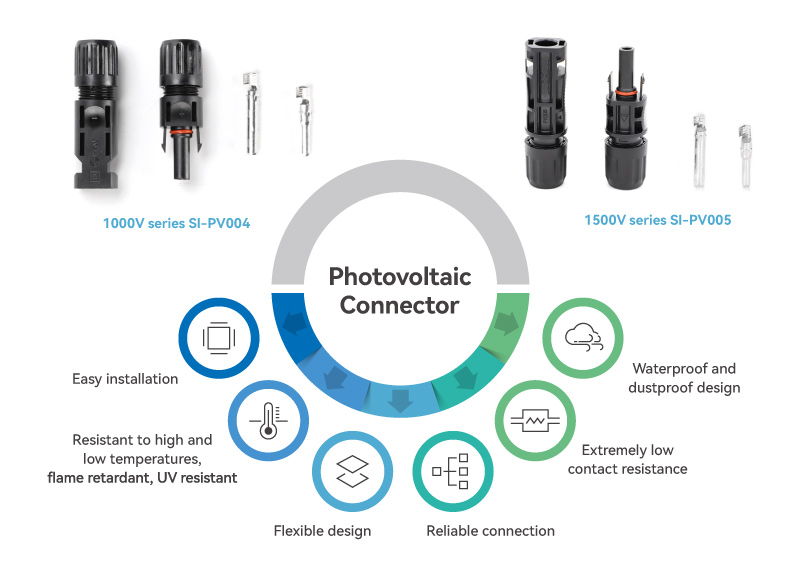

- Easy installation.
- Resistant to high and low temperatures, flame retardant, UV resistant.
- Flexible design.
- Reliable connection.
- Extremely low contact resistance.
- Waterproof and dustproof design.
Catalogue
Contact support
EmailSI-PV004 Series 1000V Solar Connector Overview
SI-PV004 series 1000V solar photovoltaic connector helps to easily expand solar arrays by supporting series or parallel configurations for flexible system design and increased compatibility of different solar panels.
Different Types of SI-PV004 Series 1000V Solar Photovoltaic Connector

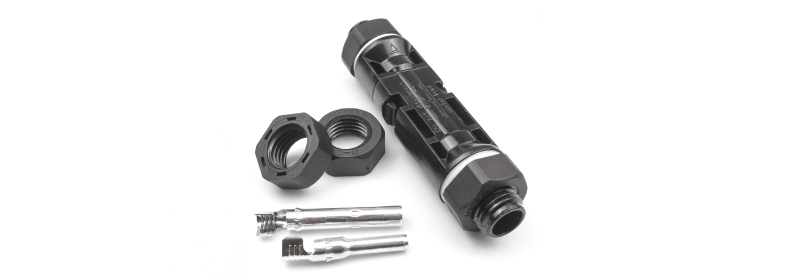

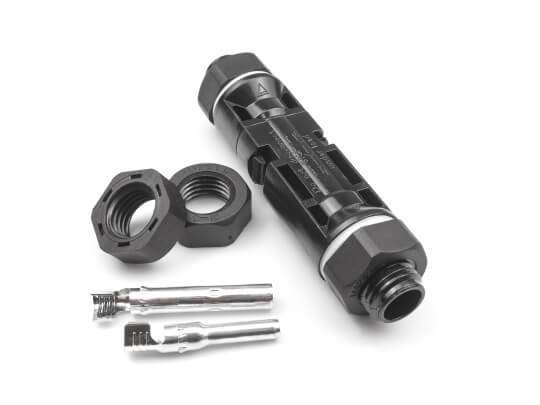

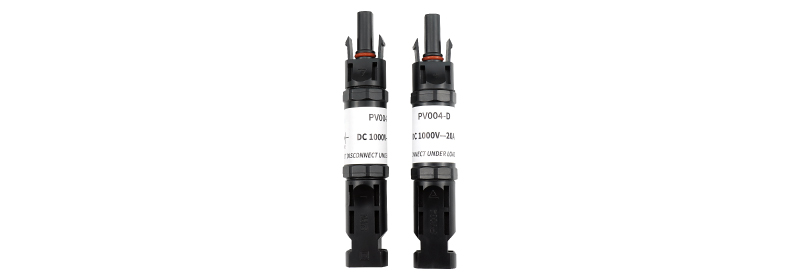

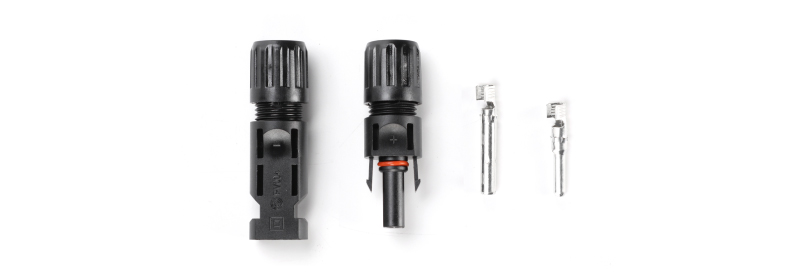

SI-PV004 Photovoltaic Connector
Product standard: IEC62852

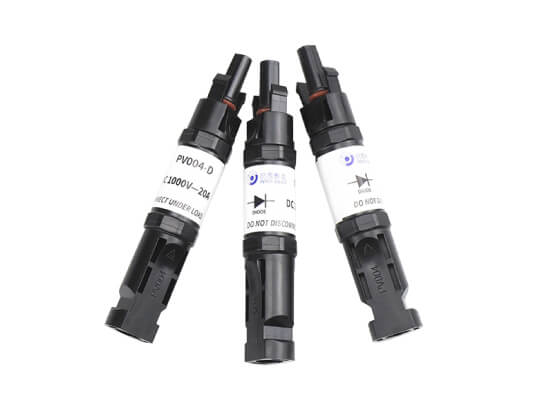

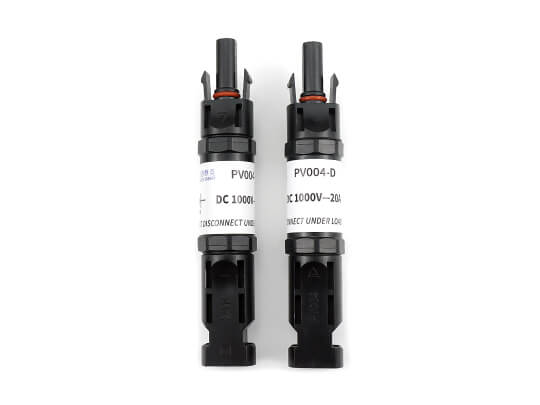

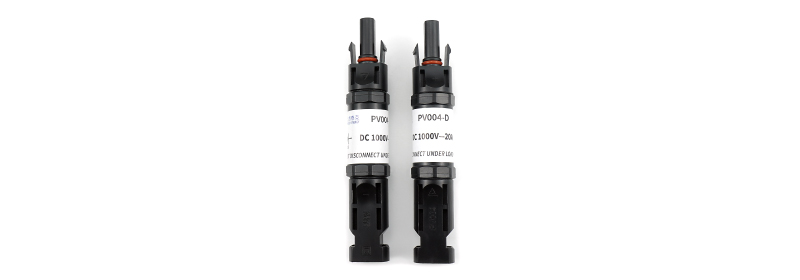

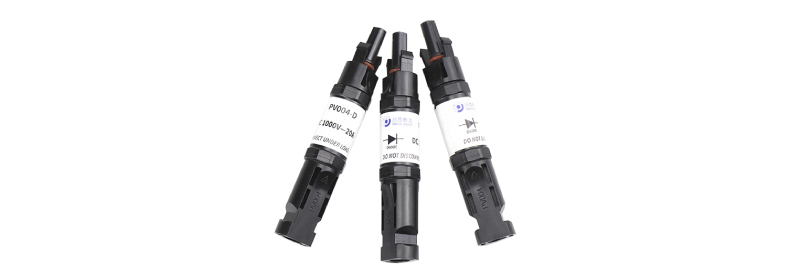

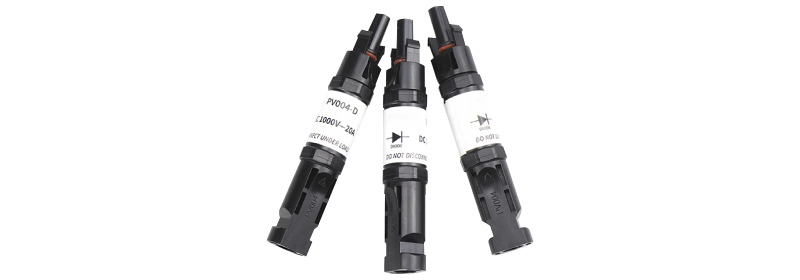

SI-PV004-D Photovoltaic Diode Connector
Product standard: CE certification
SI-PV004-P Photovoltaic Board end Connector
Product standard: CE certification
SI-PV004-F Photovoltaic Fuse Connector
Product standard: CE certification
SI-PV004-T2 2 to 1 T Branch Connector
Product standard: CE certification

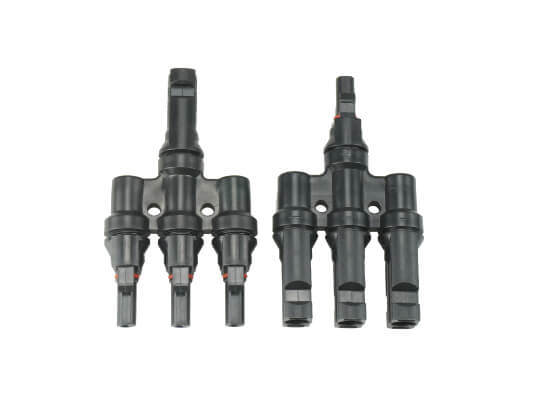

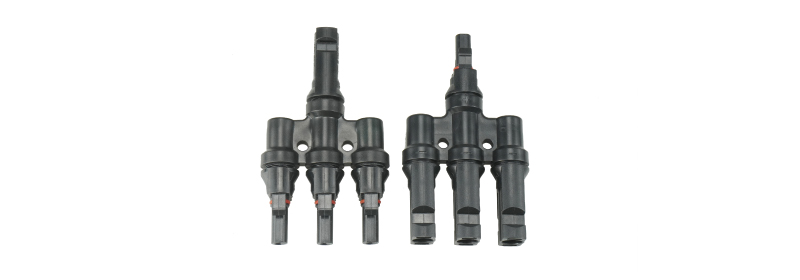

SI-PV004-T3 3 to 1 T Branch Connector
Product standard: CE certification

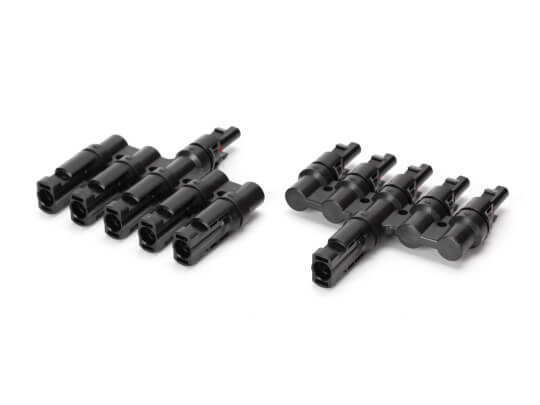

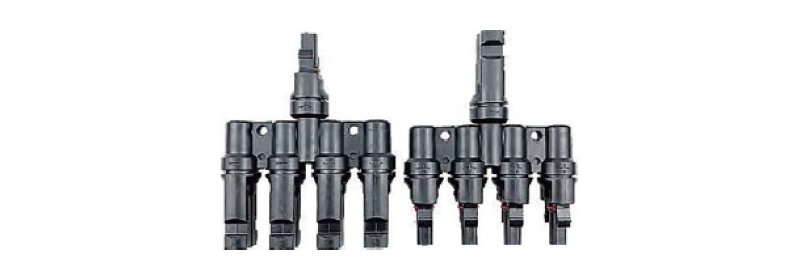

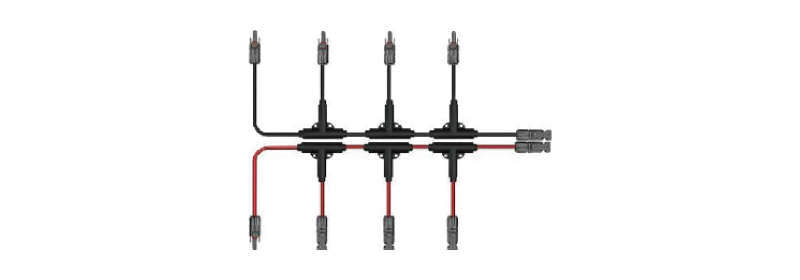

SI-PV004-T4 4 to 1 T Branch Connector
Product standard: CE certification

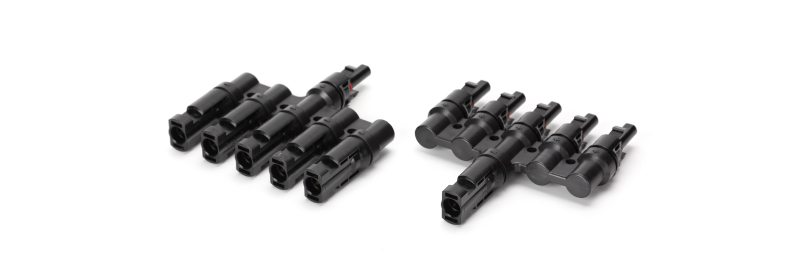

SI-PV004-T5 5 to 1 T Branch Connector
Product standard: CE certification

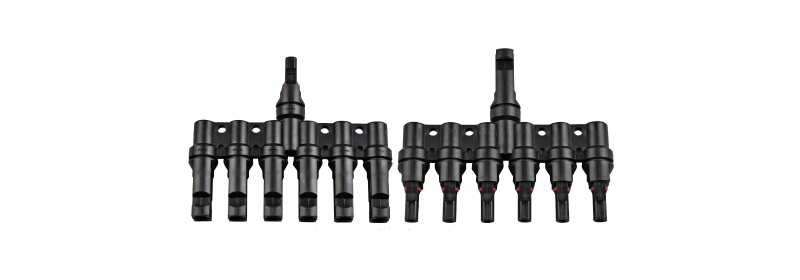

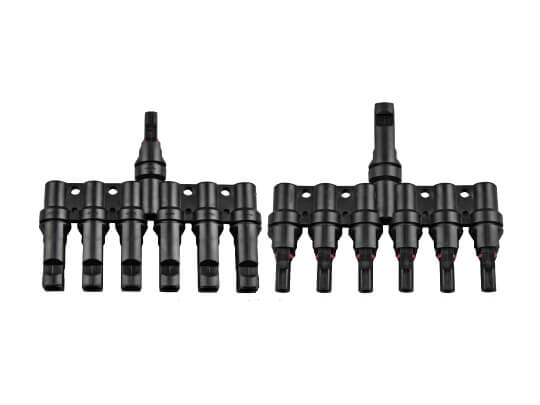

SI-PV004-T6 6 to 1 T Branch Connector
Product standard: CE certification

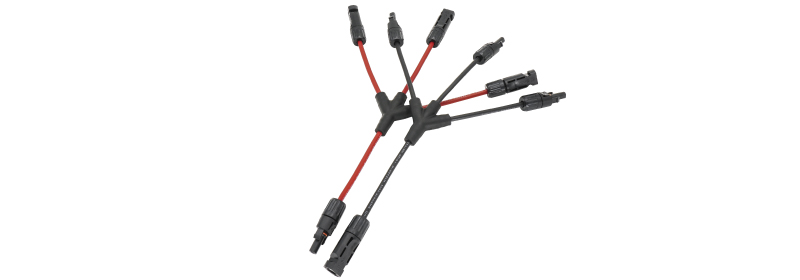

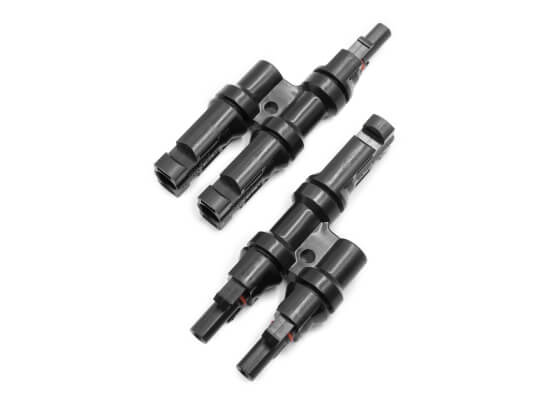

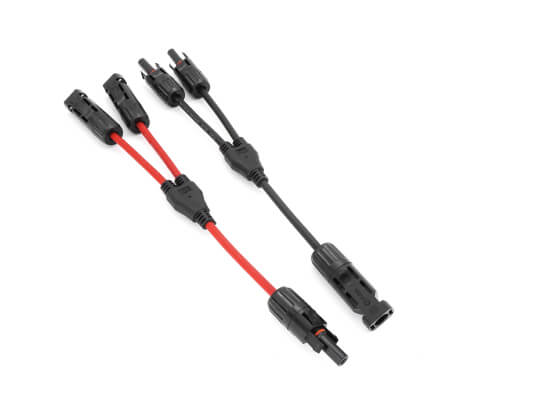

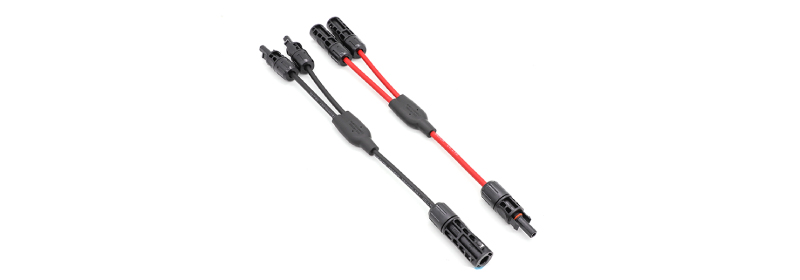

SI-PV004-2T1 2 to 1 Y Branch Connector
Product standard: CE certification

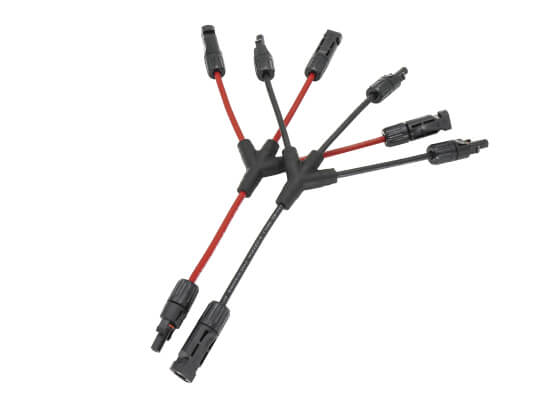

SI-PV004-3T1 3 to 1 Y Branch Connector
Product standard: CE certification

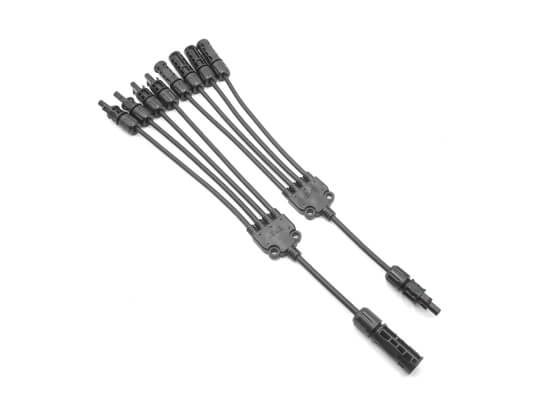

SI-PV004-4T1 4 to 1 Y Branch Connector
Product standard: CE certification
SI-PV004-4T1 4 to 1 Y Branch Connector
Product standard: CE certification
Installation Precautions
- The connector should be installed at the project site with a special crimping tool to ensure that the connector metal parts are crimped to the PV cable.
- The connector nut should be screwed in place, but should not be too tight to prevent the nut from cracking due to thermal expansion and contraction.
- Male and female connectors should be plugged in to ensure that the clips are locked.
Specifications
| Model Type |
SI-PV004-D
SI-PV004-P SI-PV004-F SI-PV004-T2 SI-PV004-T3 SI-PV004-2T1 SI-PV004-3T1 SI-PV004-T4 SI-PV004-T5 SI-PV004-4T1 SI-PV004-T6 SI-PV004-XT1 |
|---|---|
| Rated voltage | 1000V DC |
|
Rated current
|
10/15/20/30A |
| Contact material | tinned copper |
| Protection class | IP65 IP67 |
| Contact resistance | ≤0.5mΩ |
| Adaptable ambient temperature | -40℃~+85 |
