SI-PV005 Series 1500V Solar Connector

  • Easy installation.
  • Resistant to high and low temperatures, flame retardant, UV resistant.
  • Flexible design.
  • Reliable connection.
  • Extremely low contact resistance.
  • Waterproof and dustproof design.
Catalogue Contact support Email
  • Features
  • Specifications
  • Downloads
  • Solutions
  • Cases
  • News
  • Related Products
  • Additional Information

SI-PV005 Series 1500V Solar Connector Overview

SI-PV005 Series 1500V solar photovoltaic connector helps to easily expand solar arrays by supporting series or parallel configurations for flexible system design and increased compatibility of different solar panels.

Features of Photovoltaic Connector

Different Types of SI-PV005 Series 1500V Solar Photovoltaic Connector

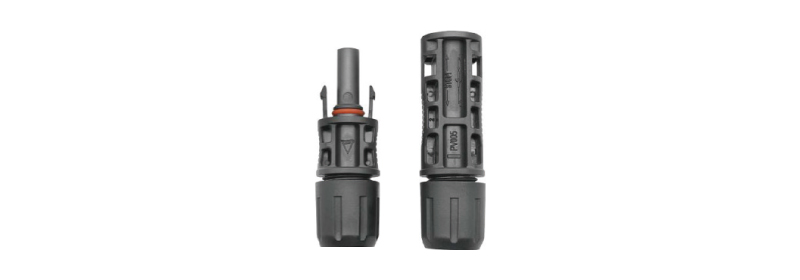

SI-PV005 Photovoltaic Connector

Product standard: IEC62852:2014/TÜV certification
SI-PV005 Photovoltaic Connector

SI-PV005-P Photovoltaic Panel Connector

Product standard: CE certification

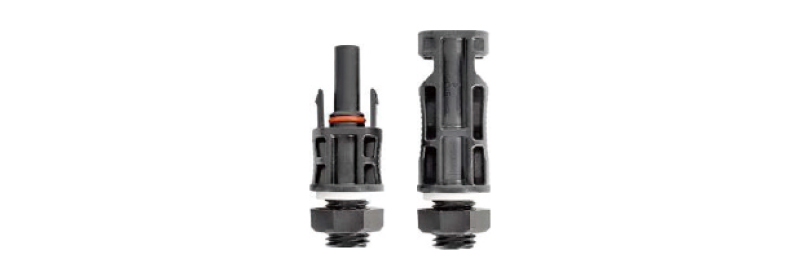

SI-PV005-P Photovoltaic Panel Connector

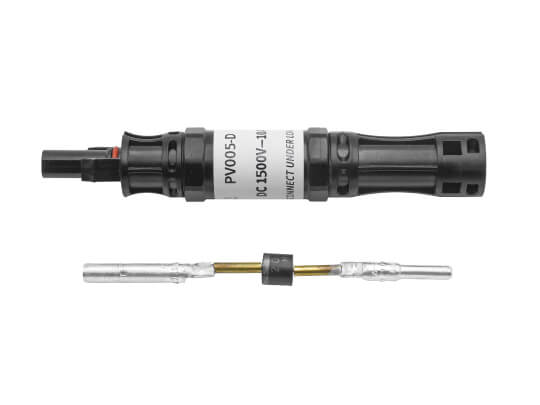

SI-PV005-D Photovoltaic Diode Connector

Product standard: CE certification

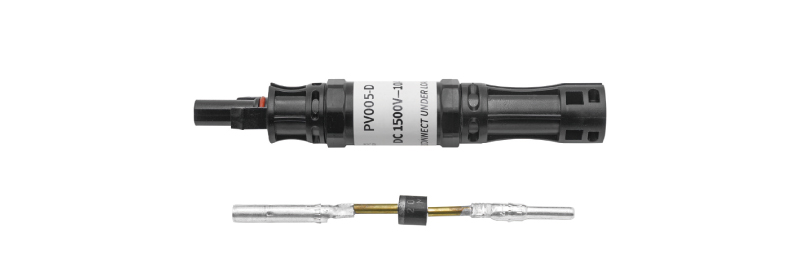

SI-PV005-D Photovoltaic Diode Connector

Photovoltaic Fuse Connector

Product standard: CE certification

Models: SI-PV005-FA/SI-PV005-FB/SI-PV005-FC/SI-PV005-FD

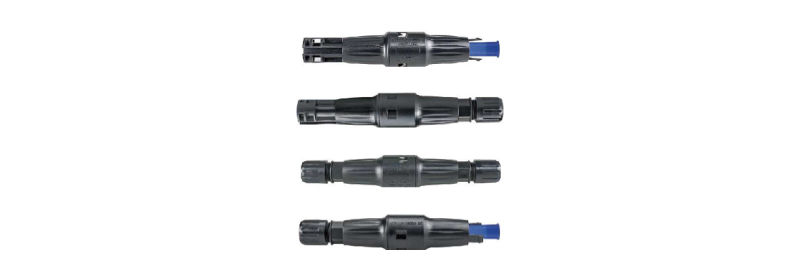

Photovoltaic Fuse Connector

SI-PV005-T 2 to 1 T Branch Connector

Product standard: CE certification

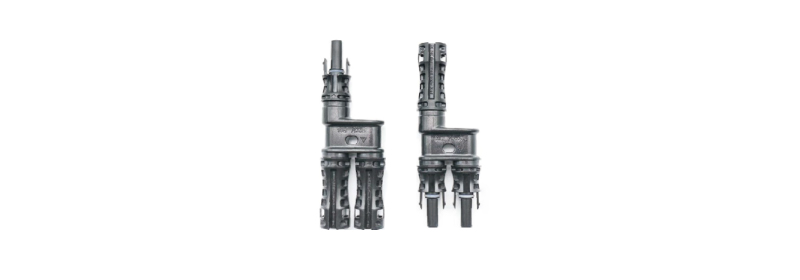

SI-PV005-T 2 to 1 T Branch Connector

SI-PV005-X Y Branch Connector

Product standard: CE certification

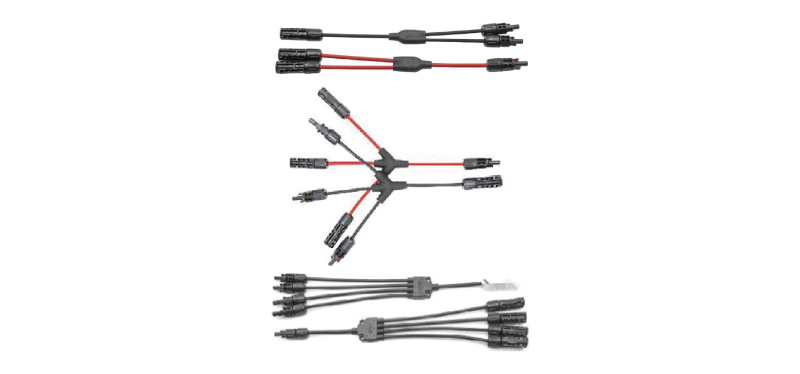

SI-PV005-X Y Branch Connector

Installation Precautions

  • The connector should be installed at the project site with a special crimping tool to ensure that the connector metal parts are crimped to the PV cable.
  • The connector nut should be screwed in place, but should not be too tight to prevent the nut from cracking due to thermal expansion and contraction.
  • Male and female connectors should be plugged in to ensure that the clips are locked.

Specifications


Model Type SI-PV005-P
SI-PV005-D
SI-PV005-FA
SI-PV005-FB
SI-PV005-FC
SI-PV005-FD
Rated voltage 1500V DC
Rated current
 10/15/20/25/30A
Contact material tinned copper
Protection class IP65
IP68
Contact resistance ≤0.5mΩ
Adaptable ambient temperature -40℃~+85
Show more specifications Show less specifications

Downloads

File Name Type Language File Type Update Download
Photovoltaic DC Cable & Connector Catalog Catalog English PDF 2025-01-09 icon-download 14.5MB
