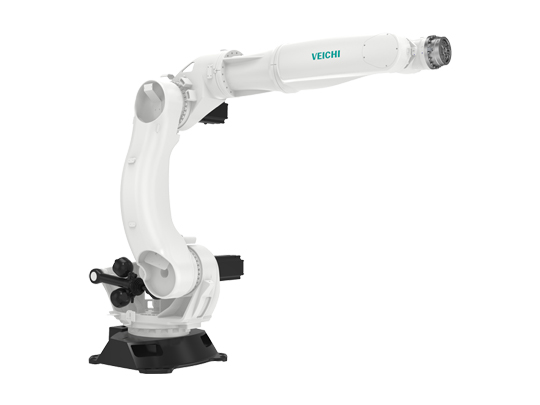

VCR155-3200 Series 155Kg 3200mm Six Axis Robot
- Payload: 155kg.
- Arm Reach: 3200mm.
- Application: Welding, punch press, hardware polishing and material handling.
Catalogue
Contact support
EmailVCR155-3200 series six axis robot overview
Engineered for reliability and adaptability, VEICHI VC-RRB6600 series six axis robot is your go-to solution for enhancing productivity on the factory floor. Experience the future of automation with our advanced robotic technology.
Product features
- Payload: Capable of handling a payload of up to 155kg, suitable for handling tasks that demand both precision and moderate load management.
- Arm Reach: Features a 3200mm reach, perfect for a variety of applications including welding, punch press operations, hardware polishing, and material handling.
Specifications
| Payload | Rated: 155kg |
|---|---|
| Arm Reach | 3200mm |
| Position Repeatability | ±0.1mm |
| Protection Level | IP54/IP65(5&6 Axes Optional) |
| Structural Form | Vertical Multi-jointed Series Structure |
| DOF | 6 |
| Max Speed | J1: 110°/s J2: 83°/s J3: 95°/s J4: 150°/s J5: 150°/s J6: 200°/s |
| Max Operation Area | J1: ±185° J2: -40°~85° J3: -180°~75° J4: ±360° J5: ±125° J6: ±360° |
| Wrist Allowable Torque | J4: 1000Nm J5: 1000Nm J6: 600Nm |
| Maximum Allowable Inertia of the Wrist | J4: 89kgm² J5: 89kgm² J6: 49kgm² |
| Rated Power | 7.5kW |
| User Wiring | RVV5*6 |
| User Piping | 2*Φ8mm |
| User Distribution | Three-phase AC380V-10%~+10% |
| Applicable Environment | Temperature: 0~45°C Humidity: 10%~80%RH Max Temperature Gradient: 1.5°C/min |
| Body Weight | 1320kg |
| Control Cabinet | VC-TRC3-C06 |
| Installation Method | Floor-standing |
