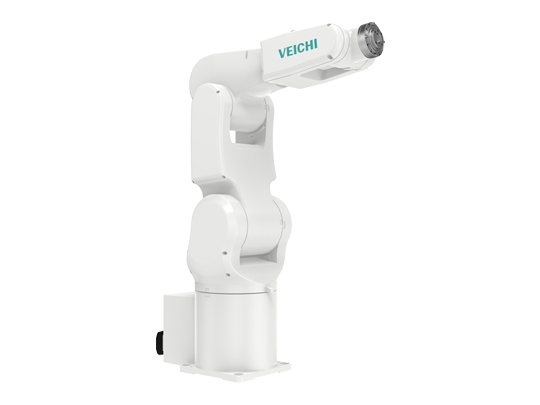

VCR03-610 Series 3kg 616mm Six Axis Robot
- Payload: 3kg.
- Arm Reach: 616mm.
- Application: Welding, punch press, hardware polishing and material handling.
Catalogue
Contact support
EmailVCR03-610 series six axis robot overview
Engineered for reliability and adaptability, VEICHI VCR03-610 series six axis robot is your go-to solution for enhancing productivity on the factory floor. Experience the future of automation with our advanced robotic technology.
Product features
- Payload: Capable of handling a payload of up to 3kg, suitable for handling tasks that demand both precision and moderate load management.
- Arm Reach: Features a 616mm reach, perfect for a variety of applications including welding, punch press operations, hardware polishing, and material handling.
Specifications
| Payload | Rated: 3kg |
|---|---|
| Arm Reach | 616mm |
| Position Repeatability | ±0.02mm |
| Protection Level | IP54 |
| Structural Form | Vertical Multi-jointed Series Structure |
| DOF | 6 |
| Max Speed | J1: 450°/s J2: 450°/s J3: 720°/s J4: 720°/s J5: 720°/s J6: 720°/s |
| Max Operation Area | J1: ±170° J2: -80°~120° J3: -75°~75° J4: ±120° J5: ±120° J6: ±360° |
| Wrist Allowable Torque | J4: 7.38Nm J5: 7.38Nm J6: 4.45Nm |
| Maximum Allowable Inertia of the Wrist | J4: 0.2kgm² J5: 0.2kgm² J6: 0.067kgm² |
| Rated Power | 1.05kW |
| User Wiring | RVV10*0.2 |
| User Piping | 2*Φ4mm |
| User Distribution | Single-phase AC220V-10%~+10% |
| Applicable Environment | Temperature: 0~45°C Humidity: 10%~80%RH Max Temperature Gradient: 1.5°C/min |
| Body Weight | 35kg |
| Control Cabinet | VC-TRC4-A03 |
| Installation Method | Floor-standing |
