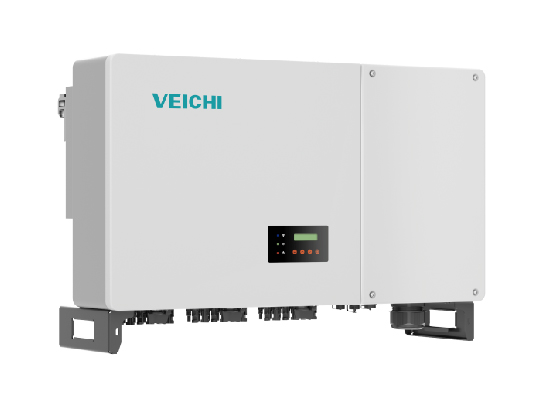

VST Series 100kW/110kW On Grid Solar Inverter
- 98.8% max efficiency.
- 9 MPPTs design with precise MPPT algorithm.
- Corrosion resistant.
- Wifi, 4G, GPRS, Bluetooth, RS485.
- 312V to 520V adjustable AC output voltage.
- Compatible with the grids of most countries.
- Multiple ways of testing and commisioning.
- Thunder-proof and low electromagnetic radiation.
Contact support
EmailVST Series 100kW/110kW On Grid Solar Inverter Overview
The VST series on grid solar inverter is engineered to deliver superior performance in photovoltaic energy systems. With optimized power capacity and support for up to 9 MPPT trackers, the inverter ensures maximum energy yield across dynamic environmental conditions. Featuring industry-leading conversion efficiency and broad grid frequency adaptability, it excels in commercial and industrial settings demanding precise grid harmonization. Its design ensures compliance with international grid specifications, facilitating seamless deployment across multiple geographical markets while maintaining operational stability.
VST Series 100kW/110kW On Grid Solar Inverter Advantages
1. Higher Yield:
The inverter achieves a maximum efficiency of 98.8% via up to 9 MPPTs, enabling optimized energy capture across varying environmental parameters while reducing operational losses..
2. Higher Quality:
Featuring IP66 protection and UV-resistant corrosion-proof construction, the inverter withstands extreme weather conditions. Its intelligent thermal regulation system ensures operational stability across temperature extremes through advanced heat dissipation technology.
3. Communications:
Integrated WiFi, 4G, GPRS, Bluetooth, and RS485 communication protocols enable real-time data transmission and remote monitoring.
4. Compatibility:
Designed for worldwide deployment, the adjustable AC output voltage (312V~520V) seamlessly adapts to regional grid standards of most countries. Supporting higher DC input thresholds, it accommodates various photovoltaic configurations.
5. Easy to use:
Multiple ways of testing and commissioning enable rapid installation and reduce commissioning time.
6. Safety:
The inverter includes ground fault monitoring, lightning surge protection, and low electromagnetic radiation design, ensuring safe operation for both equipment and users.
Applications for VST Series 100kW/110kW On Grid Solar Inverter
Applications: The VST series on grid solar inverter is ideal for commercial and industrial applications.
Specifications
| VST-100K |
DC Input Data
Recommended max. PV power(KW): 150Max. input current(A): 9*40 Max. short circuit current(A): 9*60 MPPT number: 9 Strings number per MPPT/Total Strings: 2/18 AC output Data Rated output power(KW): 100 Rated/Max. apparent output power(KVA): 100/100 Max. active power(KW): 100 Rated grid output current(A): 144.9 Max. output current(A): 144.9 Rated grid voltage/range(V) (3P/N/PE): 220/380, 230/400, 240/415, 312~520 Rated grid frequency(Hz): 50/60 Power Factor: >0.99, (-0.8 to +0.8 adjustable) THDi: ＜3% |
|---|---|
| VST-110K |
DC Input Data
Recommended max. PV power(KW): 165Max. input current(A): 9*40 Max. short circuit current(A): 9*60 MPPT number: 9 Strings number per MPPT/Total Strings: 2/18 AC output Data Rated output power(KW): 110 Rated/Max. apparent output power(KVA): 110/110 Max. active power(KW): 110 Rated grid output current(A): 159.4 Max. output current(A): 159.4 Rated grid voltage/range(V) (3P/N/PE): 220/380, 230/400, 240/415, 312~520 Rated grid frequency(Hz): 50/60 Power Factor: >0.99, (-0.8 to +0.8 adjustable) THDi: ＜3% |
|
Max. efficiency
|
98.80% |
|---|---|
| EU efficiency | 98.30% |
| Ground fault monitoring | Yes |
|---|---|
| Output over voltage protection | Yes |
| Anti-islanding protection | Yes |
| Integrated AFCI | Optional |
| DC reverse-polarity protection | Yes |
| Over voltage category | AC ClassIII/PV ClassII |
| Dimension(mm) (W*H*D) | 1020*696*300 |
|---|---|
| Shell material | Aluminium alloy |
| Noise Emission(dB(A)) | ≤40 |
| Weight(Kg) | 65 |
| Operating ambient temperature range | -25~60℃ |
| Topology | Transformerless |
| Ingress protection | IP66 |
| Cooling concept | Smart fan&Natural convection |
| Max. operation altitude(m) | 3000 |
| Grid connection standard | AS/NZS4777:2020, EN50549-10:2022, G98:2021, G99:2021, NC RFG, ABNT NBR 16150, VDE-AR-N 4105, CEI0-21, CEI0-16, RD1699, NA/EEA, C10:2019, PPDS:2021, Tor+R25, IEC61683, IEC61727&62161 |
| Safety/EMC standard | IEC-62109-1/-2, IEC-61000-6-1/-2/-3, NB/T32004 |
| DC connection | MC4/D4 |
| Communications | Wifi(2.4G), 4G, GPRS, Bluetooth, RS485 |
