Wire Weaving Machine Solution

System Feature

VI30 HMI

The main interface shows alarms, yield, and equipment reset, offering easy operation for field workers.

VC3M Controller

Precise system control. The built-in electronic cam and automatic curve planning ensure smoother motor operation and reduced torque fluctuation.

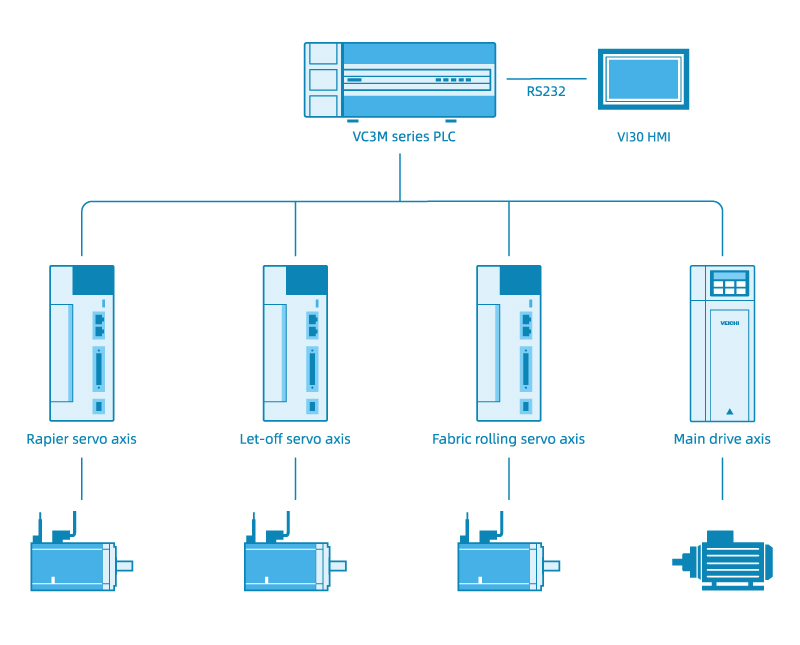

System Topology

Conclusion

The VEICHI wire weaving machine system centers around VEICHI products to link components like the touch screen, controller, servo drive, and AC drive easily. The VI20 HMI, displaying alarms and yields, has separate views for users and admins. This design streamlines operation and enhances field worker usability. Meanwhile, the system employs the V5 motion controller for precise control, with an electronic cam that smooths motor operation and minimizes torque fluctuations. This integrated, effective, and accurate solution offers high-quality and dependable industrial performance.
