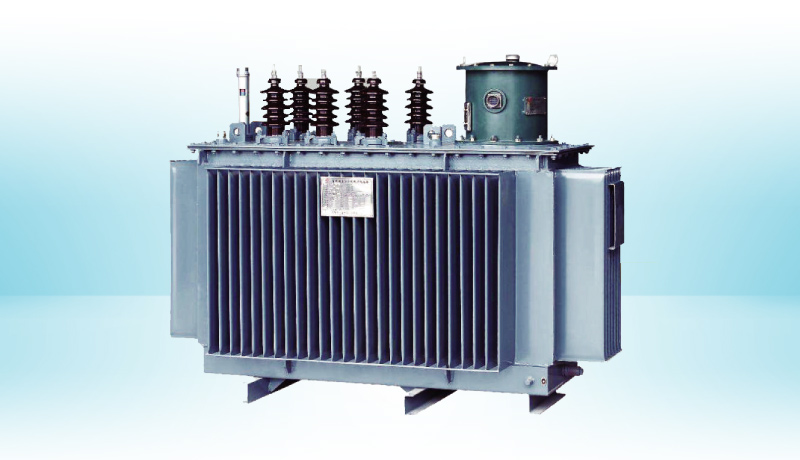

10kV On-Load Capacity and Voltage Regulating Oil-Immersed Power Transformers

10kV On-Load Capacity and Voltage Regulating Oil-Immersed Power Transformers Overview

The on-load capacity and voltage regulating oil-immersed transformer is designed for 10kV distribution areas up to 630kVA. It provides automatic capacity and voltage regulation, distribution monitoring, and wireless remote control.

Product Features

• Automatic Voltage Regulation: The transformer automatically regulates voltage in response to load fluctuations, improving power quality, extending equipment service life, and ensuring voltage compliance during peak and off-peak periods.

• Automatic Capacity Regulation: The transformer automatically adjusts capacity according to load demand. During low-load periods, it operates at the low-capacity setting, reducing no load active loss to less than one third and reactive power demand to one tenth of those at high capacity.

• Distribution Monitoring and Wireless Remote Control: Wi-Fi, GSM, and GPRS communication options enable real-time monitoring, remote control, and parameter viewing/setting for automated distribution network operation.

• Maintenance-Free Design: Maintenance-free throughout the service life, providing convenient and reliable operation.

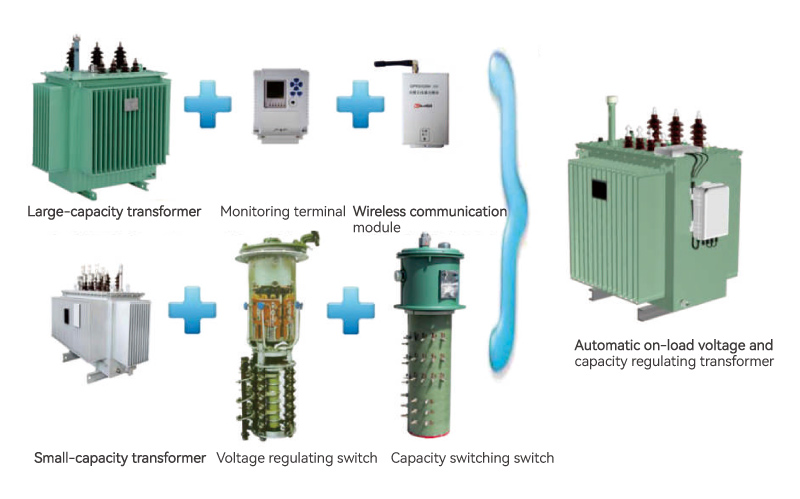

Function Diagram of Automatic On-Load Voltage and Capacity Regulating Distribution Transformer

Expected Benefits of Capacity and Voltage Regulating Transformers

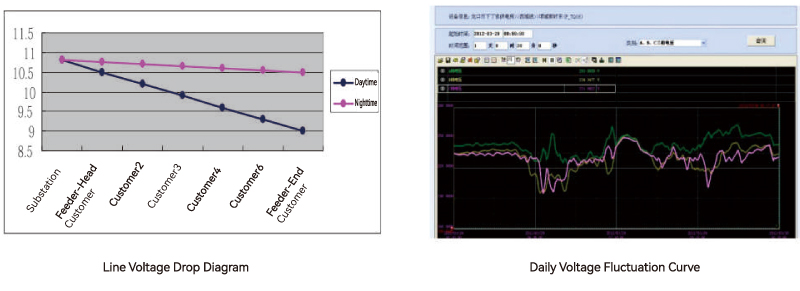

Improved Voltage Quality

Automatic on-load voltage regulation compensates for line voltage drops and load fluctuations, reducing overvoltage and undervoltage risks while improving voltage compliance and power quality.

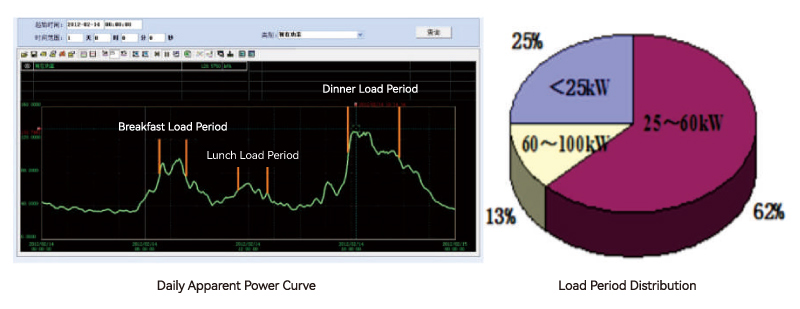

Reduced No-Load Loss

Automatic capacity regulation enables the transformer to operate at a lower capacity during no-load and light-load periods, significantly reducing no-load loss and improving energy efficiency.

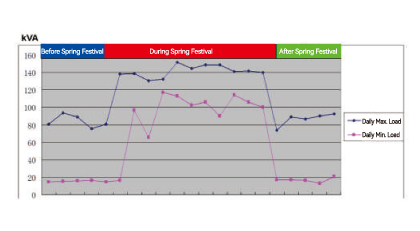

Improved Operating Safety

Capacity regulation helps meet seasonal and peak load demands while reducing no-load loss during low-load periods, supporting safe and efficient transformer operation.

Company Advantages

Main Components

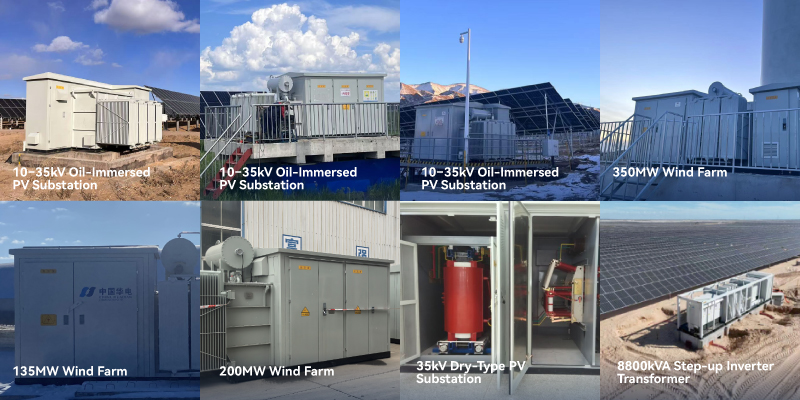

Project Case
