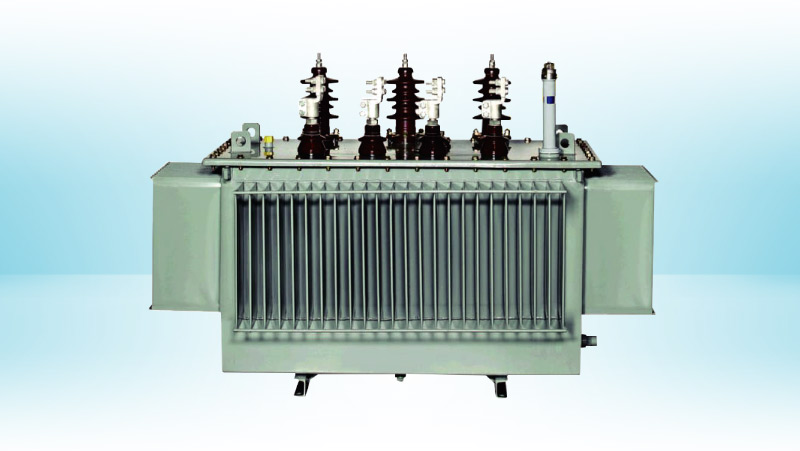

10kV SH15/SH16 Series Amorphous Alloy Oil-Immersed Power Transformers

10kV SH15/SH16 Series Amorphous Alloy Oil-Immersed Power Transformers Overview

The SH15/SH16 series amorphous alloy oil-immersed transformers combine a hermetically sealed design with an amorphous alloy strip core. Featuring low magnetizing loss and 3~6 times higher resistivity than conventional silicon steel, the amorphous alloy core significantly reduces eddy-current losses and achieves up to 60% lower no-load loss than GB/T 6451 requirements. With outstanding energy-saving performance and reliable operation, the series is well suited for modern distribution network upgrades.

Product Features

• The transformer core is made of amorphous alloy strip, delivering exceptionally low no-load current and no-load loss for improved energy efficiency.

• The amorphous alloy core adopts a three-phase, five-limb design, reducing transformer height. The outer limbs provide a flux path for harmonic and zero-sequence flux, helping reduce leakage-reactance voltage drop and improve power quality.

• For ratings above 100kVA, the low-voltage winding uses a cylindrical copper foil structure, while the high-voltage winding uses a multi-layer cylindrical structure. This design ensures balanced ampere-turn distribution and low leakage flux. HV and LV windings are wound under controlled conductor tension and thermally formed to enhance mechanical strength and short-circuit withstand capability.

• The active part adopts a non-core-lifting design and is processed through vacuum drying and vacuum oil filling. The transformer is equipped with a hermetically sealed tank without oil conservator.

• The sealed design isolates the insulating oil and insulation system from ambient air. No oil replacement is required under normal operating conditions, reducing maintenance requirements and extending service life.

• The additional investment compared with conventional silicon steel core transformers can typically be recovered within approximately three years through lower energy losses and operating costs.

Company Advantages

Main Components

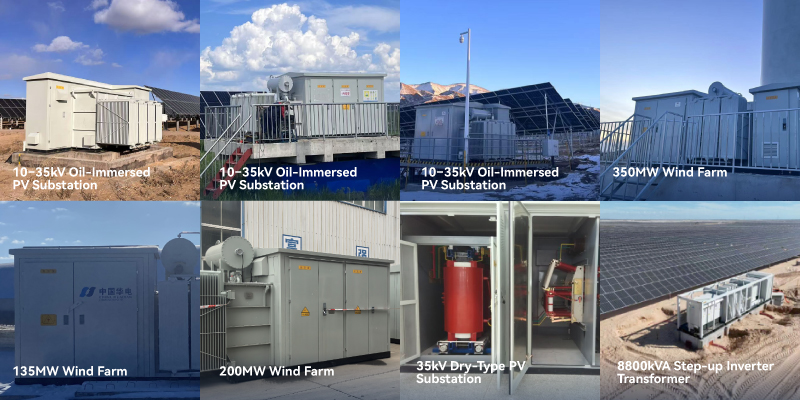

Project Case
