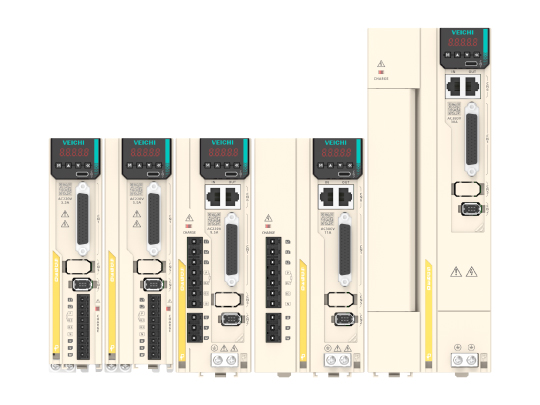

SD900 Series Advanced Universal Servo System

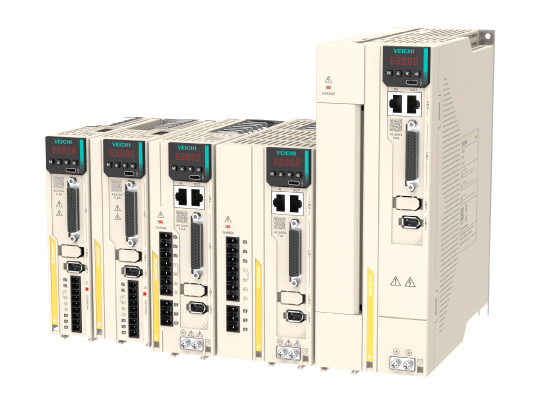

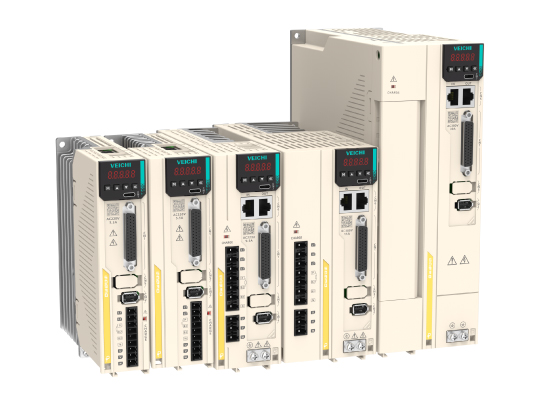

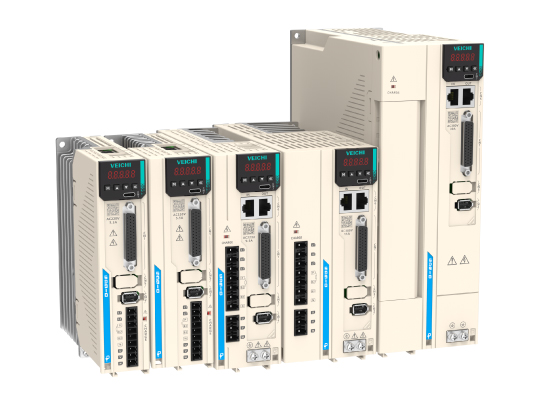

SD900 Series Advanced Universal Servo System Overview

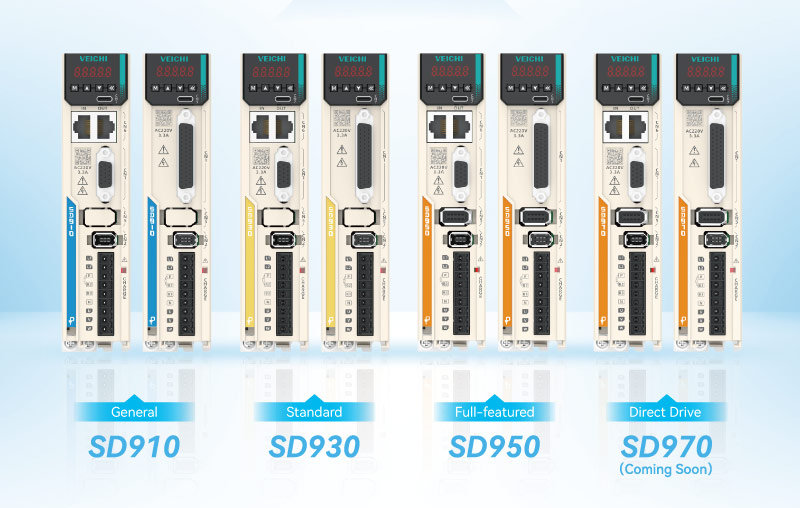

As VEICHI's new-generation high-performance servo system, SD900 series advanced universal servo system covers a power range of 0.05 kW to 7.5 kW. It supports both pulse and EtherCAT control modes, ensuring compatibility with a wide variety of commonly used controllers on the market.

In terms of performance, the system incorporates a novel speed ripple compensation algorithm and achieves a speed loop bandwidth of up to 3.5 kHz, delivering superior dynamic response capabilities. Additionally, it is equipped with advanced self-tuning and resonance auto-identification algorithms, significantly simplifying the installation and commissioning processes.
Furthermore, the system offers flexible integration with 17-bit, 23-bit, and 25-bit multi-turn absolute encoders, providing users with more convenient and extensive options for model selection and adaptation.

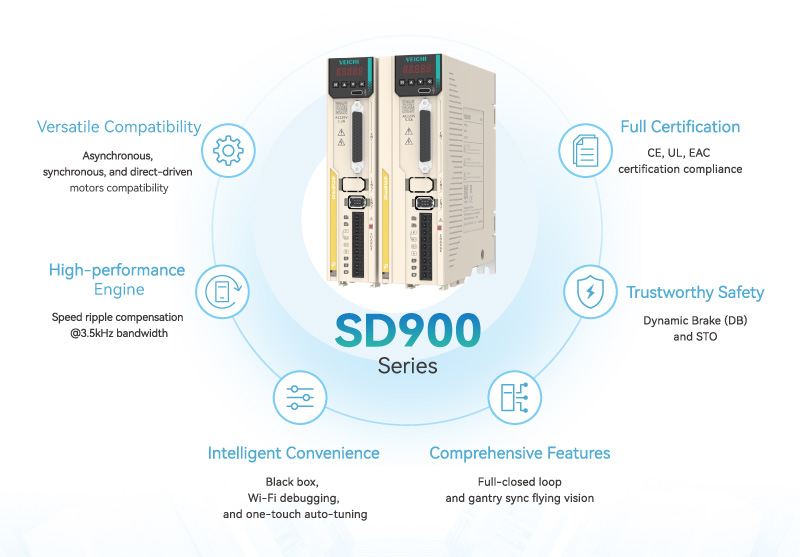

Key Advantages

Versatile Compatibility

Asynchronous, synchronous, and direct-driven motors compatibility.

High-performance Engine

Speed ripple compensation @3.5kHz bandwidth.

Intelligent Convenience

Black box, Wi-Fi debugging, and one-touch auto-tuning.

Comprehensive Features

Full-closed loop and gantry sync flying vision.

Trustworthy Safety

Dynamic Brake (DB) and STO.

Full Certification

CE, UL, EAC certification compliance.

Advantage Description

All-purpose Drive

Asynchronous, synchronous, direct-driven motors compatibility.

Robust Performance

3.5kHz speed loop bandwidth enabling higher efficiency in high-precision, high-response applications like semiconductor packaging inspection, precision engraving, and laser cutting. Note: Speed loop bandwidth is a core performance metric for drives, indicating the fastest speed frequency to which the drive can respond.

Speed Ripple Compensation

New speed ripple compensation algorithm for smoother speed performance.

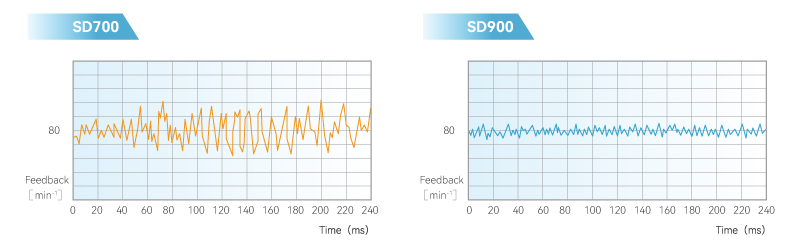

SD700: Speed ripple leads to compromised machining quality and dimensional accuracy.

SD900: Reduced speed fluctuations and smoother motion enhance the quality of the final product.

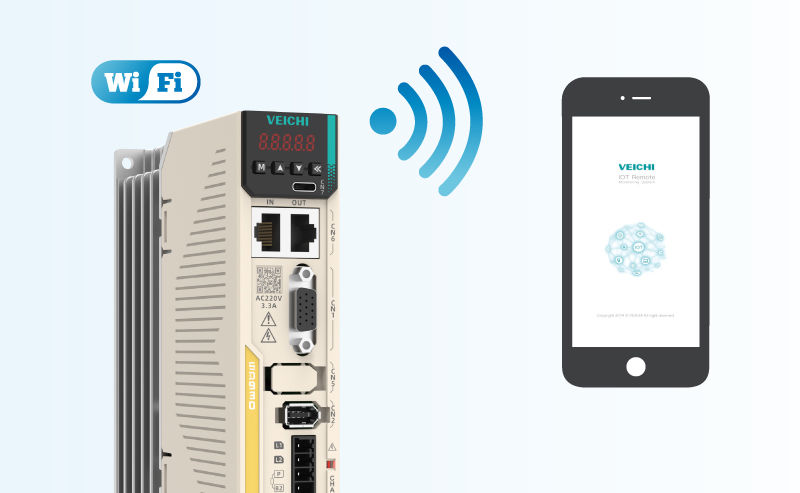

Remote Debug via Wi-Fi

Optional Wi-Fi debugging module allowing for remote modification and parameter optimization.

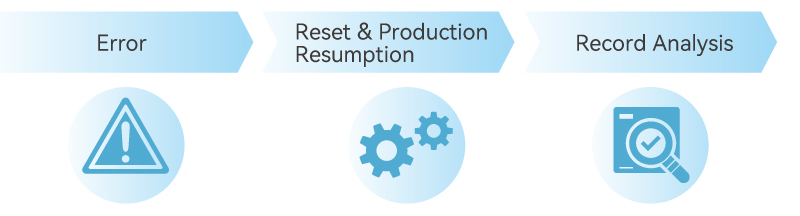

Black Box

The pre-configured black box function with alarm data storage facilitating immediate on-site recovery and subsequent engineering analysis of parameters and waveforms.

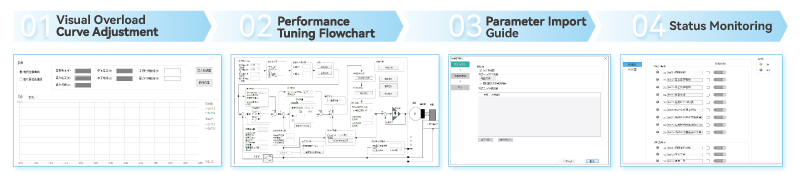

New Servo Software

Various features packed for effortless operation.

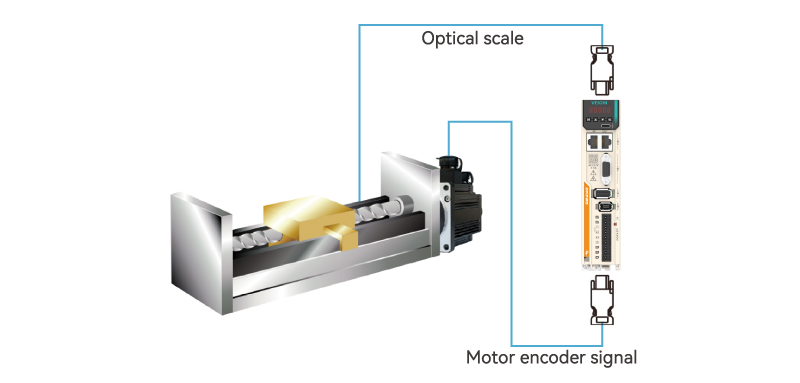

Fully Closed-loop Mode

An external secondary encoder or linear scale available for all models to reduce errors caused by mechanical transmission backlash and improve positioning accuracy.

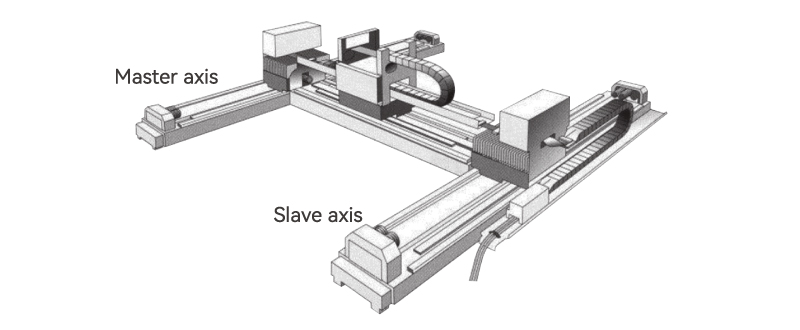

Gantry Suppor

Master-slave drive control scheme, with two axes communicating via a high-speed bus.

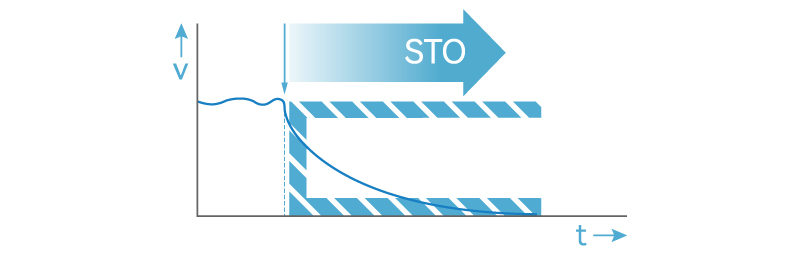

STO (Safety Torque Off)

When the STO function is activated via the terminal, the drive enters a state under which the drive ceases to supply energy required for motor movement, causing motor coasting stop, all compliant with IEC 61508-1 SIL-3 standards.

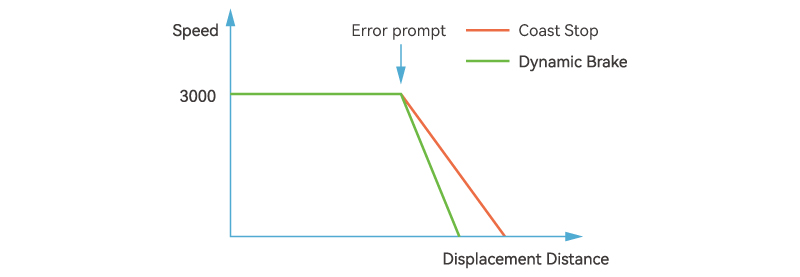

Dynamic Brake (DB)

Instantly PWM output halt during equipment faults to ensure safety.

Full Certifications

Compliance with CE, UL, EAC and other international standards.

Reduced Volume

Smaller hardware and structural design by 25%.

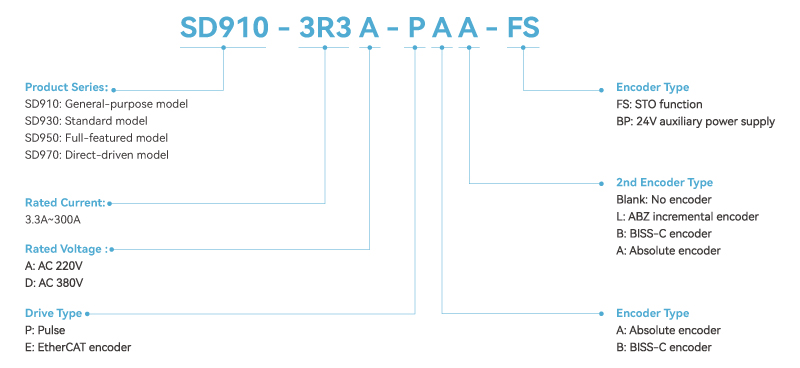

SD900 Servo System Naming Rules

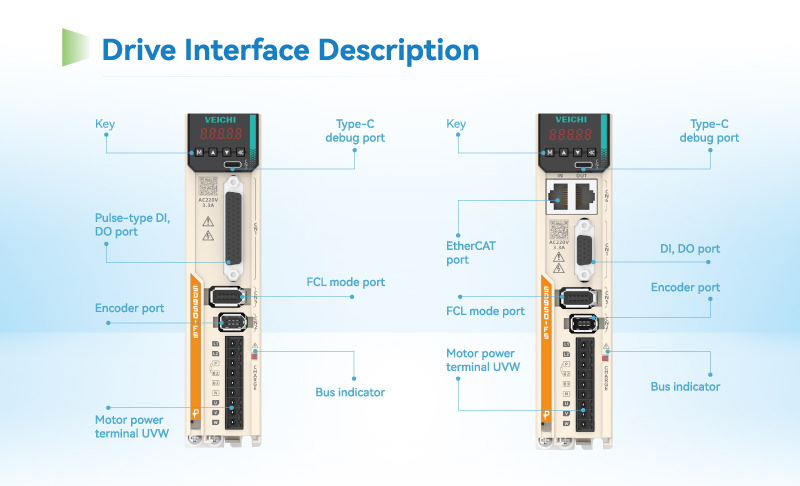

Drive Interface Description

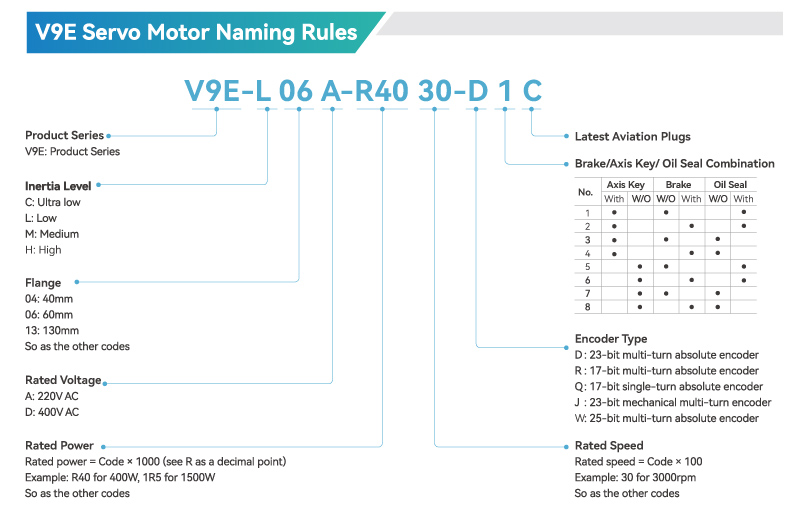

V9E Servo Motor Naming Rules

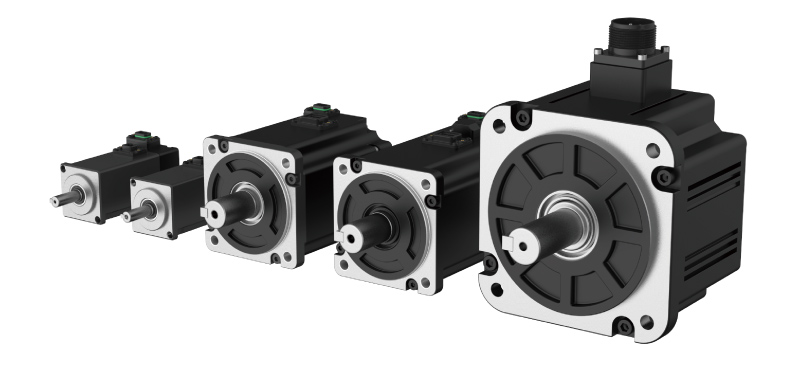

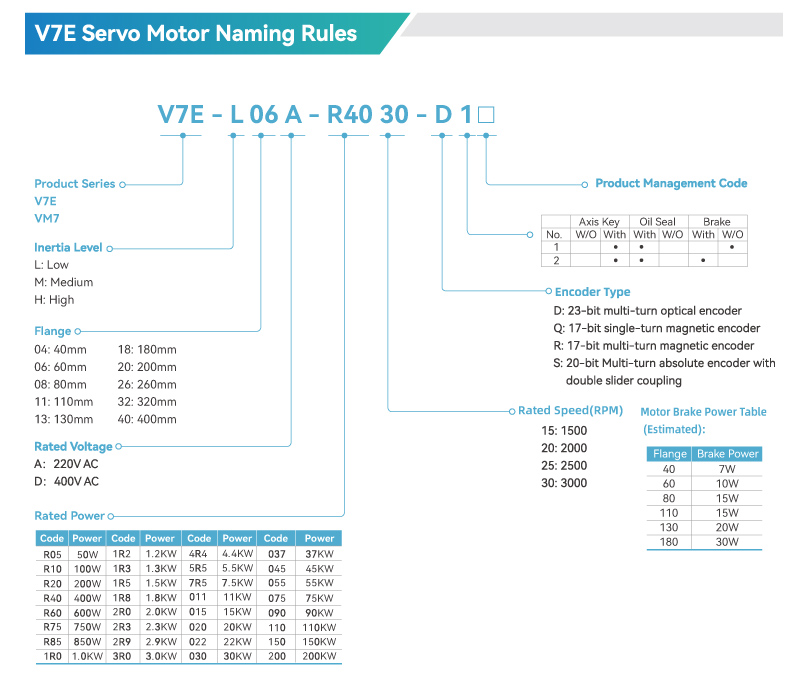

V7E Servo Motor Naming Rules

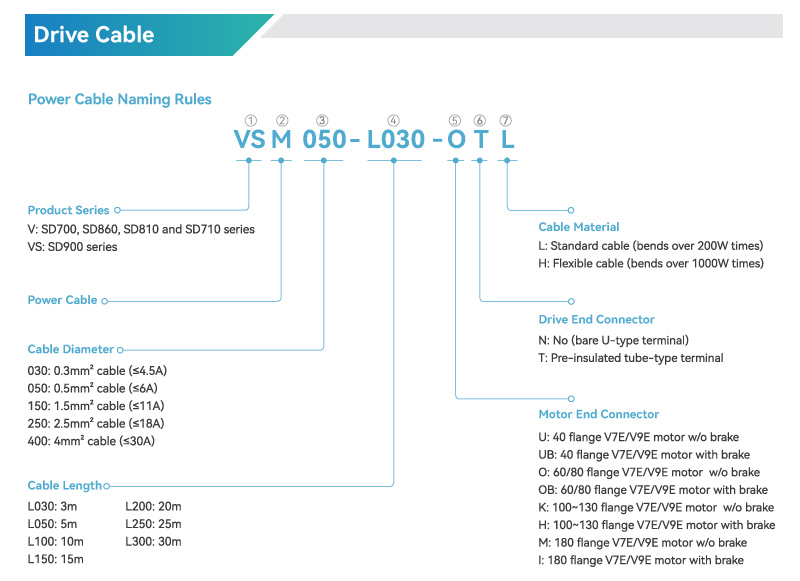

Power Cable Naming Rules

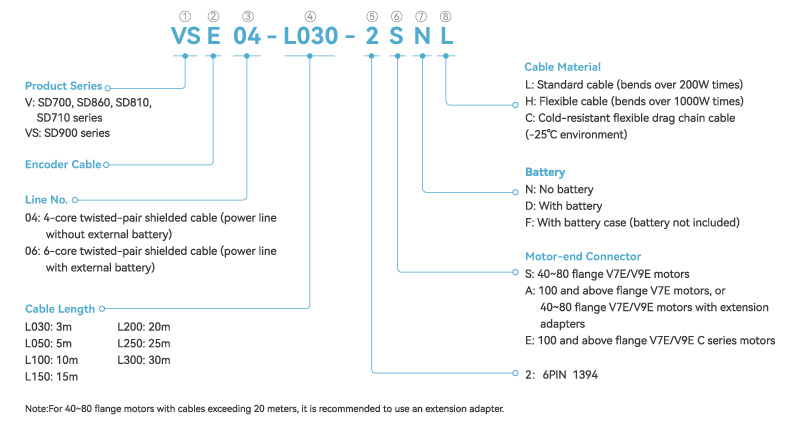

Encoder Cable Naming Rules

Industrial Applications for SD900 Series Advanced Universal Servo System

Automation equipment in industries such as 3C electronics, lithium batteries, photovoltaics, printing and packaging, laser cutting, woodworking, and machine tools.
