  1. Home > Product > Solar Pump System > BLDC Solar Pump System > SIVY Series AC/DC Solar Swimming Pool Pump

SIVY Series AC/DC Solar Swimming Pool Pump

  • 100% copper winding
  • High efficiency PMSM brushless motor
  • Used for both AC and DC power supply
  • Soft start & Auto frequency conversion
Catalogue Contact support Email
  • Features
  • Specifications
  • Downloads
  • Solutions
  • Cases
  • News
  • Related Products
  • Additional Information

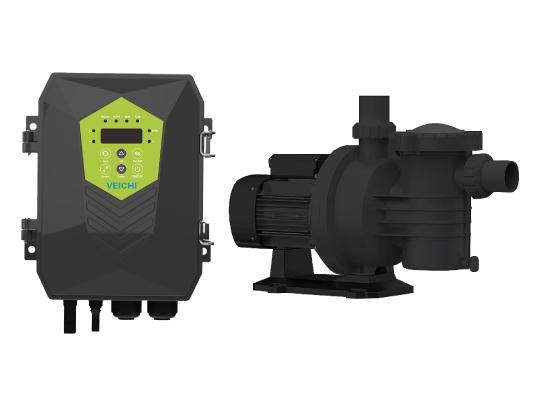

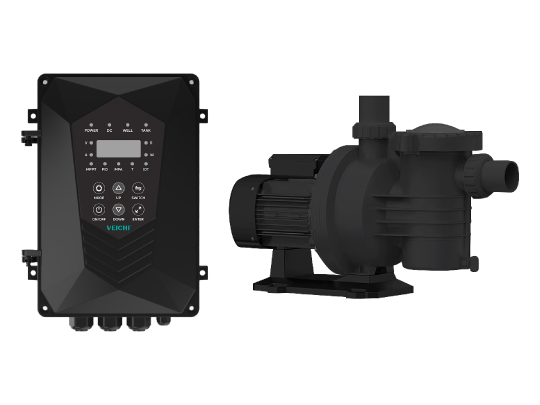

SIVY Series AC/DC Solar Swimming Pool Pump Overview

The SIVY AC/DC solar pool pump delivers energy-efficient filtration for residential and commercial pools/spas using solar power. Compatible with both AC and DC inputs, it integrates a 100% copper-wound PMSM brushless synchronous motor for high efficiency; Designed with IP55 protection, it ensures durability in demanding environments.

Features of MPPT AC/DC Controller

  • Protection class: IP55
  • Ambient temperature:-15℃~60℃
  • Working parameters & fault code on LED screen
  • Soft start & Auto frequency conversion function

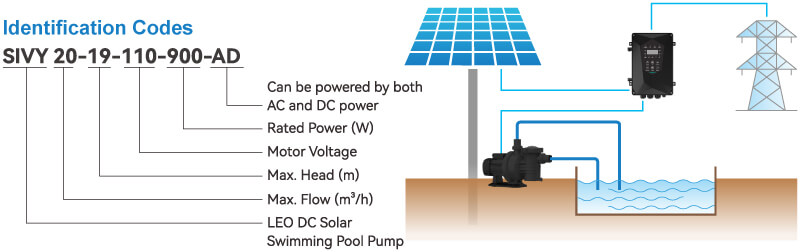

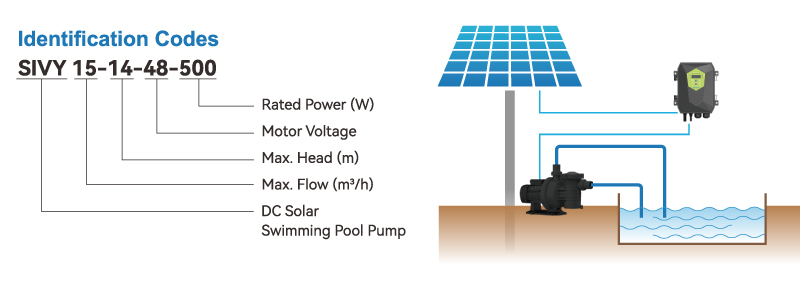

SIVY Identification Codes

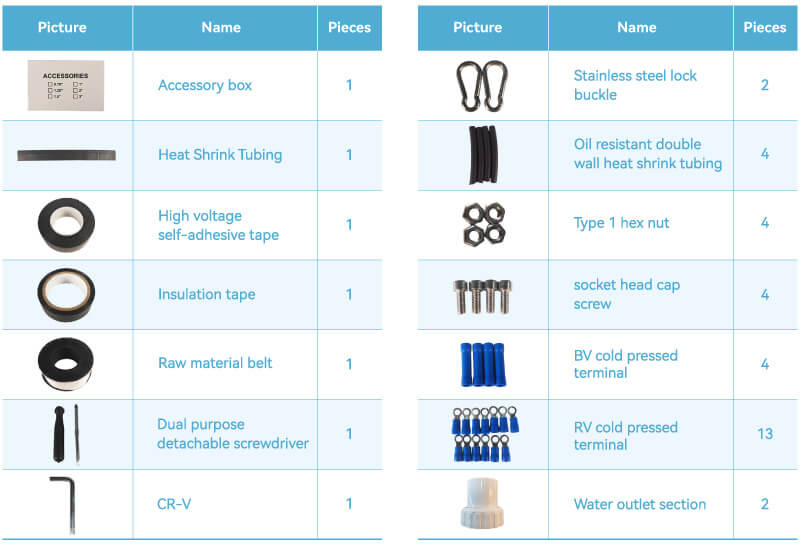

Free Spare Parts

Free spare parts

Hybrid AC/DC Solar Swimming Pool Pump

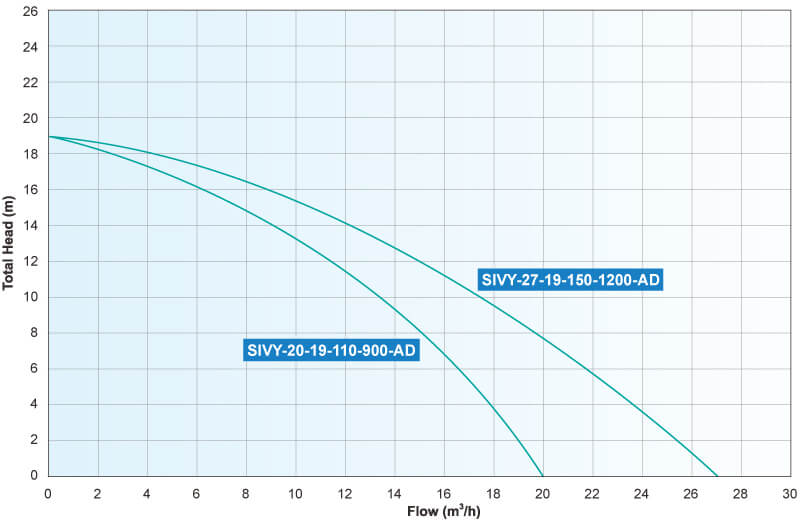

Curve

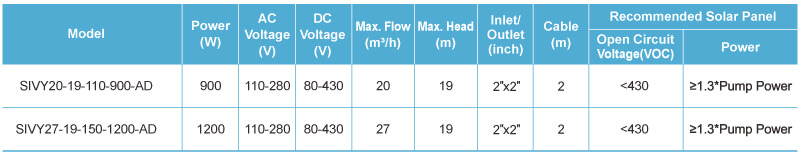

Technical Data

SIVY Technical Data

Industrial Applications for SIVY Series AC/DC Solar Swimming Pool Pump

  • Designed for use in residential and commercial swimming pools and spas.
  • In most pool applications, all of the filtration needs can be met directly from solar panels.

Specifications

Basic Information
Type AC/DC solar swimming pool pump
Brand VEICHI
Temperature -15℃~60 ℃
Protection Class IP55
Technical Data
Model SIVY20-19-110-900-AD/SIVY27-19-150-1200-AD
Power (W) 900/1200
AC Voltage (V) 110~280
DC Voltage (V) 80~430
Max. Flow (m³/h) 20/27
Max. Head (m) 19
Inlet/Outlet 2''x2''
Cable (m) 2
Show more specifications Show less specifications

Downloads

File Name Type Language File Type Update Download
SIxV Series BLDC Solar Pump System Catalog Catalog English PDF 2025-05-21 icon-download 3.5MB
CE of SIxV Series BLDC Solar Pump System Certificate English PDF 2024-08-08 icon-download 3.61MB
SIxV Series BLDC Solar Pump System Manual V1.0 Manual English PDF 2022-01-27 icon-download 4.58MB
