VEICHI SIVP DC Solar Water Pump with Plastic Impeller

SIVP DC Solar Water Pump with Plastic Impeller Overview

DC solar water pumps with plastic impellers are designed for efficient water pumping using solar energy. These solar pumps are environmentally friendly and cost-effective, suitable for various applications such as agriculture irrigation, livestock watering, and domestic water supply in off-grid areas. They typically feature an efficient PMSM brushless motor and are often equipped with an MPPT DC controller to optimize solar energy utilization, ensuring high performance and reliability. The plastic impeller is made from corrosion-resistant material, making these pumps suitable for transporting clean water and for use in different water sources, including wells or reservoirs.

Features of MPPT DC Controller

Protection class: IP55
Ambient temperature:-15~60℃
Working conditions & fault code on LED screen
Auto Start & Stop
Soft start & frequency conversion

Free Spare Parts

3" DC Solar Water Pump with Plastic Impeller

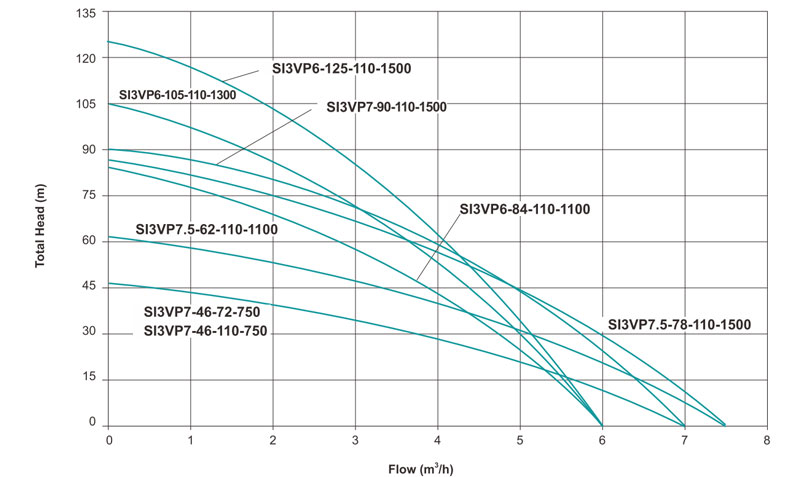

Technical Data

Industrial Applications for SIVP DC Solar Water Pump with Plastic Impeller

Agriculture irrigation, livestock feeding, domestic watering
Clean water supply from wells or reservoirs
Off-grid solar pumping system

Specifications

Basic Information
Categories	DC solar submersible pump
Brand	VEICHI
Type	3 inch and 4 inch solar pump with plastic impeller
Pump Body Material	Stainless steel
Outlet Material	Brass
Impeller Material	Plastic
Package Type	Wooden case
Warranty	2 years
Certificate	CE

Technical Data
Power Range	200-1500W
Related Voltage	DC: 24/48/72/110V
Optimum Input Voltage	60-90v~110-150V
Max Flow	3-20 m³/h
Max Head	25-195m
Outlet	1¼" / 1½”/ 2”inch

Show more specifications Show less specifications

Downloads

File Name	Type	Language	File Type	Update	Download
SIxV Series BLDC Solar Pump System Catalog	Catalog	English	PDF	2025-02-26	15.8MB
