  1. Home > Product > Solar Pump System > BLDC Solar Pump System > SIVG Series DC Solar Water Screw Pump

SIVG Series DC Solar Water Screw Pump

  • MPPT DC controller
  • Highly-precise AIS1304 screw with higher efficiency
  • AISI304 oil chamber and pump barrel
  • NSK bearing
  • Efficient PMSM brushless motor (PMSM: Permanent Magnet Synchronous Motor)
Catalogue Contact support Email
  • Features
  • Specifications
  • Downloads
  • Solutions
  • Cases
  • News
  • Related Products
  • Additional Information

SIVG DC Solar Water Screw Pump Overview

DC solar water screw pumps are efficient solar-powered devices that use a screw mechanism for water displacement. They are driven by a Permanent Magnet Synchronous Motor (PMSM), ensuring high performance and reliability. These pumps are characterized by their ability to handle high heads and are ideal for use in remote or off-grid areas, providing a sustainable solution for water pumping needs.

Features of MPPT DC Controller

  • Protection class: IP55
  • Ambient temperature:-15~60℃
  • Working conditions & fault code on LED screen
  • Auto Start & Stop
  • Soft start & frequency conversion

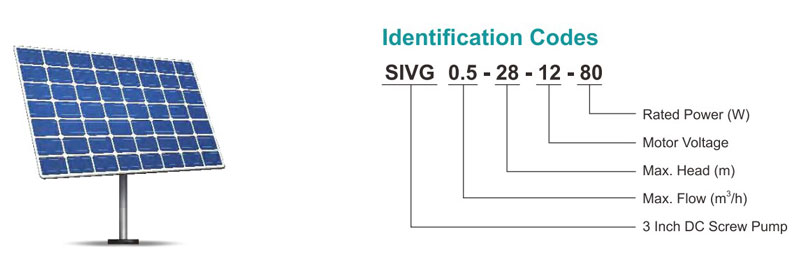

SIVG-identification-code

Free Spare Parts

free spare parts

3" DC Solar Screw Pump

3" DC Solar Screw Pump

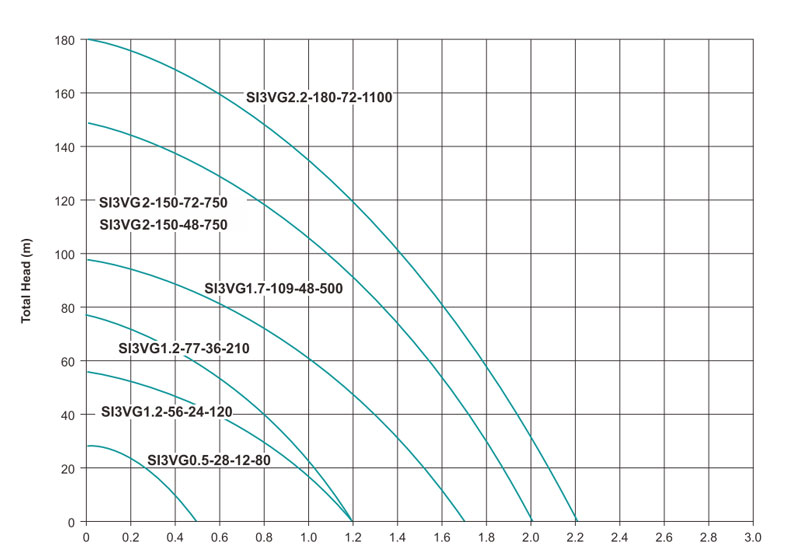

Technical Data

Industrial Applications for SIVG DC Solar Water Screw Pump

  • Agriculture irrigation, livestock feeding, domestic watering
  • Clean water supply from wells or reservoirs
  • Off-grid solar pumping system

Specifications

Basic Information
 Categories DC solar submersible pump
Brand VEICHI
Type Screw type solar submersible pump
Material Stainless steel
Package Type Wooden case
Warranty 2 years
Certificate CE

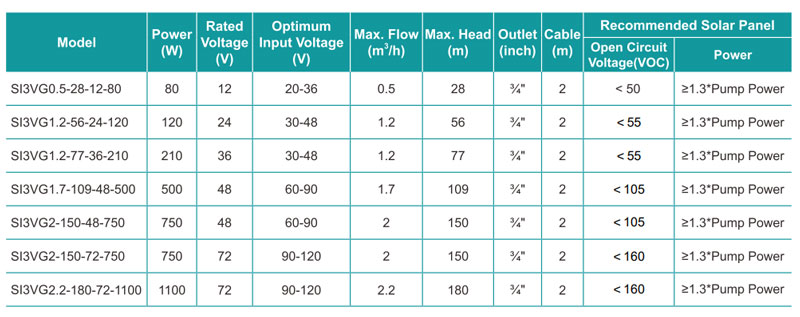

Technical Data
 Power Range 80-1100W
Related Voltage DC: 12/24/36/48/72V
Optimum Input Voltage 20-36v~90-120V
Max Flow 0.5-2.2 m3/h
Max Head 28-180m
Outlet ¾"  inch
Show more specifications Show less specifications

Downloads

File Name Type Language File Type Update Download
SIxV Series BLDC Solar Pump System Catalog Catalog English PDF 2025-08-14 icon-download 6.45MB
CE of SIxV Series BLDC Solar Pump System Certificate English PDF 2024-08-08 icon-download 3.61MB
SIxV Series BLDC Solar Pump System Manual V1.0 Manual English PDF 2022-01-27 icon-download 4.58MB
