SIVY Series DC Solar Swimming Pool Pump

  • 100% copper winding
  • High efficiency PMSM brushless motor
  • Protection class: IP55
  • Soft start & Auto frequency conversion
Catalogue Contact support Email
  • Features
  • Specifications
  • Downloads
  • Solutions
  • Cases
  • News
  • Related Products
  • Additional Information

SIVY Series DC Solar Swimming Pool Pump Overview

Designed for residential and commercial pools/spas, the SIVY DC solar swimming pool pump meets all filtration needs through solar panel compatibility. Featuring a 100% copper winding and high-efficiency PMSM brushless synchronous motor, it ensures energy-saving performance with soft start and auto frequency conversion. The IP55-rated housing withstands harsh environments (-15℃ to 60℃), while the LED display provides real-time parameter monitoring and fault diagnostics.

Features of MPPT DC Controller

  • Protection class: IP55
  • Ambient temperature:-15℃~60℃
  • Working parameters & fault code on LED screen
  • Soft start & Auto frequency conversion function

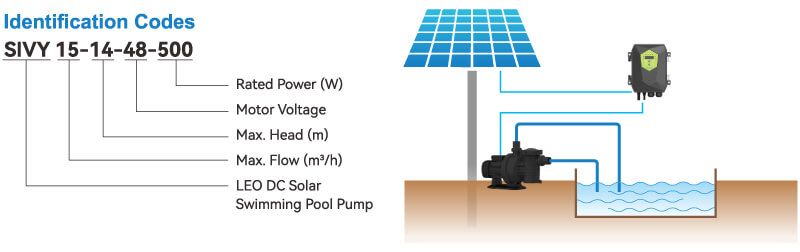

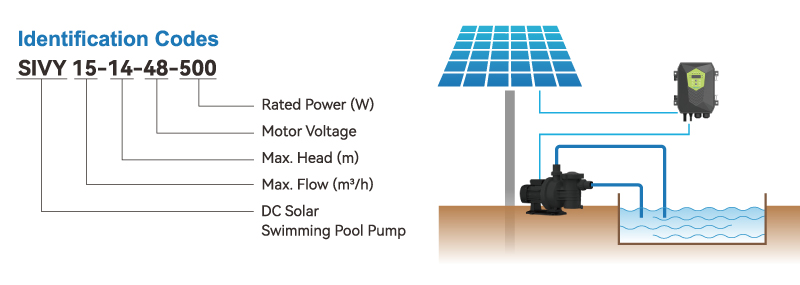

SIVY DC Identification Codes

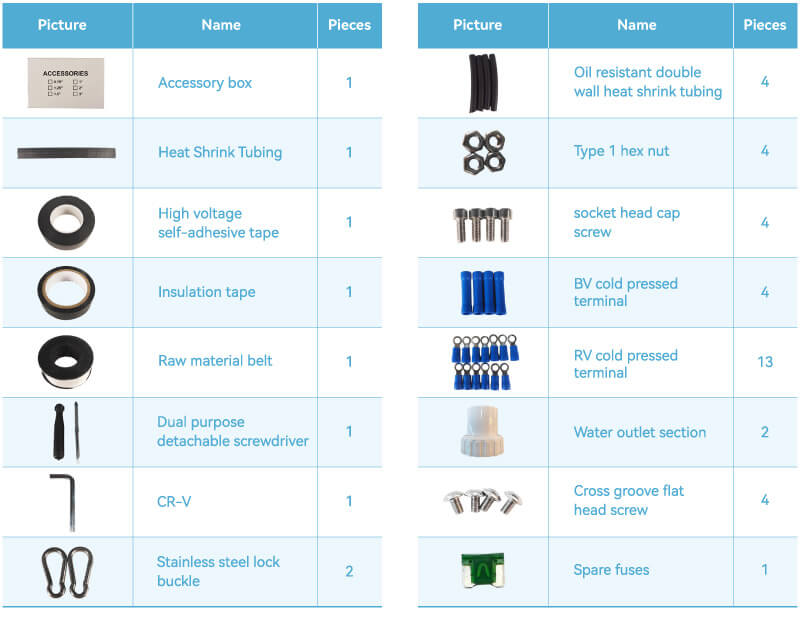

Free Spare Parts

Free Spare Parts

DC Solar Swimming Pool Pump

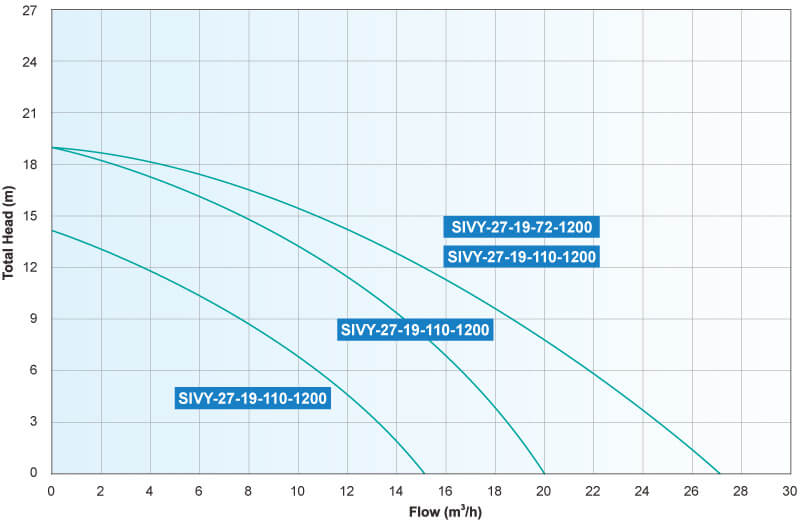

DC Curve

Technical Data

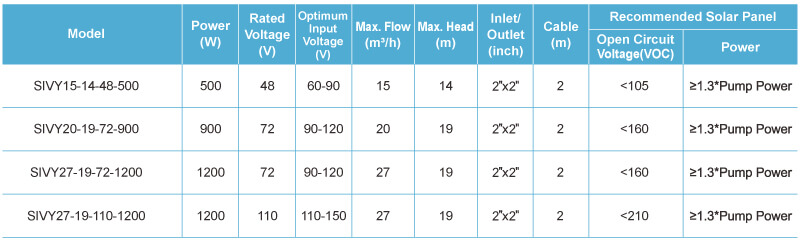

SIVY DC Technical Data

Industrial Applications for SIVY Series DC Solar Swimming Pool Pump

  • Designed for use in residential and commercial swimming pools and spas.
  • In most pool applications, all of the filtration needs can be met directly from solar panels.

Specifications

Basic Information
Type DC solar swimming pool pump
Brand VEICHI
Temperature -15℃~60 ℃
Protection Class IP55
Technical Data
SIVY15-14-48-500 Power: 500W
Rated Voltage: 48V
Optimum Input Voltage: 60V~90V
Max. Flow: 15m³/h
Max. Head: 14m
Inlet/Outlet: 2''x2''
Cable: 2m
SIVY20-19-72-900 Power: 900W
Rated Voltage: 72V
Optimum Input Voltage: 90V~120V
Max. Flow: 20m³/h
Max. Head: 19m
Inlet/Outlet: 2''x2''
Cable: 2m
SIVY27-19-72-1200 Power: 1200W
Rated Voltage: 72V
Optimum Input Voltage: 90V~120V
Max. Flow: 27m³/h
Max. Head: 19m
Inlet/Outlet: 2''x2''
Cable: 2m
SIVY27-19-110-1200 Power: 1200W
Rated Voltage: 110V
Optimum Input Voltage: 110V~150V
Max. Flow: 27m³/h
Max. Head: 19m
Inlet/Outlet: 2''x2''
Cable: 2m
Show more specifications Show less specifications

Downloads

File Name Type Language File Type Update Download
SIxV Series BLDC Solar Pump System Catalog Catalog English PDF 2025-05-21 icon-download 3.5MB
CE of SIxV Series BLDC Solar Pump System Certificate English PDF 2024-08-08 icon-download 3.61MB
SIxV Series BLDC Solar Pump System Manual V1.0 Manual English PDF 2022-01-27 icon-download 4.58MB
