Port Crane Electrical Control Systems Solution
GT Electric develops, integrates and delivers complete electrical control systems for port cranes operating at container terminals, bulk terminals, shipyards and heavy-industry facilities. We design for precise motion control, equipment safety, reliable communication and maintainability, covering control, drive, field equipment, monitoring and on-site commissioning.
Features and Benefits
Business Overview
Our solutions support new crane installations, modernization of in-service equipment, replacement of imported control platforms, network reconfiguration, drive upgrades and commissioning. Each system is adapted to the crane type, operating duty and existing architecture, balancing performance, reliability, cost and long-term serviceability.
We provide end-to-end support—from system design, component selection and cabinet assembly through installation, integration testing and final acceptance—for portal cranes, STS cranes, RTGs, RMGs, ship loaders and unloaders, stacker-reclaimers and shipbuilding gantry cranes.
Equipment Applications
Our systems can be configured to suit different crane structures, handling processes and operating requirements. Typical equipment includes:
• Ship-to-shore (STS) crane
• Rubber-tyred gantry crane (RTG)
• Rail-mounted gantry crane (RMG)
• Portal cranes and ship unloaders
• Ship loader
• Stacker-reclaimer
• Shipbuilding gantry (Goliath) crane
• Other port cranes and heavy lifting equipment
Container terminals: Quayside loading and unloading, yard transfers, container stacking and internal transport.
Bulk terminals: Handling, conveying, stacking and reclaiming coal, ore, grain and other bulk cargo.
Shipyards and heavy industry: Lifting, assembling and transferring large structural components.
Demanding overseas sites: High humidity, salt-laden air and intensive, continuous-duty operation.
System Architecture
Our system architecture is built around five priorities: stable control, accurate motor drives, reliable communications, safety interlocks and easy maintenance. It connects the control, drive, field equipment, sensing and operator-monitoring functions.
1. Control Layer
Proven PLC platforms manage equipment logic, safety interlocks, coordinated motions and system communications. The architecture can be adapted to an existing customer platform or a new project's requirements.
2. Drive Layer
Variable-frequency drives (VFDs), multi-drive systems and active front-end (AFE) units provide precise speed and torque control and energy management for hoisting, grab opening and closing, luffing, slewing, crane travel, trolley travel, boom raising and lowering, and feeding mechanisms.
3. Sensing Layer
Absolute and incremental encoders, limit switches, weighing systems and position sensors capture critical signals—including position, speed, load and equipment orientation—to support reliable control and protection.
4. Operator Interface & Monitoring Layer
Operator consoles, touchscreens, cab-based I/O stations and supervisory control systems display equipment status, provide parameter settings and fault diagnostics, and support coordinated operation and maintenance.
5. Communication Network Layer
Industrial communication technologies—including EtherCAT, PROFINET, PROFIBUS, Modbus and industrial Ethernet—connect controllers, distributed I/O stations, drives, encoders and peripheral equipment.
Multi-Platform Integration
Port operators often manage equipment from different suppliers and generations. We can upgrade selected parts of an existing system while retaining compatible infrastructure, or supply a complete electrical control platform for a new crane.
We support integration with a range of established control and drive platforms, including:
• VEICHI: VH600 PLC, VH distributed I/O stations, AC800 AFE and multi-drive systems, CH310 crane-duty VFDs
• Siemens: S7-1500, S7-1200, ET 200SP, SINAMICS S120/G120
• ABB: AC800M, ACS800/ACS880
• GE: RX3i, VersaMax
• Yaskawa: H1000, A1000
• Schneider Electric: Modicon series
• Rockwell Automation (Allen-Bradley): ControlLogix 1756 series, PowerFlex 755
Whether the priority is extending the service life of an imported system, replacing selected components or rebuilding the full control architecture, we tailor the retrofit to the crane's condition, operating requirements and investment goals.
Key Features & Benefits
1. High-Precision Motion Control
Accurate, smooth speed regulation and coordinated motion control for hoists, luffing, slewing, gantry travel, trolley travel, boom movement and feeders—even under changing load conditions.
2. Coordinated Motion & Safety Interlocks
PLC logic and distributed control coordinate crane mechanisms, enforce operating interlocks and monitor equipment status to support safe, synchronized operation.
3. Reliable Industrial Communications
Industrial networks are designed for real-time transmission of commands, feedback and drive signals across large cranes with long cable runs and multiple I/O stations.
4. Fault Diagnostics & Easy Maintenance
Clear fault alarms, operating-status displays and parameter access help maintenance teams identify issues promptly and reduce unplanned downtime.
5. Energy Optimization and Regenerative Control
AFE units, regenerative drives and optimized control strategies can recover usable energy and reduce electrical and thermal losses.
6. Upgrade Flexibility & Localized Alternatives
We can retain selected PLCs, networks or peripheral devices while replacing VFDs, upgrading cabinets, restoring communication compatibility and improving control functions—a practical path to locally supported technology.
Solutions by Crane Type


Ship-to-Shore (STS) Crane Electrical Control System Solutions (Container Handling)
For ship-to-shore (STS) cranes, we integrate hoist, trolley, boom, gantry, spreader and auxiliary controls. High-performance drives, stable industrial networks, synchronized motions and distributed I/O are configured for the demanding duty cycles and complex motion coordination of quayside container handling.
Multiple PLC and drive combinations are available for new installations, legacy-platform upgrades and localization projects. Configurations can support dual-hoist synchronization, coordinated gantry and hoist operation, trolley and boom control, crane-wide safety interlocks and operating-status monitoring.
• Designed for high-speed, high-frequency and heavy-duty STS operation
• Dual-hoist synchronization and constant-power control
• Common DC-bus multi-drive systems with regenerative rectification
• Distributed control architecture with multiple I/O stations
• Modernization of imported platforms and locally sourced alternatives

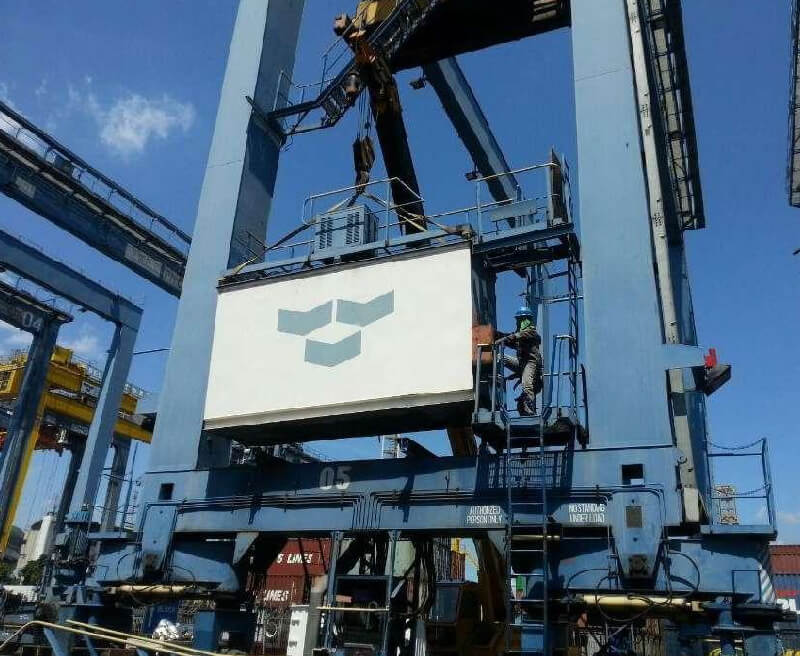

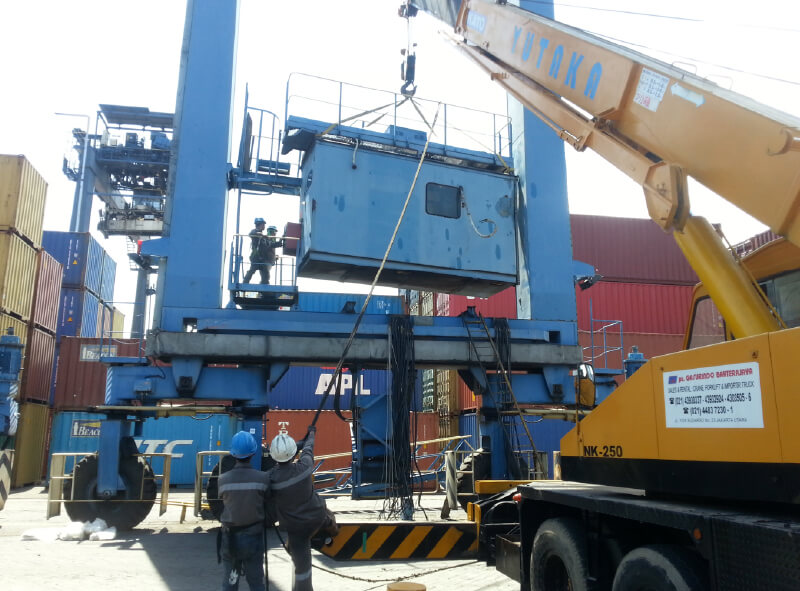

Rubber-Tyred Gantry (RTG) Crane Electrical Control System Solutions (Container Handling)
Our RTG control systems cover hoisting, trolley and gantry travel, operator cabins, E-houses and energy systems. Solutions can be configured for conventional diesel-powered RTGs, hybrid RTGs, fully electric RTGs and battery retrofit projects.
Available power architectures include diesel generation, grid supply, conductor-bar charging, battery storage and regenerative energy recovery. Coordinated control of hoist, trolley and gantry motions and distributed I/O supports stable operation during stacking, yard handling and travel between container blocks.
• Solutions for conventional RTGs, hybrid/electric RTGs and battery retrofits
• Diesel, grid, conductor-bar and battery power options
• Coordinated hoist, trolley and gantry travel control
• Integration of locally sourced control platforms and new-energy systems
• Supports energy-efficiency and port electrification projects

Rail-Mounted Gantry (RMG) Crane Electrical Control System Solutions (Container Handling)
Our RMG systems cover hoists, trolleys, gantry drives, cable reels, spreaders, cabins and auxiliary equipment. Precise positioning, encoder feedback and robust communications support manual, semi-automated and automated yard operations.
The systems can combine different PLC and drive platforms to support dual-hoist control, multi-motor gantry travel, accurate trolley positioning and synchronized cable-reel operation. They can also integrate with remote operating systems, automated dispatch and yard management platforms.
• Suitable for high-density container yards with fixed rail tracks
• Accurate positioning with encoder feedback
• Coordinated multi-motor gantry travel and cable-reel operation
• Expandable to remote and semi-automated or automated operation
• Locally sourced control systems for new installations and retrofits



Portal Crane Electrical Control System Solutions (Bulk & Breakbulk Cargo Handling)
We supply complete electrical controls for general-purpose and grab-type portal cranes, including hoisting, grab opening and closing, luffing, slewing and travel mechanisms. Depending on crane capacity, outreach, cargo and duty cycle, configurations may include high- or low-voltage power supply, single- or multi-drive systems, AFE regeneration, open- or closed-loop control and emergency operating modes.
For general cargo, bulk cargo and shipyard lifting, we customize drives, encoder feedback, coordinated control logic, cabinet layouts and emergency operation to match crane structure and established operator workflows.

Ship Unloader Control Systems(Bulk & Breakbulk Cargo Handling)
Our ship-unloader solutions coordinate trolley, boom luffing, hoisting, gantry travel, cabin travel, belt feeders, vibratory feeders and cable reels. They are designed for continuous heavy-duty bulk handling, large equipment spans and responsive multi-mechanism control.
Depending on the project, distributed networks can link the main PLC, remote I/O, operator cabin, hopper room and auxiliary cabinets. Absolute encoders, weighing systems and operator interfaces support positioning, stable feeding and straightforward operation.

Stacker-Reclaimer Control Systems(Bulk & Breakbulk Cargo Handling)
For stacker-reclaimers handling coal, ore and grain, we integrate controls for slewing, luffing, gantry travel, bucket wheels, boom conveyors, tail conveyors and cable reels. Designs account for large travel distances, continuous material handling, complex process interlocks and demanding outdoor conditions.
Control architectures can be adapted to Rockwell Automation, Schneider Electric, ABB, VEICHI and other platforms to support reliable operation, maintenance and future expansion.

Ship Loader & Bulk-Terminal Control Systems(Bulk & Breakbulk Cargo Handling)
We also deliver electrical control systems for ship loaders and other bulk-terminal conveying and handling equipment. Drive systems, communication networks, monitoring displays and safety interlocks are tailored to each material-handling process and equipment design.

Technologies & Engineering Features
1. Active Front-End (AFE) & Multi-Drive Systems
Active front-end rectification and multi-drive control help improve energy efficiency and dynamic response in high-power cranes with several coordinated mechanisms.
2. Closed-Loop & Synchronized Motion Control
Absolute encoders, speed feedback and closed-loop vector control provide precise hoisting, slewing and luffing control, with options for multi-motor synchronization, torque balancing and position compensation.
3. Emergency Operating Modes
Emergency operating modes can be designed to retain essential crane functions if a rectifier or selected drive component fails, subject to the safety requirements of the equipment.
4. Long-Distance Cabling & EMC Design
For cranes with distributed control points, long cable routes and high electromagnetic interference, we optimize cabinet layout, grounding, communications isolation and electromagnetic compatibility (EMC).

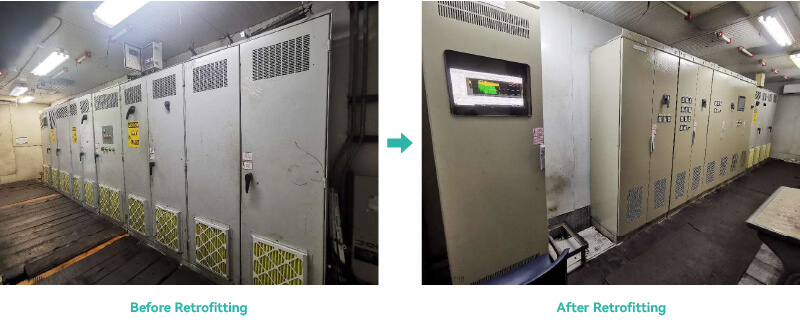

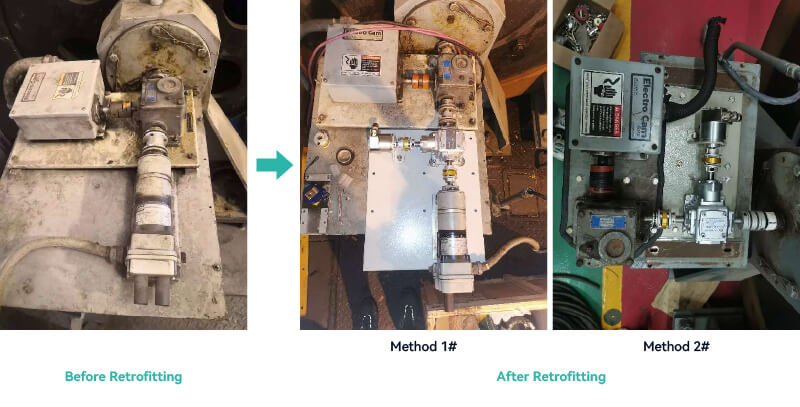

5. Modernization of Imported Systems
Communication modules, protocol integration, cabinet renewal and parameter reconfiguration can enable replacement of obsolete imported drives while retaining compatible PLCs and field devices.

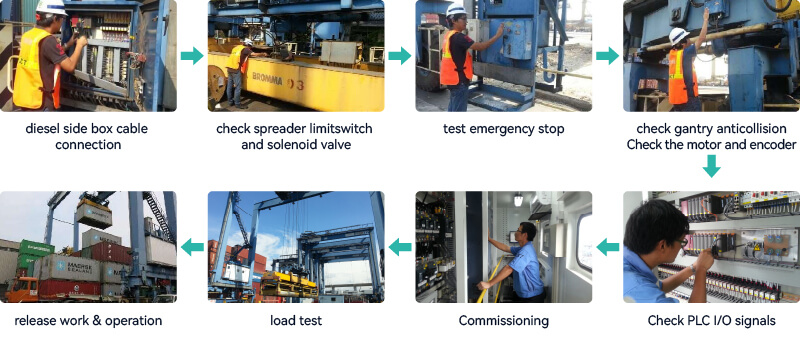

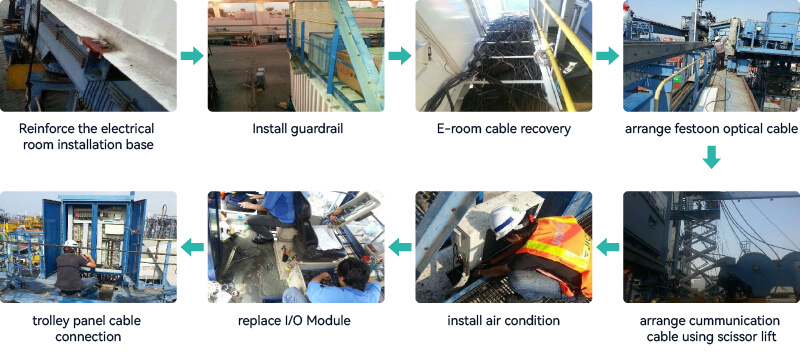

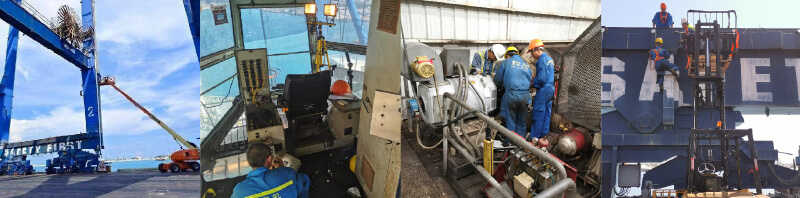

Engineering, Installation & Commissioning
Our work extends beyond system engineering and cabinet integration to on-site installation, commissioning and project management. We plan installations and cutovers around crane access, operating schedules, limited shutdown windows and site constraints.
• Site surveys and operating-process analysis
• Control-system engineering and component selection

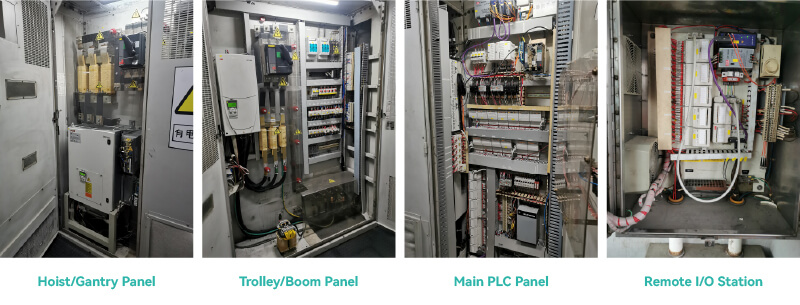

• Integration of control cabinets, E-houses and operator consoles
• Network reconfiguration and on-site cable routing
• Legacy-system replacement, phased cutover and commissioning
• Integrated testing, trial operation and acceptance support
• Maintenance services and future system upgrades
Customer Benefits
Our goal is not simply to make a crane operate again, but to keep it dependable, maintainable and ready for future upgrades. Our electrical control solutions are designed to deliver the following customer benefits:
• Improve crane availability and handling productivity
• Reduce equipment faults and unplanned downtime
• Reduce dependence on imported spare parts and maintenance expenditure
• Improve long-term control over core systems and upgrade options
• Prepare cranes for future automation and electrification
Reliable Controls for Productive Ports
We will continue refining our port crane electrical control solutions for precision, reliability, platform compatibility and successful project delivery, helping operators run equipment more efficiently and consistently over the long term.
