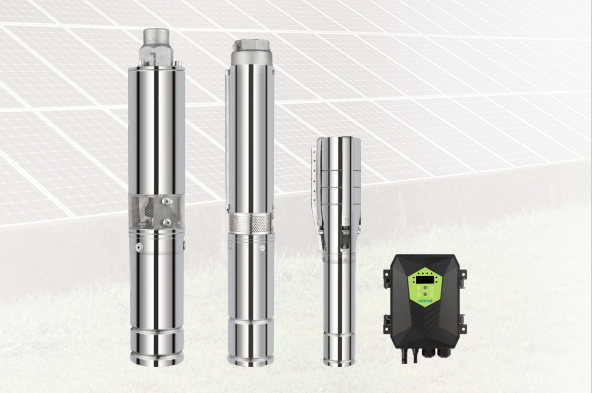

SIxV Series BLDC Solar Pump System
- Easy installation &operation and low installation & maintenance cost;
- High protection class IP55 ensure the reliability;
- High Efficiency with real MPPT function;
- Various kinds of protections and special functions for solar pumping system;
- Guarantee 2-year warranty for the customers all over the world;
- Automatically start/stop with float switch according to sunrise and sunset;
Catalogue
Contact support

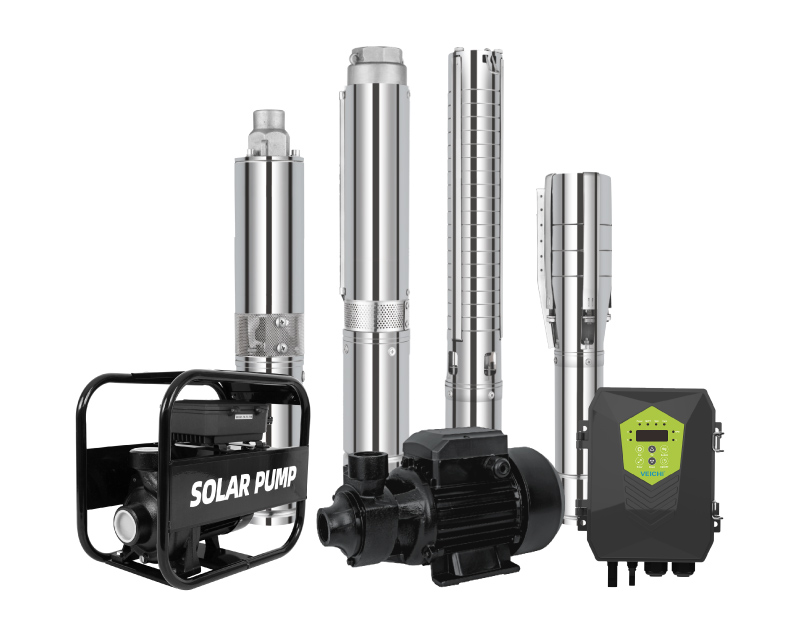

EmailBLDC Solar Water Pump System Overview
VEICHI Brushless solar water pumping system will transform the solar energy from the sun to drive small power pumps and pump water for different kinds of applications. It is widely used in agricultural irrigation, water supply, livestock, etc. Aiming to make it simple for farmers, VEICHI provides system package solution including solar pump controller, bldc solar pump and necessary accessories to supports two-year warranty.
Advantages of Solar Powered Water Pumping System
1. Reduce the distance between us and clean water.
2. Lift fresh water from deep underground to irrigate fruit, contributes to better fruit quality.
3. Providing much more reliable and efficient water supply for livestock.
4. Very economical & Worry-free way to circulate pool water.
Features of MPPT Solar Water Pump Inverter
- High efficiency with MPPT function.
- Specially designed for solar pumping system.
- Easy installation & Low installation cost.
- Easy operation & Low maintenance cost.
- Protection class: IPSS.

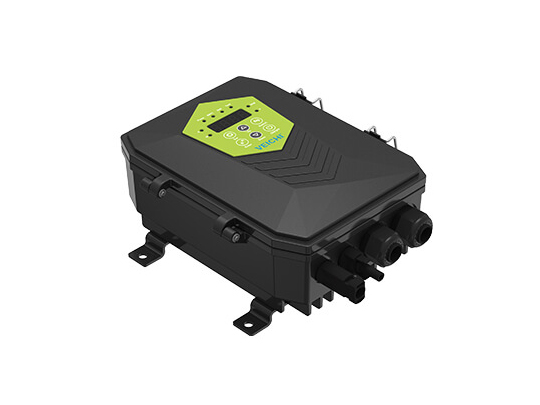

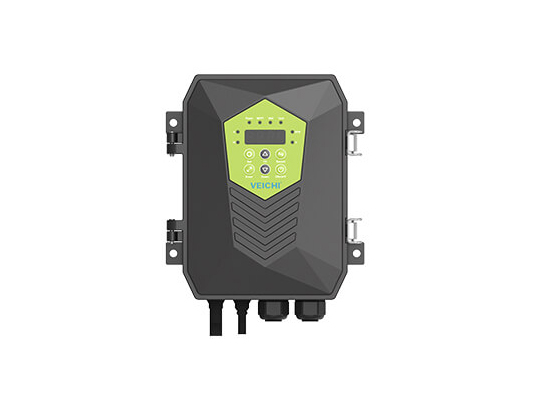

Multi Functions of DC Solar Water Pump Controller
- MPPT: Increase the solar power utilization rate.
- LED Screen displays Real time working condition: Output Power, Output Voltage, Current, Pump peed & Error code.
- Auto Frequency Conversion function: Can automatically adjust the speed／rpm according to solar power strength, user can adjust the pump speed/rpm manually.
- Auto On/Off (with float switch).
- Soft Start: No impulse current, protect pump motor. No water hammer, protect the whole plumbing system.
- Multi-protection: Dry－run protection, Over-voltage protection, Over-current protection. High-temperature protection (reduce rpm when the inner temperature got 79℃）, Output phase lose protection.

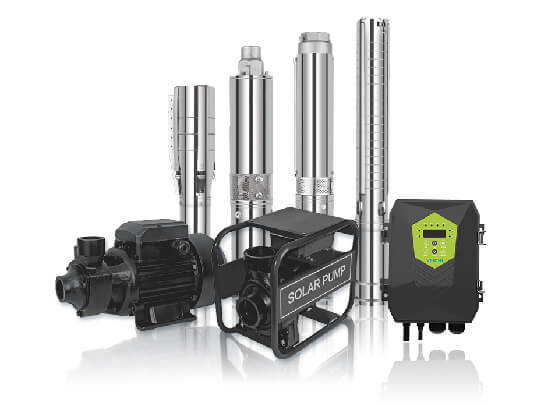

Types of Solar Water Pump
1. DC Solar Centrifugal Water Pump
2. DC Solar Peripheral Water Pump
3. DC Solar Screw Pump
4. DC Solar Pump with Plastic Impeller
5. DC Solar Pump with SS Impeller

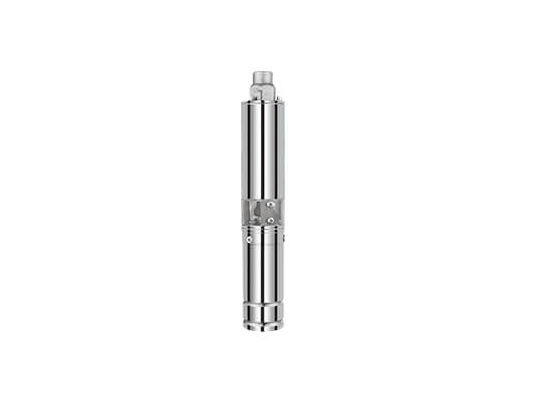

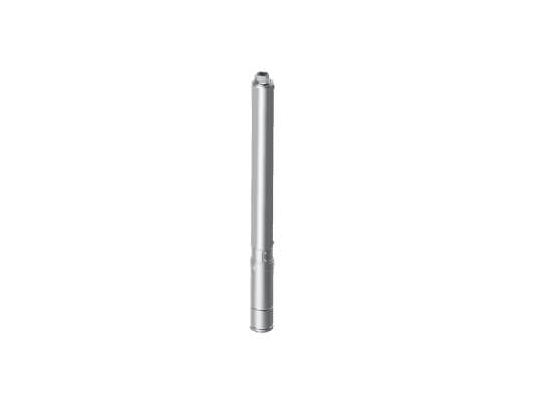

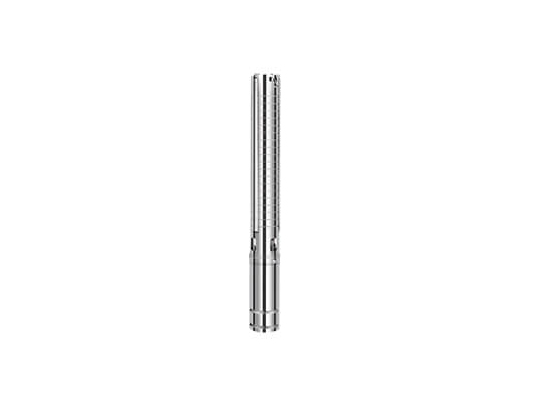

Features of BLDC Solar Water Pump
1. MPPT DC controller.
2. High efficiency PMSM bruless motor.(PMSM: Permanent Management Synchronous Motor).
3. NSK Bearing.
4. Motor: IP68.
5. Advanced fluid technology.
BLDC Solar PV Water Pumping System Video
Industrial Applications for BLDC Solar Pumping System
Farmland irrigation, residential water, landscape fountains, swimming pool water supply, desert management.
Specifications
| Power Range | 80W—1500W |
|---|---|
| Voltage | 24VDC, 36VDC, 48VDC, 72VDC, 110VDC |
| MPPT Controller | Protection Class IP55; Ambient Temperature：-15-60°C; LED displays working status & fault information; Auto Start/Stop; |
|---|---|
| Pump | High efficiency PMSM; NSK bearing; AISI304 oil chamber and pump barrel; |
| Solar Pump Inverter System | 3Inch 80W—1100W; Max. Flow 2.2m3/h; Max.Head 180m; |
| MPPT Controller | Protection Class IP55; Ambient Temperature: -15-60°C; LED displays working status & fault information; Auto Start/Stop; |
|---|---|
| Pump | High efficiency PMSM; NSK bearing; Cooper oil chamber and outlet; |
| Solar Pump Inverter System | 3Inch and 4Inch; 200W—1500W; Max.Flow 20 m3/h; Max.Head 136m; |
| MPPT Controller | Protection Class IP55; Ambient Temperature: -15-60°C; LED displays working status & fault information; Auto Start/Stop; |
|---|---|
| Pump | High efficiency PMSM; NSK bearing; AISI304 oil chamber & outlet; |
| Solar Pump Inverter System | 3Inch and 4Inch; 300W—1500W Max; Flow 40 m3/h; Max.Head 203m; |
Downloads
| File Name | Type | Language | File Type | Update | Download |
|---|---|---|---|---|---|
| SIxV Series BLDC Solar Pump System Catalog | Catalog | English | 2024-09-20 | 8.02MB | |
| Solar Water Pump Inverter Catalog | Catalog | English | 2024-03-07 | 5.16MB | |
| CE of SIxV Series BLDC Solar Pump System | Certificate | English | 2024-08-08 | 3.61MB | |
| SIxV Series BLDC Solar Pump System Manual V1.0 | Manual | English | 2022-01-27 | 4.58MB |
