Central Irrigation Solar Water Pump System
- Efficient Water Conservation.
- High Degree of Automation.
- Strong Adaptability.
- Environmentally Friendly and Energy-saving.
Features
- Features
- Specifications
- Downloads
- Solutions
- Cases
- News
- Related Products
- Additional Information
Central Irrigation Solar Water Pump System Overview
The central irrigation system can be integrated with solar water pump systems, using solar energy to power the pumps, thereby further enhancing the system's environmental friendliness and cost-effectiveness. In response to specific project requirements, VEICHI offers one - on - one customized central irrigation system services. Our technical personnel will provide you with the most cost - effective product configuration combinations to achieve the optimal input - output ratio.
Features and Advantages of Center Pivot Irrigation
- Efficient Water Conservation: By evenly distributing water, it reduces waste and increases the utilization rate of water resources.
- High Degree of Automation: The system can achieve automatic control, reducing human intervention and improving the precision and convenience of irrigation.
- Strong Adaptability: It can adapt to different terrains and soil types, suitable for farmland of various sizes.
- Environmentally Friendly and Energy-saving: When integrated with a solar water pump system, it reduces dependence on traditional energy sources, lowering operating costs and environmental pollution.
- Customized Service: VEICHI provides customized central irrigation system services to meet the specific needs of users. We will carry out product selection and system configuration for you based on your specific application scenarios.
Topology of Central Irrigation Solar Water Pump System

Components of Solar Powered Irrigation System
- Central Pivot: The central hub of the entire irrigation system, supporting the rotation of the sprinkler arms. The central pivot is usually installed at the center of the irrigation area to ensure that water is evenly distributed throughout the region.
- Sprinkler Arms: Attached to the central pivot, these arms move along a circular path and are equipped with multiple sprinkler heads, responsible for spraying water onto the crops.
- Sprinkler Heads: Installed on the sprinkler arms, these can be selected based on the needs of the crops and the type of soil to achieve the best irrigation results.
- Water Pump: Responsible for drawing water from the source and delivering it to the irrigation system. In a solar-powered central irrigation system, the pump is driven by solar energy.
- Solar Panels: Responsible for converting solar energy into electrical energy.
- Control Cabinet (Optional): Manage and optimize the operation of AC solar water pumping system, with protection features against dust, water, and rust.
- SI23 Solar Water Pump Inverter: Convert solar energy into electrical energy to power the pump.
- Control System: Used to monitor and control the operation of the irrigation system, including the regulation of water pressure, flow rate, and sprinkling speed.
Application Scenarios of Central Pivot Irrigation System
- Large-scale Agricultural Irrigation: Suitable for extensive farmland, orchards, pastures, etc., providing efficient water supply for crops.
- Arid Areas: In regions where water resources are relatively scarce, the Central Irrigation Solar Water Pump System can make rational use of limited water resources and improve irrigation efficiency.
- Economic Crop Cultivation: For crops with high water requirements, such as vegetables and flowers, the system can provide a stable water supply, promoting crop growth.

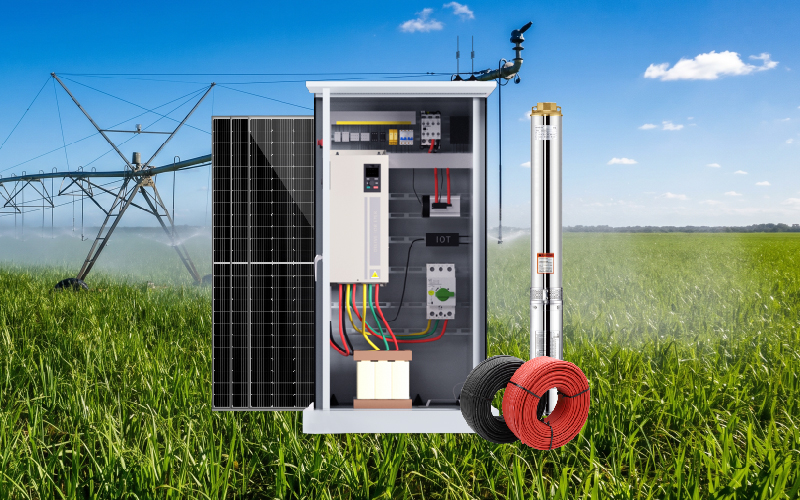

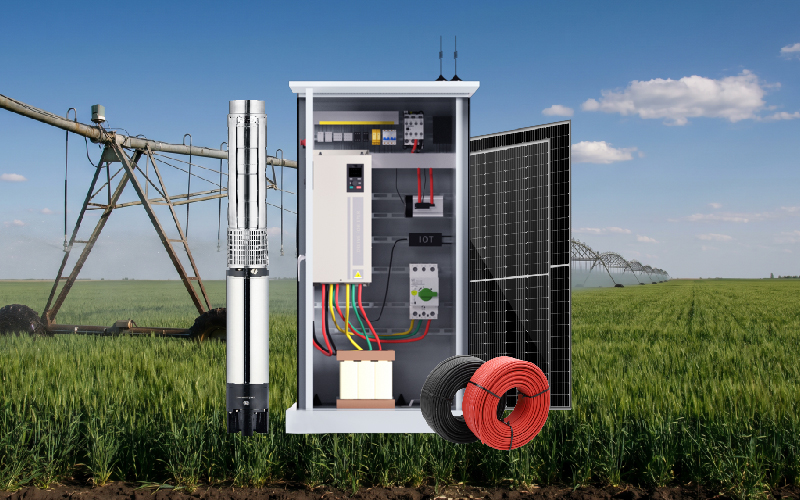

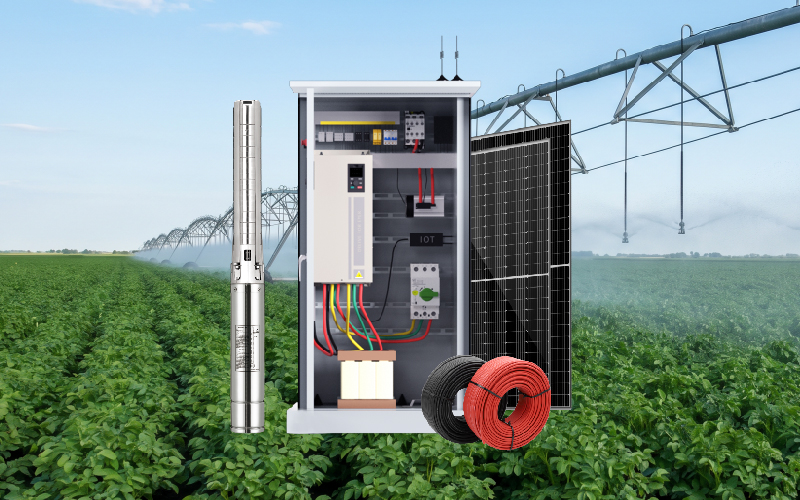

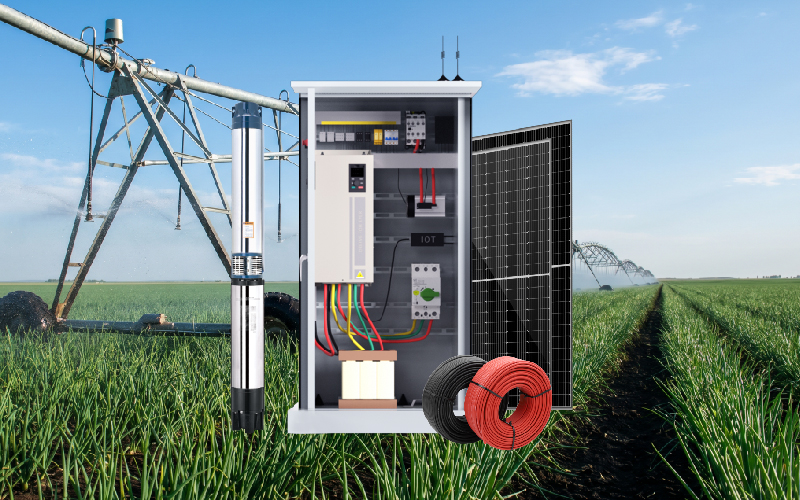

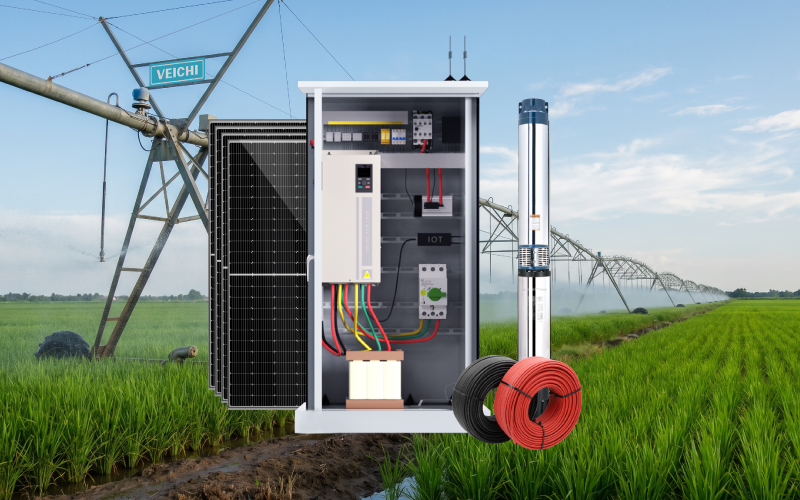

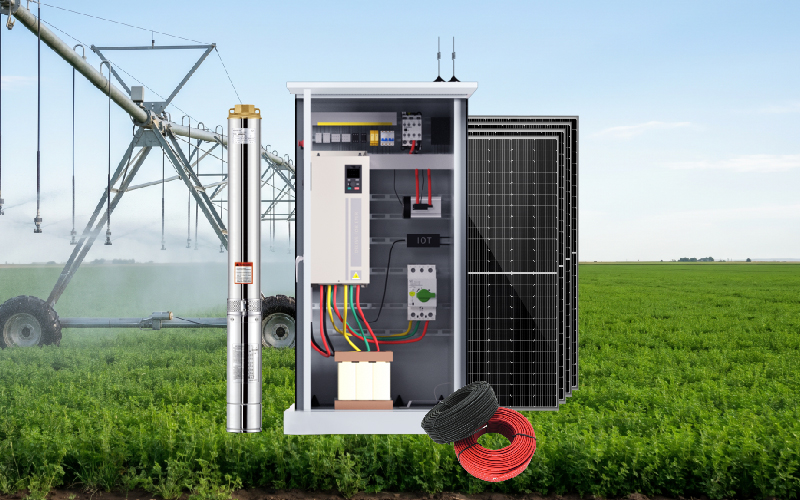

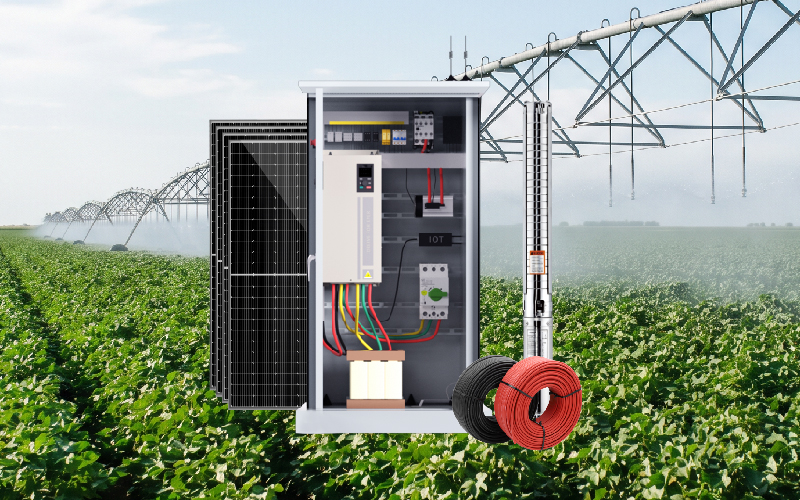

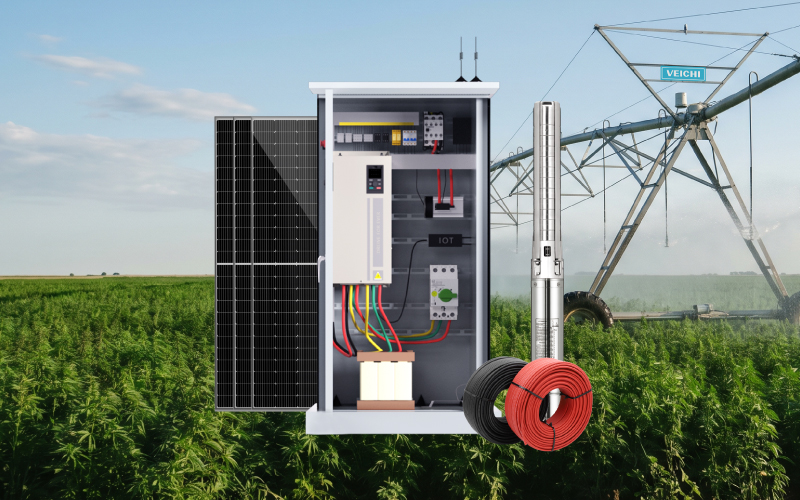

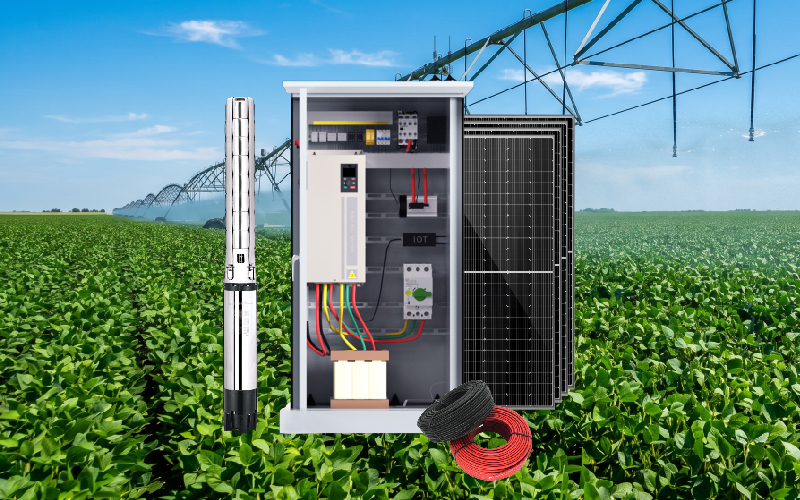

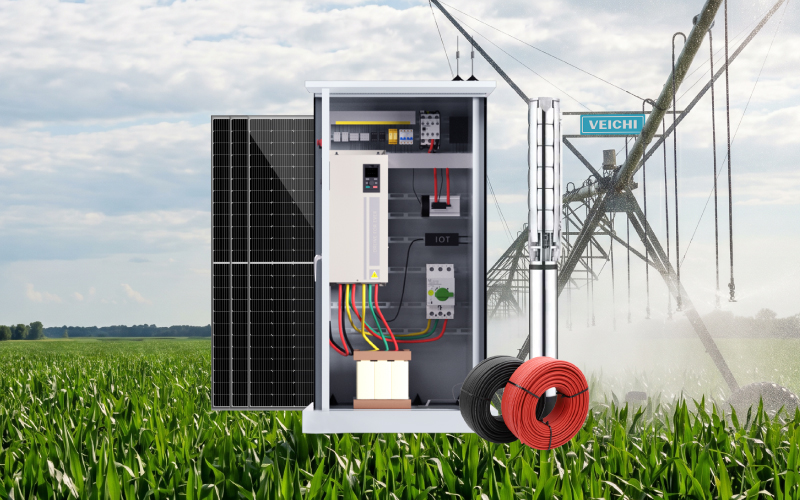

Customer Cases of Solar Powered Irrigation System

Specifications
Power Range | 750 W-710,000 W |
---|---|
Voltage and frequency | D1 model:90-400VDC/single-phase 110VAC 50/60HZ D3 model:150-450VDC/ single-phase 220VAC 50/60HZ D5 model:250-750VDC/ three-phase 380VAC 50/60HZ T3 model:350-780VDC/ three-phase 380VAC 50/60HZ |
Solar Pump Inverter | SI23-D1 Series, DC60-400VDC Input, 3 Phase 110-230VAC Output, Suitable for 110VAC Pump SI23-D3 Series, DC150V-450V Input, 3 Phase 220-240VAc Output SI23-D5 Series, DC250V to 780VDC Input, 3 Phase 380-460VAC Output SI23-T3 Series, DC350V to 780VDC Input,3 Phase 380-440VAC Output |
---|---|
Pump | Outlet diameter: 3-10" Head and flow rate are provided with selection services based on application requirements. |
Solar Panel | 400-700Wp |
Center Pivot Irrigation System | Main pipe size: 168mm, 219mm, wall thickness 3mm Span length: 62 meters, 56 meters, 50 meters for selection Crop static passing height: 2.9 meters (standard type), 4.6 meters (heightened type) Cantilever length: 24 meters, 18 meters, 12 meters, 6 meters and other lengths for choice Tire: 11.2x24/11.2x38/14.9x24/16.9x24 Nozzle: Nielsen D3000, R3000, etc. available |
