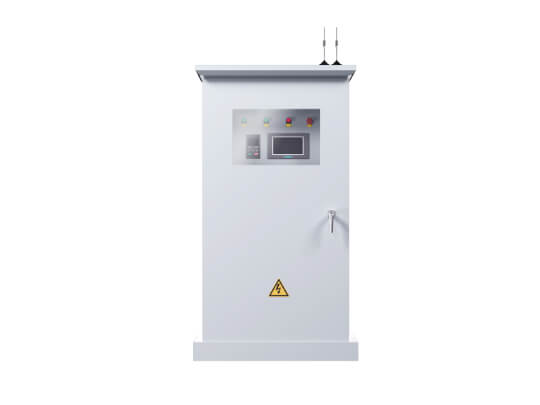

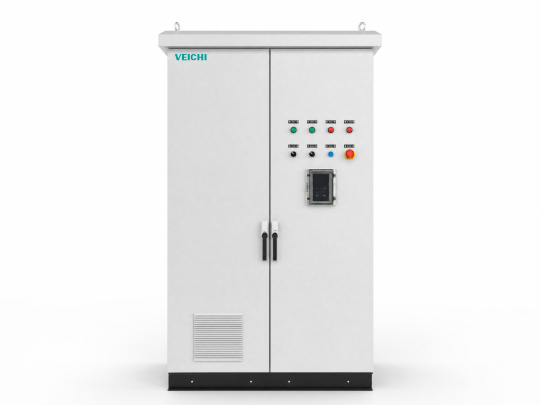

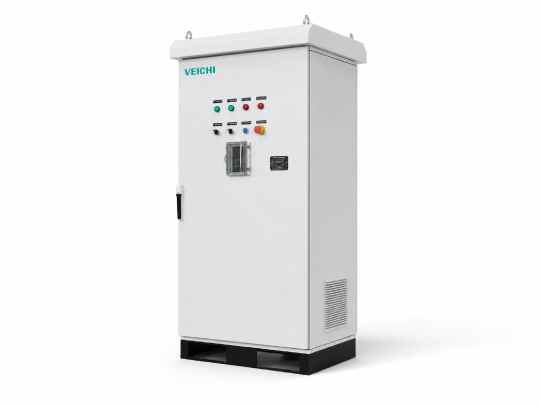

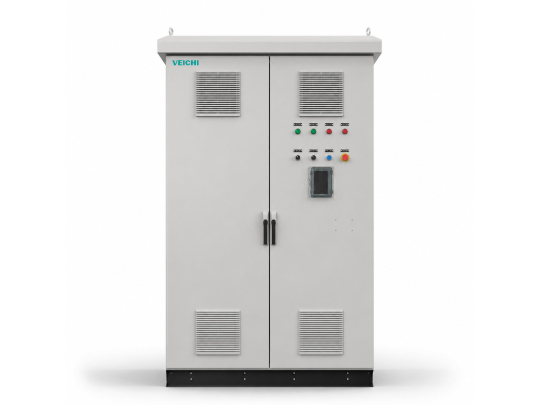

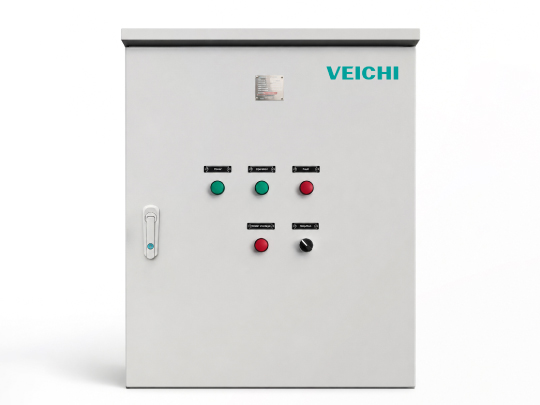

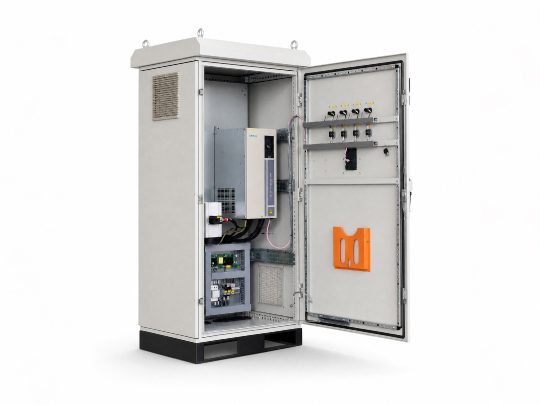

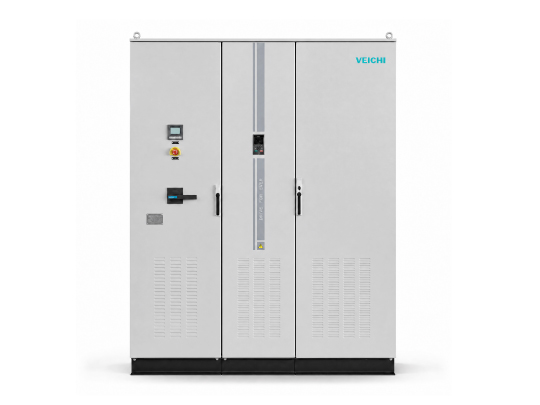

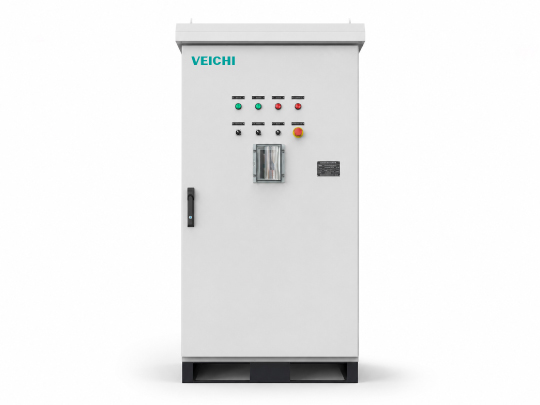

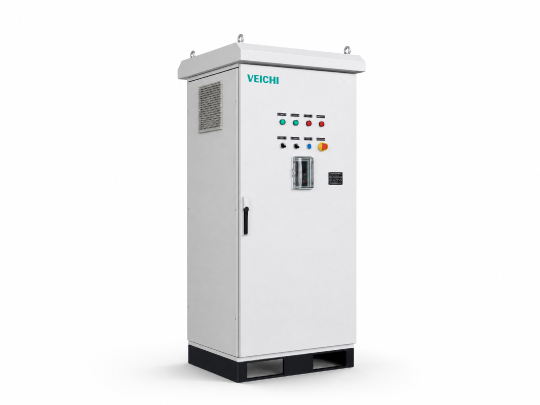

VEICHI SI23 Solar Pump System Cabinet

SI23 Series Solar Pump System Cabinet Overview

SI23 series solar pump system cabinet is a specially designed cabinet for housing VEICHI SI23 series solar pump inverter and related components. It integrates multiple functions and components to ensure the efficient, stable, and safe operation of solar pump systems. Suitable for outdoor use, it features waterproof and dustproof capabilities.

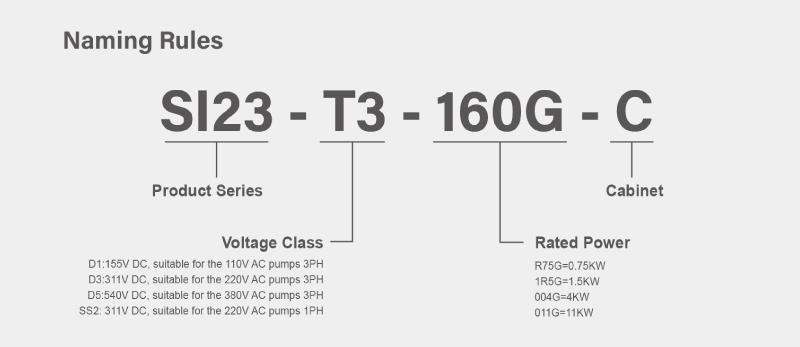

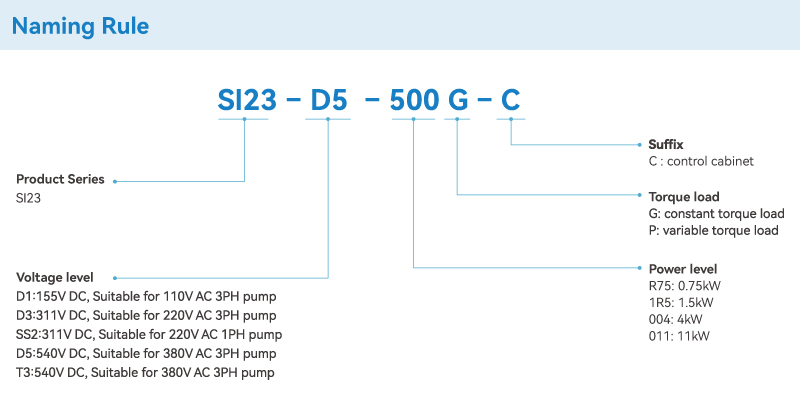

Naming Rule

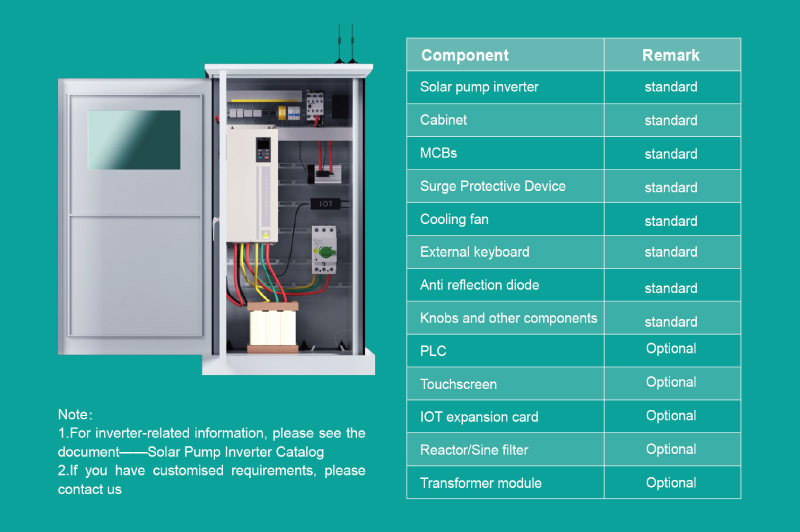

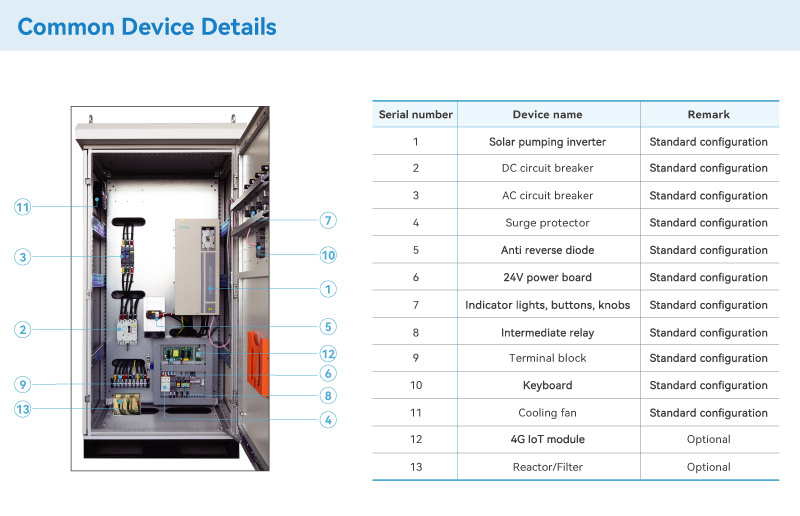

Standard Component

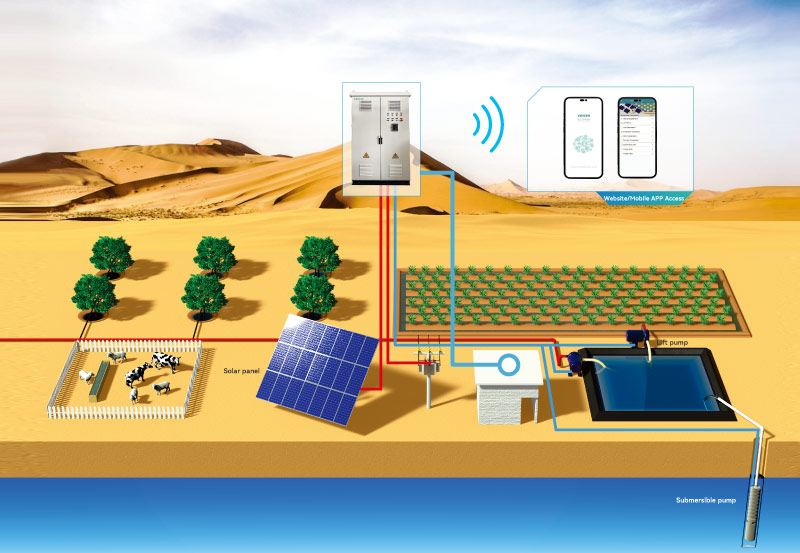

System Topology

Application Scenarios

Home Owners: Pump water for drinking, cooking and sanitation in and around the home. Gardens are irrigated and swimming pools are kept clean in a cost effective and sustainable way.
Farmers Agriculture: Irrigate crops without the need for grid power or cost of running generators. Livestock have drinking water, reliably wherever it is needed.
NGOs: Keep operational costs low while delivering water to communities and displaced people. Even emergency relief water needs can be met with solar water pumping.
Communities: Have their water needs met quietly and cleanly. The solution is sustainable, affordable and dependable allowing the community to prosper.

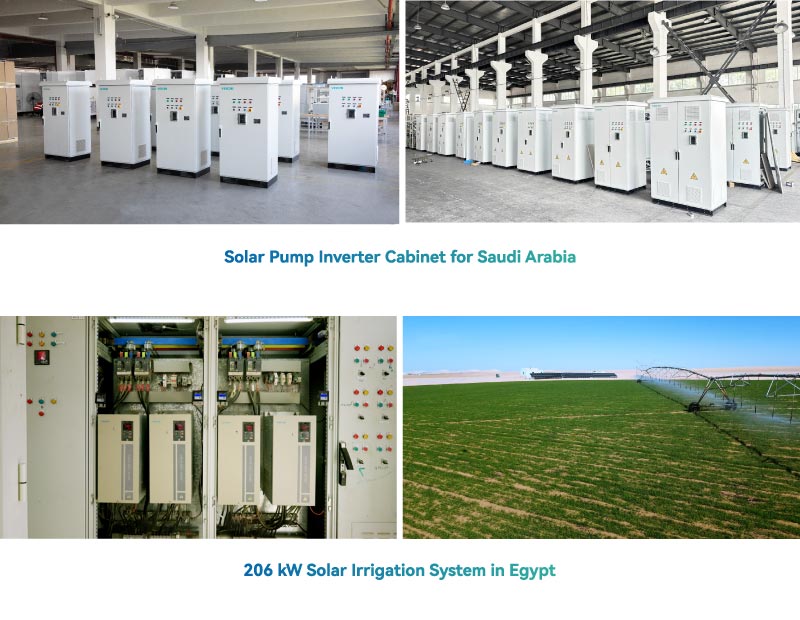

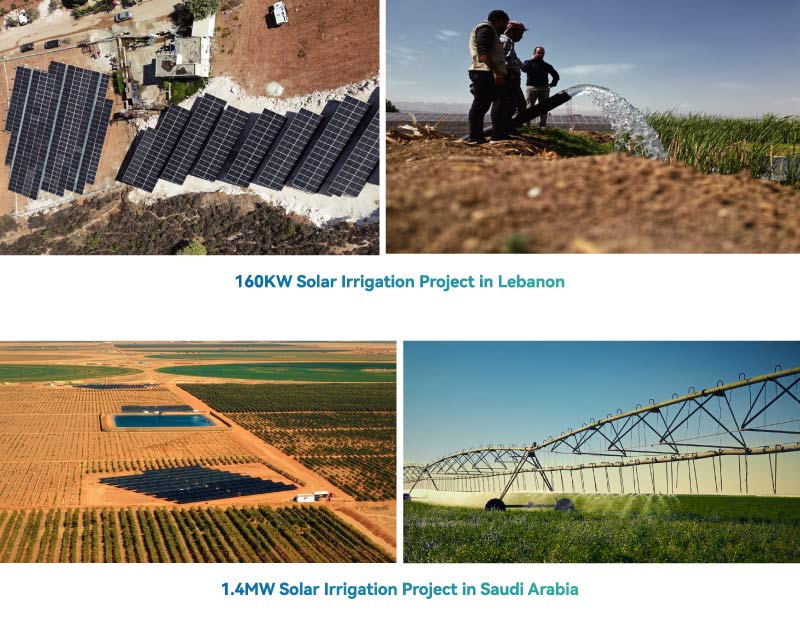

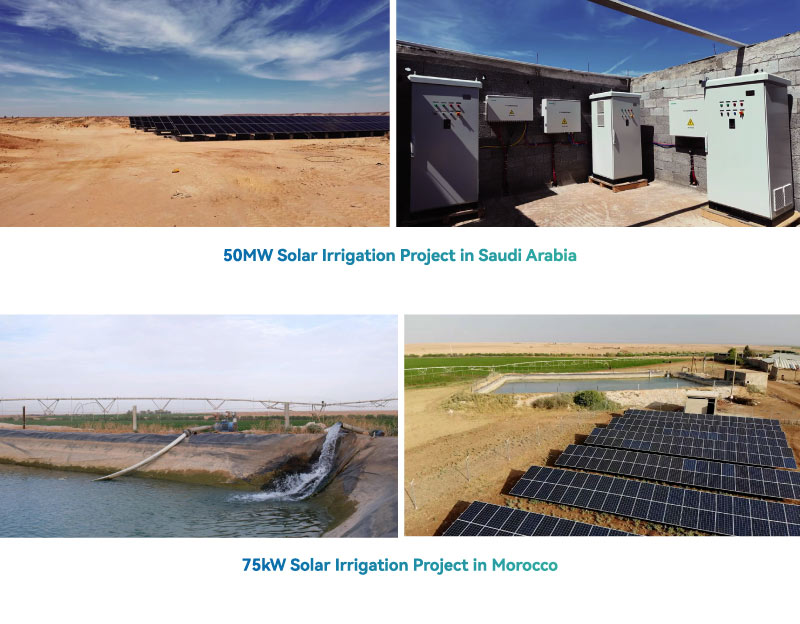

Application Cases

Specifications

Basic Parameters
Voltage Class	D1: 155V DC, suitable for the 110V AC pumps 3PH D3: 311V DC, suitable for the 220V AC pumps 3PH D5: 540V DC, suitable for the 380V AC pumps 3PH SS2: 311V DC, suitable for the 220V AC pumps 1PH
Related Power	0.75kW-11kW

Components
Standard	Solar Pump Inverter DC circuit breaker AC circuit breaker Surge protector Anti reverse diode 24V power board Indicator lights, buttons, knobs Intermediate relay Terminal block Keyboard Cooling fan
Optional	4G IoT module Reactor/Filter

Show more specifications Show less specifications

Downloads

File Name	Type	Language	File Type	Update	Download
Solar Pump System Cabinet Catalog	Catalog	English	PDF	2026-05-27	4.05MB
Water Fulfilled Submersible Pump Catalog V1.0	Catalog	English	PDF	2024-06-14	3.92MB
Water Fulfilled Submersible Pump Manual	Manual	English	PDF	2026-02-25	6.67MB
