  1. Home > Product > Motion Control > PLC > VH200 Series General Type PLC

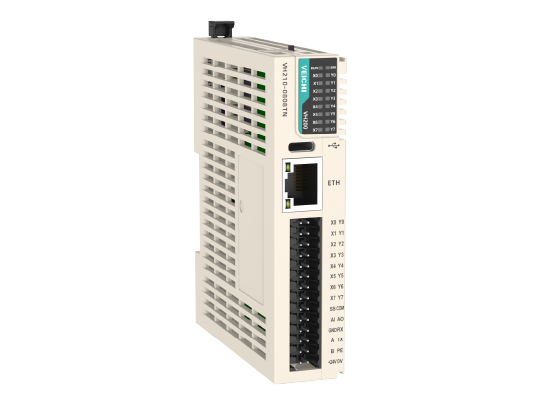

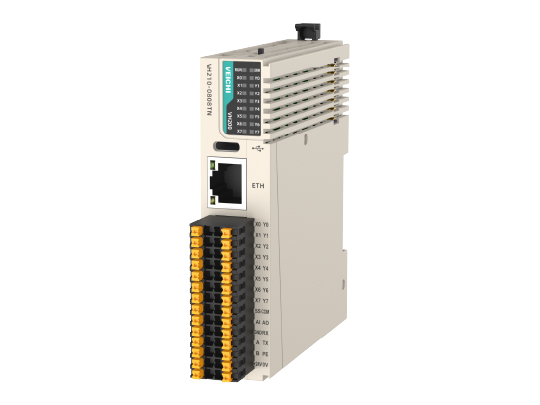

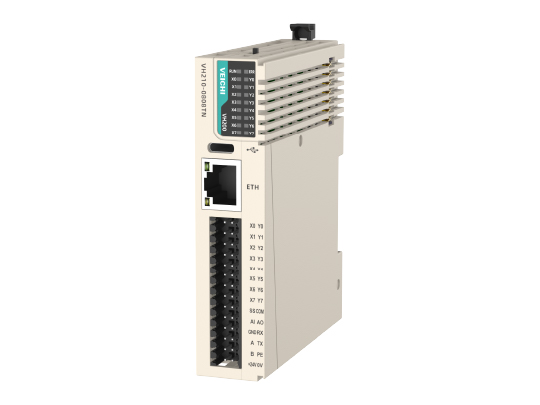

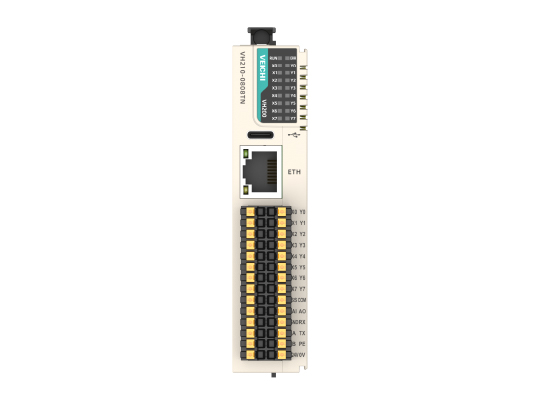

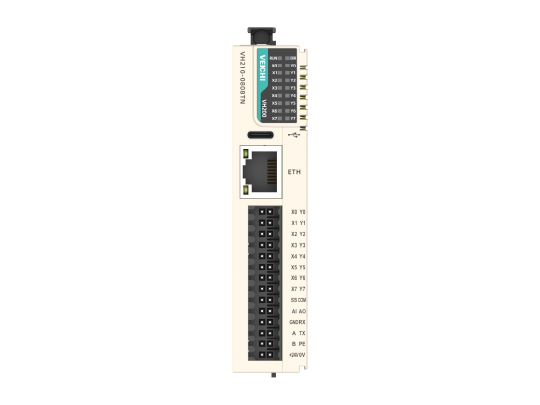

VH200 Series General Type PLC

  • Lightweight structure with flexible extensions.
  • I/O and analog extension modules available according to actual requirements.
  • Up to 16 right-side extension modules.
  • EtherNET, RS-232, RS-485, and other communication compatibility.
  • Some models standard with built-in analog I/O for flexible configuration.
Catalogue Contact support Email
  • Features
  • Specifications
  • Downloads
  • Solutions
  • Cases
  • News
  • Related Products
  • Additional Information

Product Features

Flexible Extensions

Slim and compact design with optional right extensions Analog/digital I/O control modules available for selection.

Communication & Connectivity

Built-in 1 × EtherNet, 1 × RS232, and 1 × RS485 for basic communication needs.

Built-in Analog I/O

1 × AD and 1 × DA for flexible configuration based on customer requirements.

Ultra-Slim Design

  • 24mm in thickness, ideal for space-constrained wiring scenarios.
  • Plug-and-play terminal blocks for easy maintenance.

Specifications


Item VH210-0808TN/P
VH210-0808TN/P1
Program capacity 32k steps
Data capacity 84kB for user soft components, about 20kB for power-down save
24kB for user-defined variables, about 8kB for power-down save
Local extension 16 right extension modules; left extension cards not supported
Real-time clock NO
Programming language Proprietary software Auto Studio with LD, FBD, SFC
Ethernet Modbus-TCP Master/Slave: Former with 6 slaves max; and latter for 4 masters max. TCP free protocol with 4 connections
Show more specifications Show less specifications

Downloads

File Name Type Language File Type Update Download
VH Series Compact PLC Catalog Catalog English PDF 2026-03-09 icon-download 6.31MB
