  1. Home > Product > Motion Control > PLC > VTC Series Temperature Controller

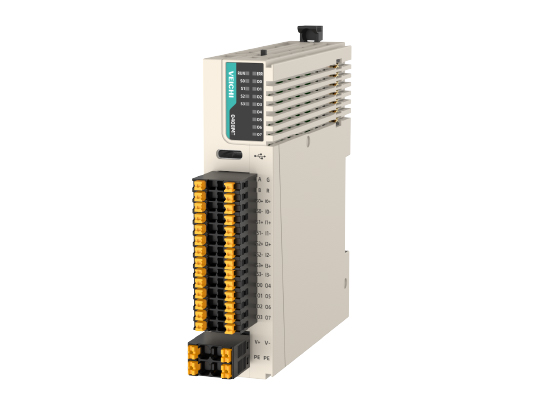

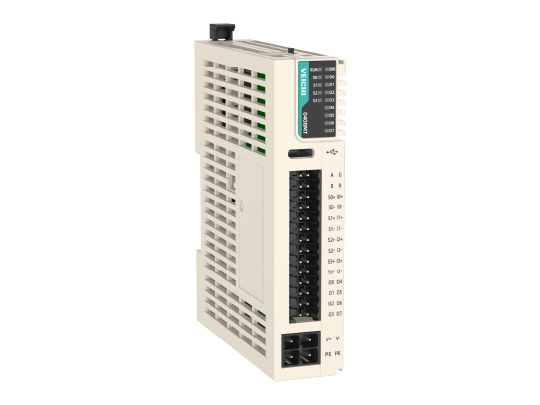

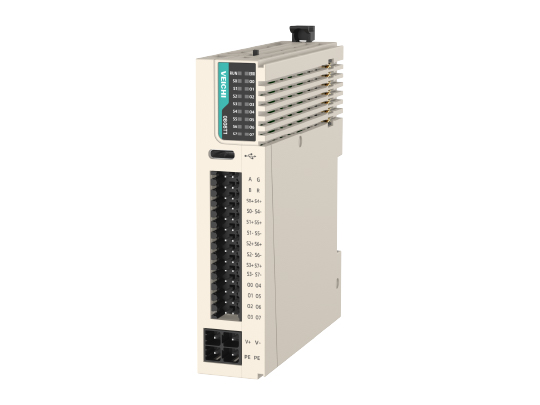

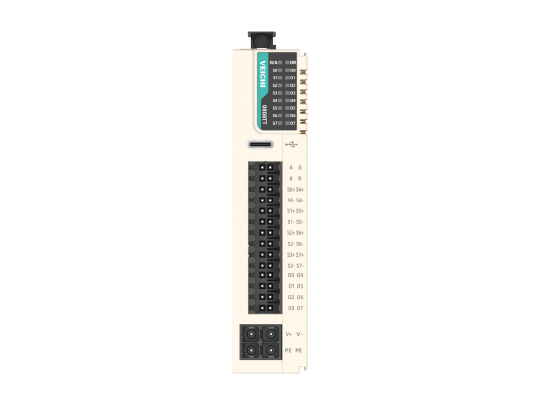

VTC Series Temperature Controller

  • A new-generation multi-channel high-precision temperature control product.
  • 8×high-speed, high-accuracy sampling and multi-loop PID regulation.
  • Suitable for various temperature control applications.
  • Compatible with thermocouples and RTDs for high measurement accuracy.
  • Integrated multi-channel digital output with rich functionality for user convenience.
Catalogue Contact support Email
  • Features
  • Specifications
  • Downloads
  • Solutions
  • Cases
  • News
  • Related Products
  • Additional Information

Product Features

Dedicated Debugging Software

Proprietary self-developed PC software for easy user configuration.

Multi-channel Temperature Control

Integrated multi-channel temperature control with centralized data management in the PC software.

Convenient Communication

Supports RS485 and USB communication, enabling seamless data exchange between the temperature controller and other devices or PC software.

Precision Control

Auto-tuning and multi-segment temperature setting functions ensure high-precision temperature control.

Specifications


Item VTC-0408MT
VTC-0808TT
AI Thermocouple: K , J , E , N , T , R , S , B
RTD:
VTC-0408MT: PT100 , PT1000 , Cu100 , JPt100 , Cu50 , Ni120
VTC-0808TT: NO
DO Output type: 8×NPN, loop supply voltage: 5V~24V; loop current: 0.3A/24VDC
Response time: <0.5ms
Sampling cycle Depends on valid input and control channels, min. 60ms, max. 400ms
Control cycle Depends on control object, min. 100ms
Control mode PID control, ON/OFF control, manual control
Temperature measurement range -200℃~1800℃
Show more specifications Show less specifications

Downloads

File Name Type Language File Type Update Download
VH Series Compact PLC Catalog Catalog English PDF 2026-03-09 icon-download 6.31MB
