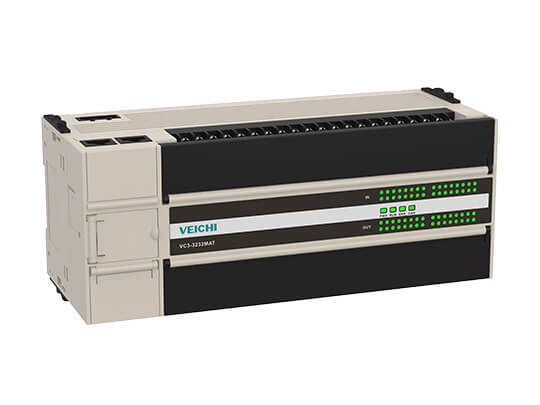

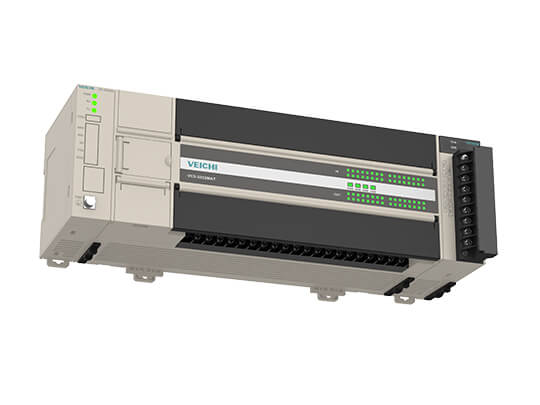

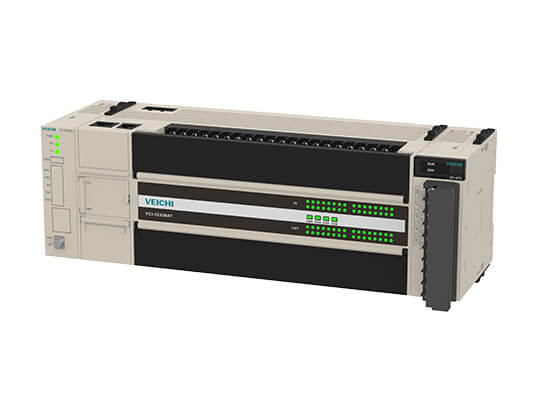

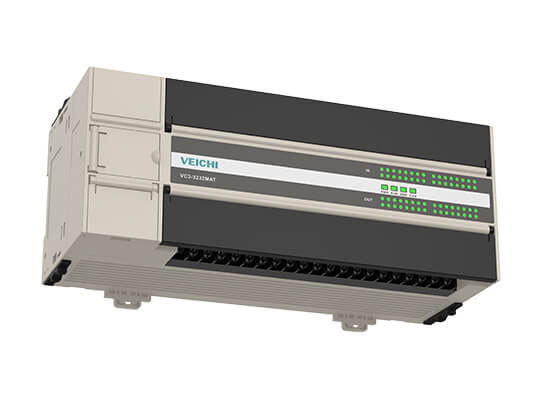

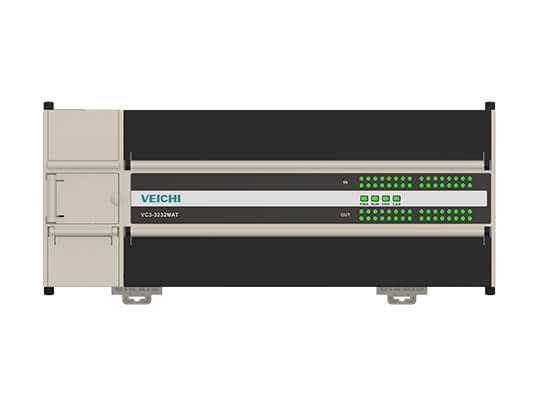

VC5 Series High Performance PLC
- Supports 32 real axes and 32 to 64 imaginary axes with powerful motion control.
- User program space supports 200K steps.
- 8 channels of 200kHz high-speed input counting and 8 channels of 200kHz high-speed output.
- RS485, CAN, Ethernet and EtherCAT, the interface can realize multi-level network communication.
- Related Products
- Additional Information
VC5 series EtherCAT bus high performance PLC overview
VC5 series PLC is a new generation of bus high-performance PLC developed by VEICHI. Using dual-core architecture technology, it has powerful motion control capabilities, the fastest communication cycle is 250μs, and the synchronization time accuracy is ±80ns. EtherCAT bus motion control of up to 32 real axes can be realized. It can meet the requirements of belt shaft capacity and strict cost control requirements, reducing the pressure on manufacturing.
1. Supports 32 real axes and 32 to 64 imaginary axes.
2. User program space supports 200K steps.
3. 8 channels of 200kHz high-speed input counting and 8 channels of 200kHz high-speed output.
4. RS485, CAN, Ethernet and EtherCAT, the interface can realize multi-level network communication.
Support 32-axis EtherCAT bus motion control
Advanced industrial Ethernet support, distributed operation of master and slave stations, convenient installation and shortened information transmission cycle. The communication speed is fast, the synchronization time is short, and the operation control modes such as straight line, arc and cam are supported.
Support CanOpen protocol
Supports CanOpen master, slave and CAN free protocol (301/402 protocol).
Realize multi-level network communication
VC5 supports EtherCAT, Ethernet (Modbus-TCP, TCP/IP), CANopen, RS485 (Modbus, free protocol), RS232, Type-C. Support the N:N protocol independently developed by VEICHI. Multi-level network communication can be realized. In the occasions where there is information interaction with servo, vision, robot, code scanning gun, MES, etc., it brings all-around efficiency improvement for manufacturing.
Support electronic cam and electronic gear function
Linear interpolation, circular interpolation
8 high-speed counting inputs, 8 high-speed pulse outputs
Support single-phase, dual-phase (Up/Down), AB-phase counting. It supports 4 multiplier counting, a high-speed counter supports 8 channels for single-phase, the highest frequency is 200kHz, and dual-phase supports 4 channels, and the highest frequency is 200kHz.
Provides 8 high-speed pulse outputs with an output frequency of 200kHz. Supports positioning control instruction group, which is convenient for users to implement motion control applications.
The CPU module provides 1 RS232 and 1 RS485 serial communication port, named COM0 and COM1 respectively, and the maximum communication bit rate is 115.2k. COM0 port can be used as a programming port and also supports Modbus RTU slave protocol. COM1 supports Modbus RTU master/slave protocol, accessible communication, N:N protocol, built-in terminal resistance, and can be dialed.
Brand new PC programming software
Multiple programming languages are switched, and open programming is easier to manipulate.
1. Support multiple programming languages and their mutual conversion.
2. Quickly set complex command parameters.
3. Support function block programming.
4. LD, SFC, FB function block instructions and other programming methods.
5. Automatically generate and execute subroutines.
6. Support oscilloscope function debugging.
7. Historical fault record function.
VC5 series EtherCAT bus high performance PLC video
|Basic command speed||0.065μs|
|High speed input||8 chanels*200kHz|
|High speed output||8 chanels*200kHz|
|Digital filtering||X0～X7 adopt settable digital filter|
|Power-down storage||48K words|
|COM serial communication||Two-way communication port
|USB||Support USB-Type-C interface|
|CANopen||Built-in CAN communication port
(The master station supports a maximum of 64 configurations, and the slave station supports a maximum of 8 PDOs)
|Ethernet||Built-in Ethernet communication port
Program upload and download, Modbus-TCP
Supports up to 16 slave connections
|Left communication extension type||Support 1 channel RS-485 expansion|
|Right expansion module type||A maximum of 15 modules are supported, of which a maximum of 8 special modules are supported|
|Positioning command||Added multiple types of positioning functions|
|Real time clock||Support|
|S-curve acceleration and deceleration||Support|
|Interpolation command||Support two-axis linear and two-axis circular interpolation|
|Electronic cam||Support 4-axis electronic cam|
|Flying shear/flying shear non-standard||Support 4-axis flying shear/flying shear|
