  1. Home > Product > Solar Pump System >  AC Solar Water Pump > VWF Series Stainless Steel Submersible Pump

VWF Series Stainless Steel Submersible Pump

  • High efficiency submersible water fulfilled motor.
  • Maximum submergence depth 70m.
  • Water PH Value: 6.5-8.5.
Catalogue Contact support Email
  • Features
  • Specifications
  • Downloads
  • Solutions
  • Cases
  • News
  • Related Products
  • Additional Information

VWF Series Stainless Steel Submersible Pump Product Overview

The stainless steel submersible pump adopts mature advanced production technology and reliable quality control system,featuring compact structure,excellent performance,high efficiency and energy saving,and convenient to use and install. Mainly used for deep well water intake, agricultural irrigation, urban garden construction and other clean water delivery places.

Operation Environment

  • Liquid Temperature: 25°C (standard), 45°C and 90°C for optional
  • PH Value: 6.5-8.5
  • Maximum submergence depth 70m

Motor Specifiction

  • High Efficiency Submersible Motor
  • Motor Manufacturer Based Advanced Technology and Reliable Quality Assurance System
  • NEMA Industrial Installation Standards

Water Fulfilled Motor

  • Power Input 350-400V/50Hz
  • Power Range: 2.2kw-110kW variable frequency Motor
  • Variable Frequency Motor

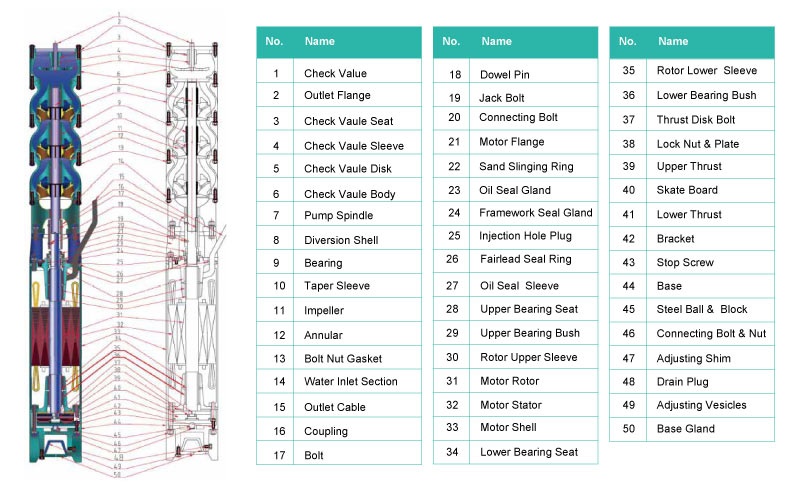

Motor Structure

Motor Structure

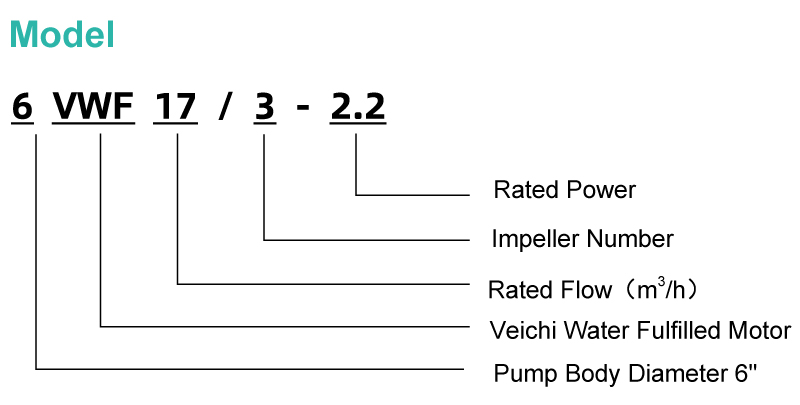

Naming Rule

Naming Rule



Specifications

Basic Information
Power Range 2.2-110 kW
Pump Body Size 6/8/10 Inch

Outlet Size

 3/4/5/6 Inch

Max. Flow

 30-320 m³/h

Max. Head

13-548 m
Show more specifications Show less specifications

Downloads

File Name Type Language File Type Update Download
Water Fulfilled Submersible Pump Catalog V1.0 Catalog English PDF 2024-06-14 icon-download 3.92MB

Solutions

Agricultural Irrigation

Agricultural Irrigation

Solar water pumping system can be widely used in agricultural farm irrigation, drip irrigation, sprinkler irrigation, center pivot Irrigation etc., it is more environmentally friendly, energy-saving and water-saving.

Drinking Water Supply

Drinking Water Supply

Solar powered pump technology brings more convenient and cleaning solution for drinking water supply in rural village.
Solar Aerator

Solar Aerator

Solar aerator system is suitable for aquaculture, and fish pond oxygen. In the practice of water body restoration, it has obvious effects on water body reoxygenation and water body circulation.
Livestock Watering

Livestock Watering

VEICHI solar powered pump system for livestock watering is an efficient and sustainable solution designed to provide a reliable water supply for livestock in remote or off-grid locations.

Alfalfa Irrigation

Alfalfa Irrigation

Grow healthier alfalfa with VEICHI’s water-saving center pivot and linear irrigation systems. Improve irrigation efficiency, reduce water waste, and maximize crop yield.
Soybean Irrigation

Soybean Irrigation

VEICHI offers precision center pivot irrigation – matching soybean requirements, soil types, topography & water quality. Maximize yield potential. Custom plan available.
Wheat Irrigation

Wheat Irrigation

Cut water waste while boosting wheat yields with VEICHI center pivot systems. Enhance irrigation efficiency for healthier wheat. Smart, sustainable farming.
Corn Irrigation

Corn Irrigation

Reduce water waste & maximize corn yield with VEICHI center pivot systems. Improve irrigation efficiency for healthier maize. Sustainable & smart.
Cotton Irrigation

Cotton Irrigation

Maximize cotton yield with efficient irrigation solutions. Reduce water waste, improve efficiency, and grow healthier alfalfa & cotton with VEICHI center pivot systems.
Potato Irrigation

Potato Irrigation

Center pivot potato irrigation: boost yields, cut water use by 30%, and ensure uniform quality. Perfect for large-scale growers.

Onion Irrigation

Onion Irrigation

Center pivot irrigation for onions delivers higher yields, reduces water waste by up to 30%, and ensures consistent bulb quality, making it ideal for commercial onion production.
Sugarcane Irrigation

Sugarcane Irrigation

Maximize sugar yield with center pivot irrigation for sugarcane. Efficient, reliable, and scalable – sugarcane center pivot systems outperform traditional flooding.

Cases

4kW Solar Powered Center Pivot Irrigation System in India

4kW Solar Powered Center Pivot Irrigation System in India

Agricultural Irrigation
75kW Solar Water Pumping for Center Pivot Irrigation System in Moroccoo

75kW Solar Water Pumping for Center Pivot Irrigation System in Moroccoo

Agricultural Irrigation
45kW Solar Center Pivot Irrigation System in Aswan, Egypt

45kW Solar Center Pivot Irrigation System in Aswan, Egypt

Agricultural Irrigation
